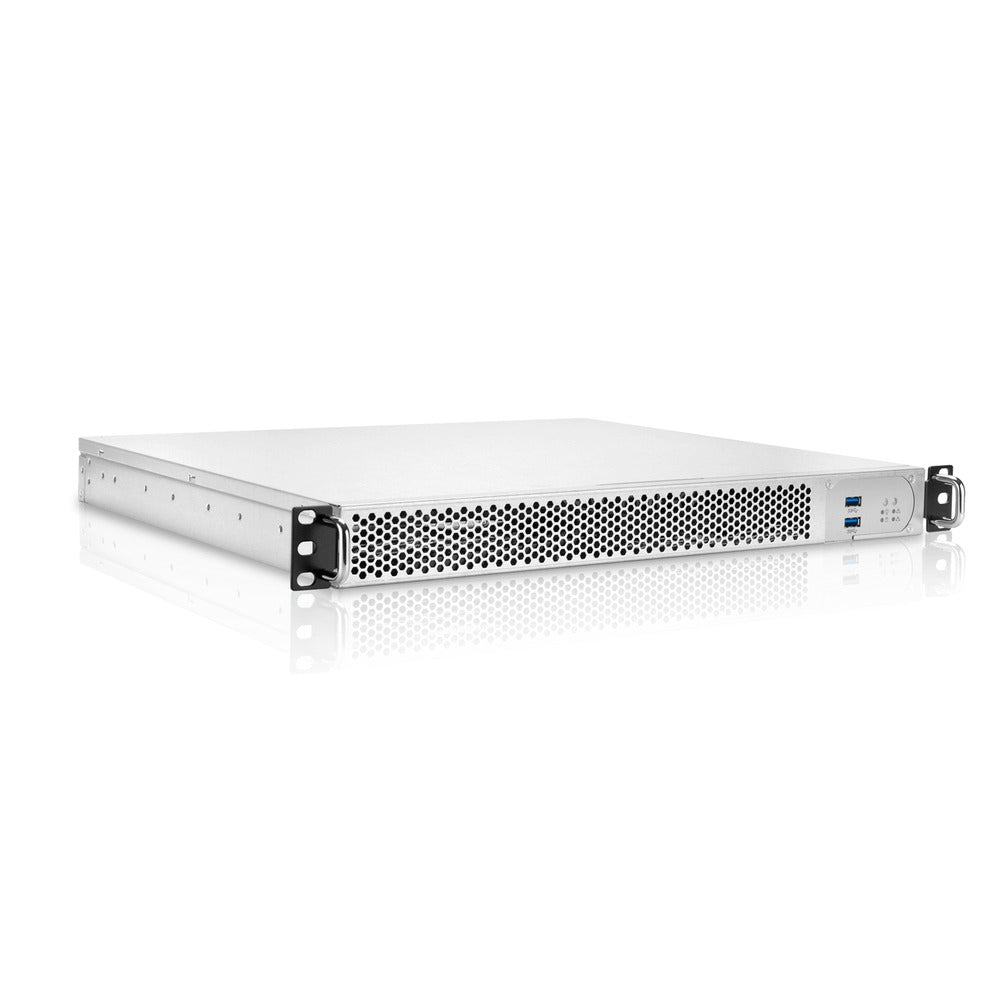

MITXPC Short Depth 1U Rackmount Server, Dual LAN, Intel RST RAID, PCIe

Product ID	RFS-PH13FEI-RF100
CPU	Supports Intel 8th/9th Gen (Coffee Lake) Core Processors Socket LGA1151 Max 95W TDP
Chipset	Intel Q370
Memory	2 x DDR4-2666MHz Slots Maximum 32GB Capacity Non-ECC, Unbuffered
Video	Intel HD Graphics (CPU Dependent) HDMI Max Resolution: 4096x2160@30Hz DisplayPort Max Resolution: 4096x2304@60Hz LVDS Max Resolution: 1920x1200@60Hz eDP Max Resolution: 4096x2304@60Hz
Audio	Realtek ALC662 HD Audio
Storage Technology	4 x SATA3 6Gb/s Connectors RAID 0, 1, 5, 10 Support via Intel RST 1 x M.2 2260/2280 M Key slot (PCIe or SATA)
Connectivity	1 x Intel i219-LM GbE LAN 1 x Intel i211-AT GbE LAN
Expansion	1 x PCI-E 3.0 x16 slot (riser card required) 1 x M.2 2230 E Key slot (PCIe, USB 2.0)

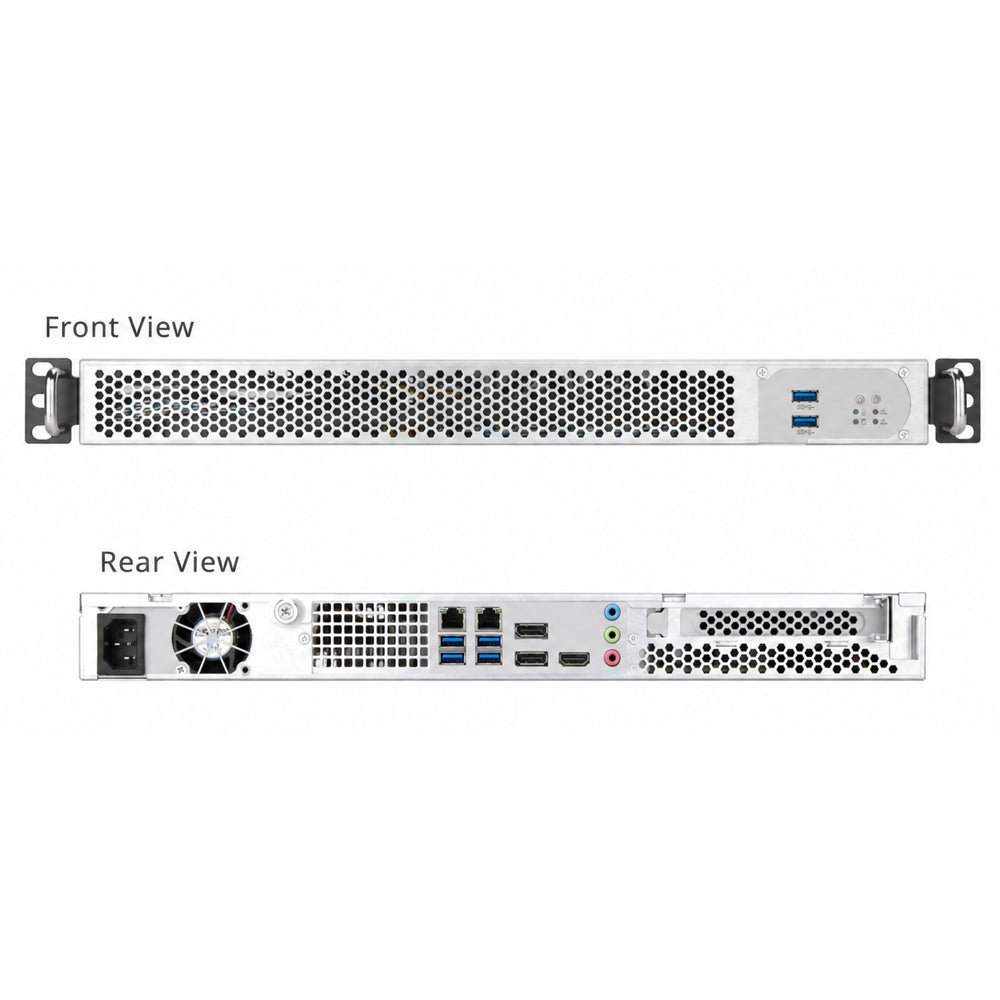

Rear I/O	2 x RJ45 GbE LAN 4 x USB 3.1 (Gen2) 2 x DisplayPort 1 x HDMI 3 x Audio I/O
Front Panel I/O	1 x Power Switch 1 x Reset Button 3 x Status LED 2 x USB 3.0
Drive Support	2 x 2.5" Internal Drives and 1 x 3.5" or 1 x 2.5" Internal Drive 1 x M.2 2260/2280 M Key slot (PCIe or SATA)
Power Supply	315W 80+ Gold Flex Power Supply
Cooling	3 x 40x28mm Case Fans
Case Dimensions	365.9 x 430 x 43.5 mm 14.41" x 16.93" x 1.71" (in inches)
Warranty	1 Year Manufacturer's Limited Warranty
