| Product ID |
RFS-PH13FEI
|
| CPU |
Supports Intel 8th/9th Gen (Coffee Lake) Core Processors
Socket LGA1151
Max 95W TDP
|
| Chipset |
Intel Q370
|
| Memory |
2 x DDR4-2666MHz Slots
Maximum 32GB Capacity
Non-ECC, Unbuffered
|
| Video |
Intel HD Graphics (CPU Dependent)
HDMI Max Resolution: 4096x2160@30Hz
DisplayPort Max Resolution: 4096x2304@60Hz
LVDS Max Resolution: 1920x1200@60Hz
eDP Max Resolution: 4096x2304@60Hz
|
| Audio |
Realtek ALC662 HD Audio
|
| Storage Technology |
4 x SATA3 6Gb/s Connectors
1 x M.2 2260/2280 M Key slot (PCIe or SATA)
|
| Connectivity |
1 x Intel i219-LM GbE LAN
1 x Intel i211-AT GbE LAN
|
| Expansion |
1 x PCI-E 3.0 x16 slot (Inaccessible)
1 x M.2 2230 E Key slot (PCIe, USB 2.0)
|

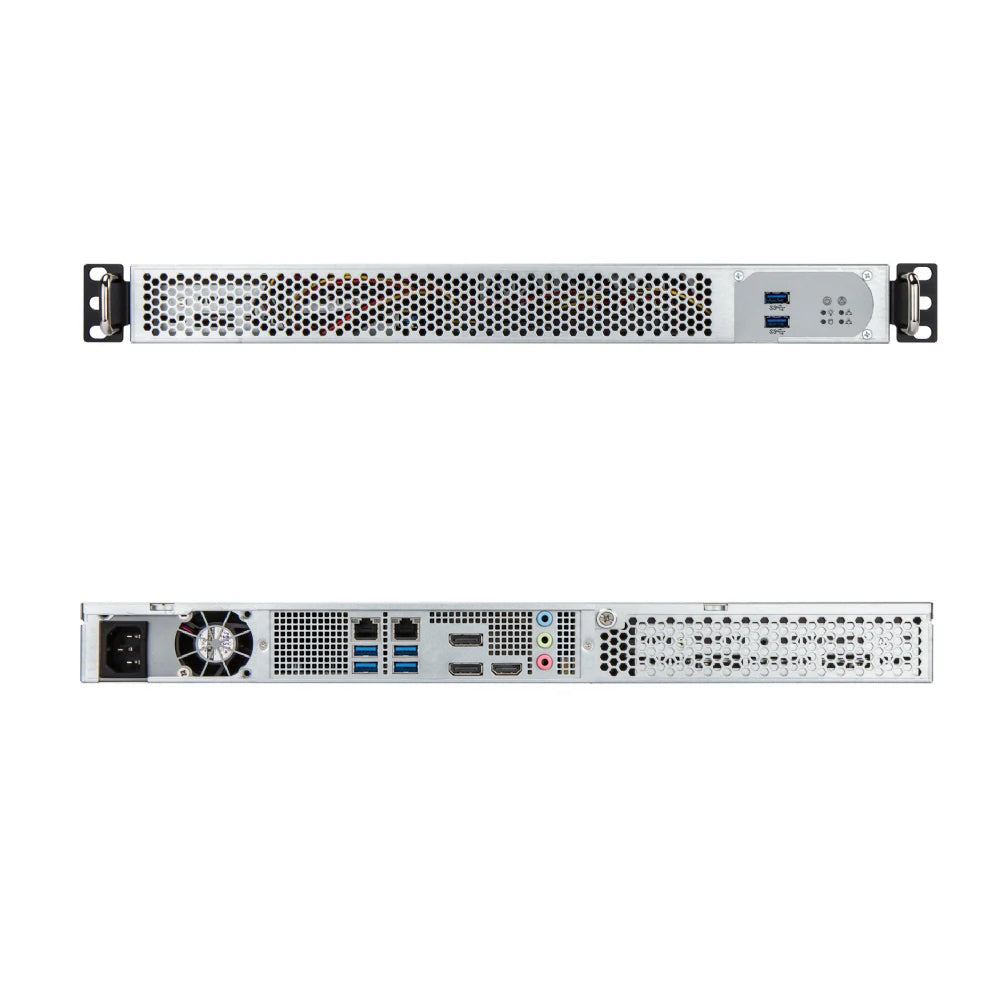

| Rear I/O |
2 x RJ45 GbE LAN
4 x USB 3.1 (Gen2)
2 x DisplayPort
1 x HDMI
3 x Audio I/O
|

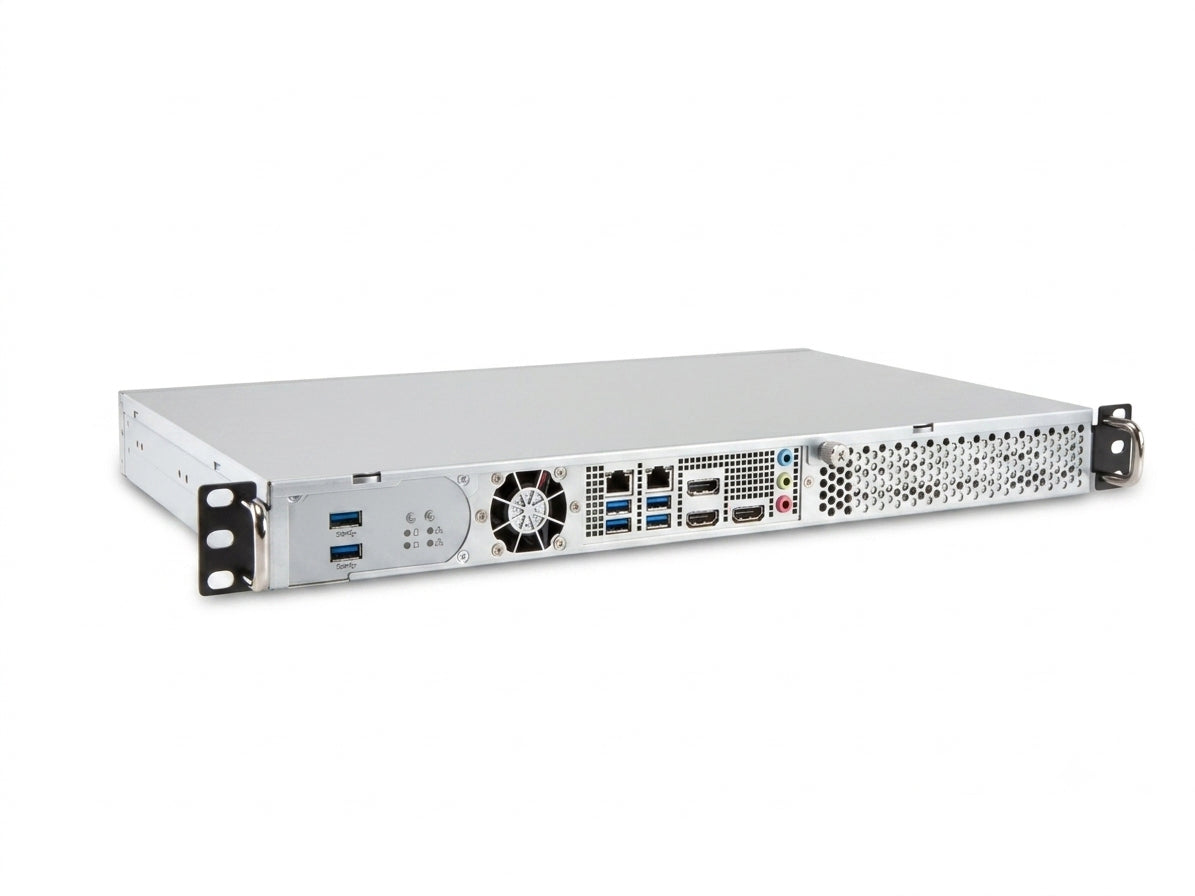

| Front Panel I/O |
1 x Power Switch
1 x Reset Button
3 x Status LED
2 x USB 3.0
|
| Drive Support |
2 x 2.5"/3.5" SATA Drive Bays
1 x M.2 2260/2280 M Key slot (PCIe or SATA)
|
| Power Supply |
265W 80+ Bronze Power Supply
47-67Hz, 100V-240V
|
| Cooling |
Supports 3 x 40x20mm Case Fans
|
| Case Dimensions |
250 x 430 x 43.5 mm
9.84" x 16.93" x 1.71" (in inches)
|
| Warranty |
1 Year Manufacturer's Limited Warranty
|
