| Manufacturer |
GigaIPC |
| Product ID |
QBiX-RPLA1355H-A1 |
| CPU |
Intel Core i7-1355U Processor
2 P-Cores / 8 E-Cores / 12 Threads
Up to 5.0 GHz
Intel 7 Process, 10 Cores
|
| Chipset |
SoC |
| Memory |
2 x DDR5 SO-DIMM slots
Maximum 64GB Capacity
5200 MHz
Dual Channel |
| Video |
Intel Iris Xe Graphics
2 x HDMI 2.0 Max Resolution: 4096x2160@60Hz
1 x DP 1.4 via USB Type-C (DP Alt Mode) Max Resolution: 7680x4320@30Hz
Supports 3 Independent Displays
|
| Audio |
Realtek ALC269
|
| Storage Technology |
1 x 2.5" SATA 6Gb/s Drive Bay
1 x M.2 2280 slot (PCI-E Gen4 x4 or SATA, M-Key)
|
| Connectivity |
1 x Intel I226V 2.5GbE LAN
1 x Realtek RTL8111H GbE LAN
|
| Expansion Slots |
1 x M.2 2280 slot (PCI-E Gen4 x4, SATA, M-Key)
1 x M.2 2230 slot (PCI-E x1, USB 2.0, E-Key)
|

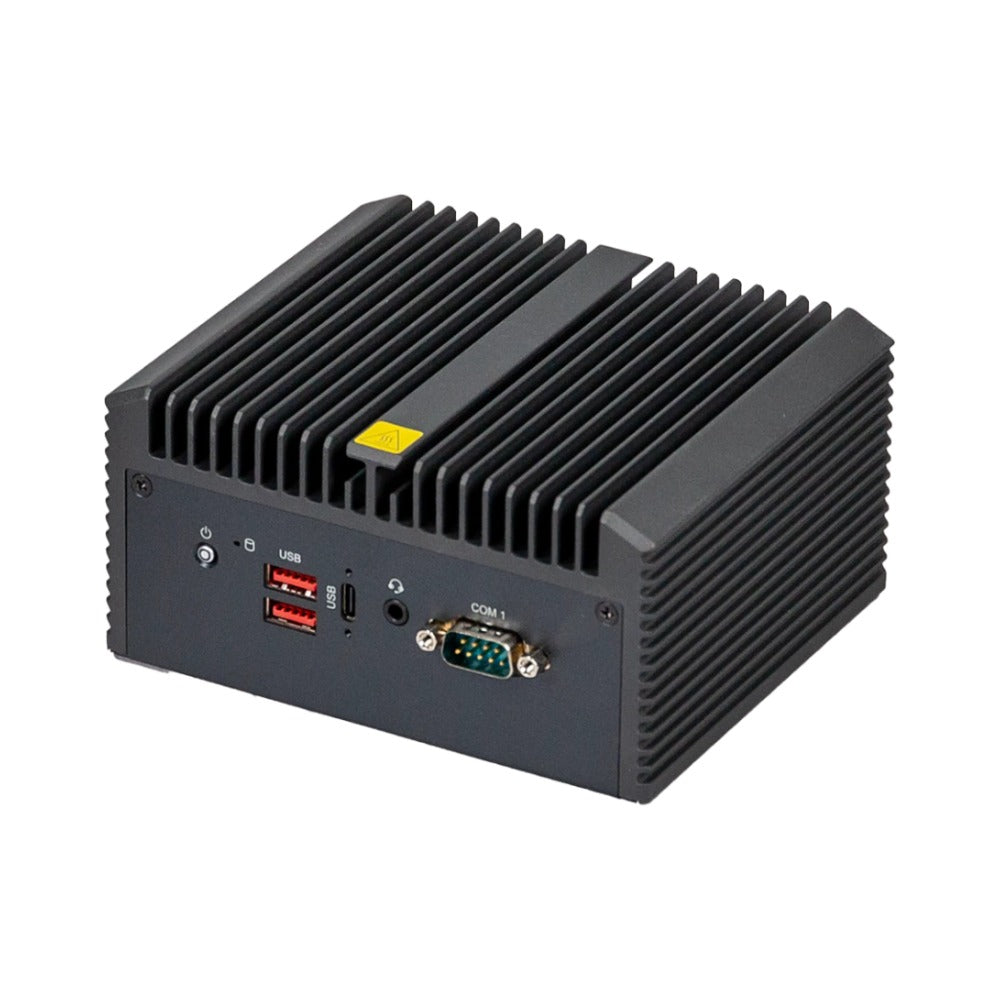

| Front Panel I/O |
2 x USB 3.2 (Gen2x1)
1 x USB 3.2 Type-C with DP 1.4b (DP Alt Mode)
1 x Power Button with LED
1 x HDD LED
1 x COM (RS232/422/485)
1 x Combo Audio Jack
|

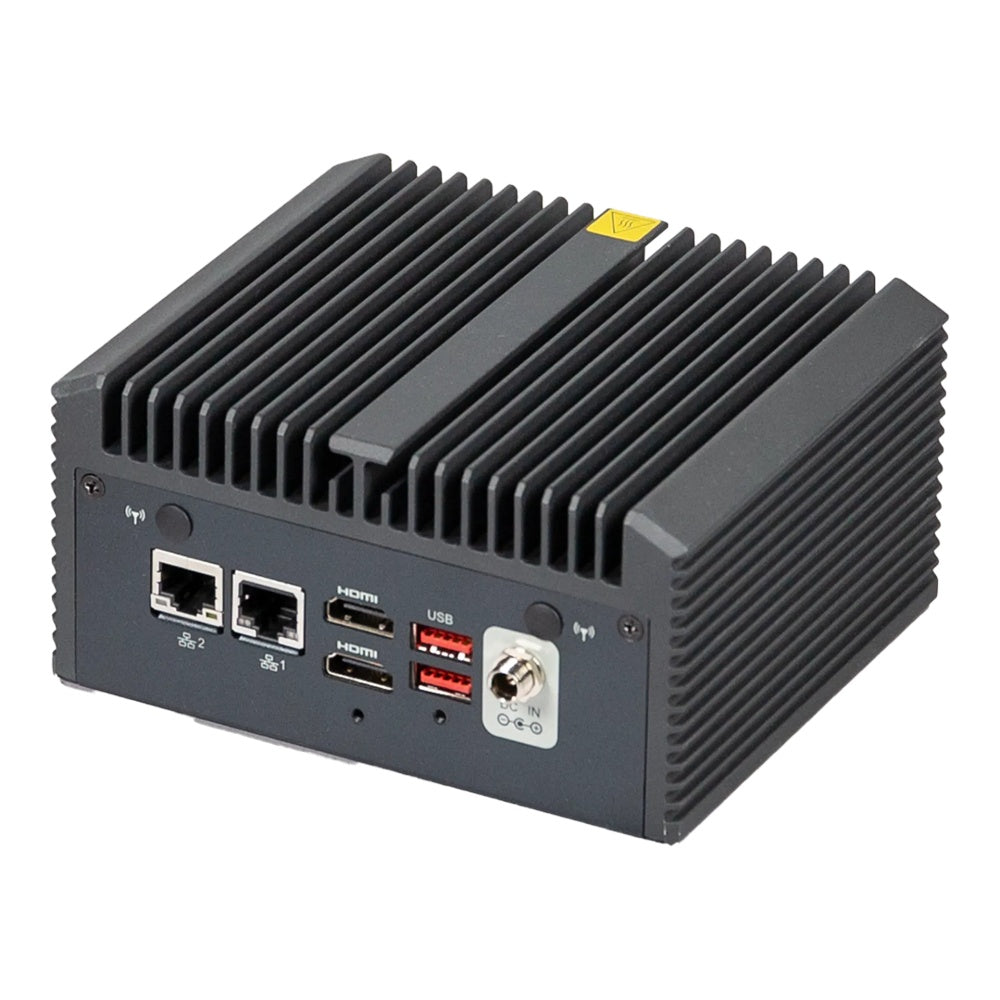

| Rear Panel I/O |
2 x HDMI
2 x RJ45 LAN Ports
2 x USB 3.2 (Gen2x1)
2 x External Antenna Holes (Optional)
1 x Screw-Type DC Jack
|
| Drive Support |
1 x 2.5" SATA Drive Bay
1 x M.2 2280 slot (PCI-E Gen4 x4/SATA, M-Key)
|
| Security |
Onboard TPM 2.0 Security Chip (Infineon SLB9672VU2.0) |
| OS Support |
Windows 10
Windows 11
|
| Power Supply |
+12V ~ 24VDC Wide-Range Input
135W 19.5V Adapter |
| Case Dimensions |
138 x 118 x 74.2mm
5.43" x 4.65" x 2.92" (in inches)
|
| Cooling |
Fanless |
| Environmental |
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F)
Operating Humidity: 0% to 90% (non-condensing)
Non-Operating Humidity: 0% to 95% (non-condensing)
Operating Vibration: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD
Non-Operating Vibration: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Operating Shock: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Packing List |
135W 19.5V AC-DC Adapter
AC Power Cord
Wall Mount Bracket x 2
Screw Kit for 2.5" HDD
Thermal Pad for DRAM
|
| Warranty |
1-Year Warranty on Parts and Labor |
