| Manufacturer | GigaIPC |
| Product ID | QBiX-RPLA1335H-A1 |
| CPU | Intel® Core™ i5-1335U Processor Intel® 7, 10 Cores (2P+8E), 12 Threads Up to 4.6 GHz 15W TDP |
| Chipset | SoC Onboard TPM 2.0 (INFINEON SLB9672VU2.0) |
| Memory | 2 x DDR5 SO-DIMM Slots Maximum 64GB Capacity Dual Channel DDR5 5200 MHz |
| Video | Intel® Iris® Xe Integrated Graphics 2 x HDMI 2.0: Max Resolution 4096x2160 @60Hz 1 x DP 1.4 via USB Type-C (DP Alt. mode): Max Resolution 7680x4320 @30Hz Supports 3 Independent Displays |
| Audio | Realtek® ALC269 |
| Storage | 1 x 2.5" HDD/SSD Bay (SATA 6Gb/s) 1 x M.2 2280 M-Key (PCIe Gen 4x4 / SATA 6Gb/s) |
| Connectivity | 1 x Intel® I226V 2.5 GbE LAN 1 x Realtek® RTL8111H GbE LAN |
| Expansion Slots | 1 x M.2 2230 E-Key (PCIe x1, USB 2.0) — WiFi/BT |

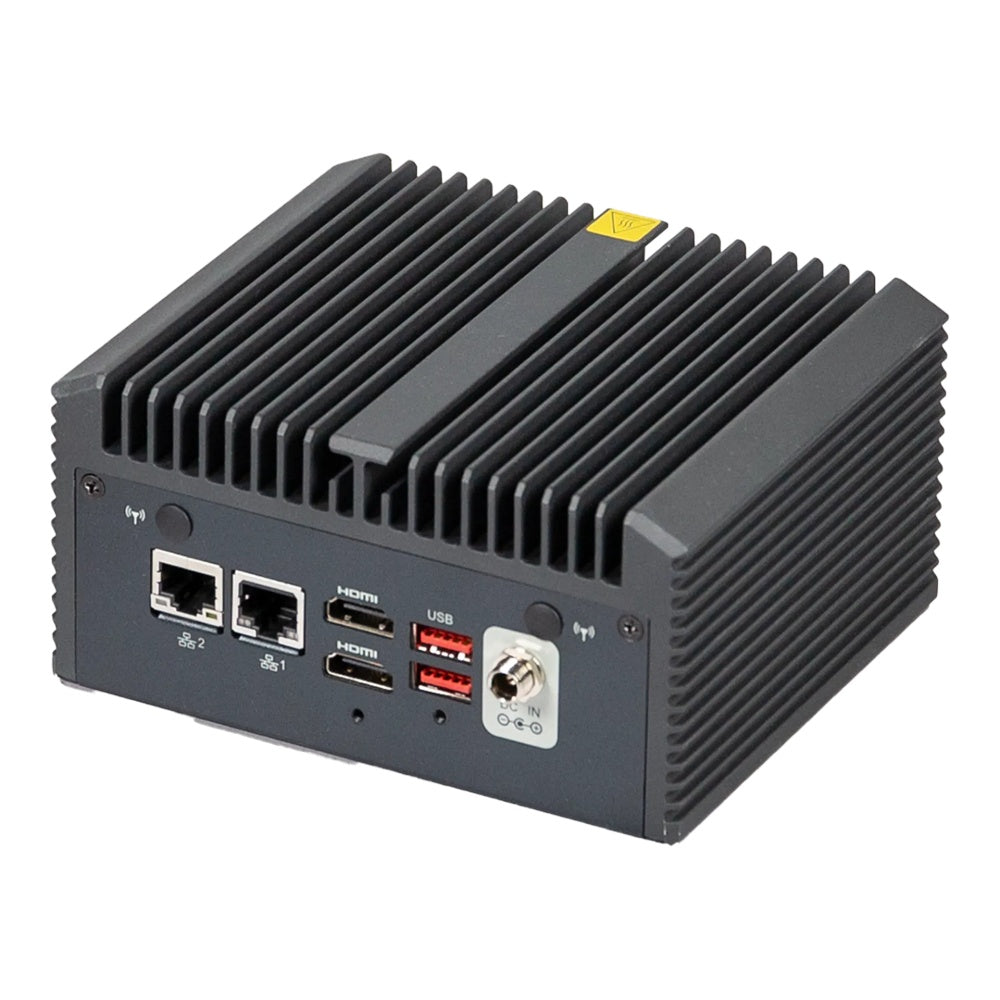

| Rear Panel I/O | 2 x HDMI 2.0 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 2x1 2 x External Antenna Holes (Optional) 1 x Screw-Type Lockable DC Jack |

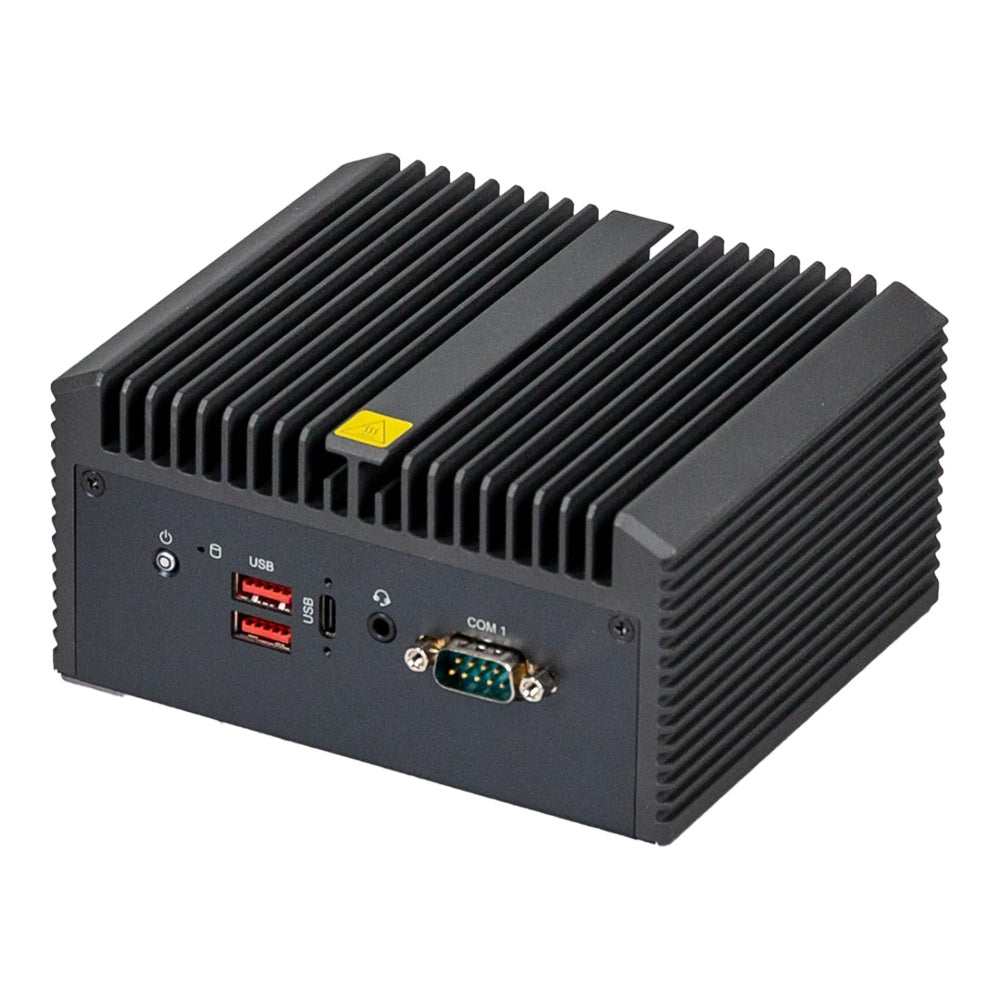

| Front Panel I/O | 2 x USB 3.2 Gen 2x1 1 x USB 3.2 Type-C with DP 1.4b (DP Alt. mode) 1 x Power Button with LED 1 x HDD LED 1 x COM Port (RS-232/422/485) 1 x Combo Audio Jack (Headphone & Headset) |
| OS Support | Windows 10 Windows 11 |
| Power Supply | +12V~24V DC Input 19.5V / 135W AC-DC Adapter Included 100-240VAC |
| Case Dimensions | 138 x 118 x 74.2mm 5.43" x 4.65" x 2.92" (in inches) |
| Mounting | Includes Wall Mount Brackets (x2) |
| Environmental | Operating Temperature: 0°C to 50°C (32°F to 122°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 0% to 90% (non-condensing) Non-Operating Humidity: 0% to 95% (non-condensing) Operating Vibration: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD Non-Operating Vibration: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis Operating Shock: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: QBiX-RPLA1335H-A1
