Manufacturer	MSI
Part Number	911-CF09-003
Model Name	MS-CF09
CPU	Supports Intel 14th/13th/12th Gen Processors, LGA 1700 Raptor Lake-S Refresh, Raptor Lake-S, Alder Lake-S Maximum 125W
Chipset	Intel H610E Express Onboard Infineon SLB9672VU2.0 TPM 2.0
Memory	2 x DDR5 DIMM slots Maximum 64GB Capacity 4400 MHz Dual Channel
Video	Intel UHD Graphics (CPU Dependent) HDMI Max Resolution: 4096x2160@60Hz DisplayPort Max Resolution: 4096x2304@60Hz Supports 3 Independent Displays
Audio	Realtek ALC897 Audio Codec
Storage Technology	4 x SATA3 connectors
Connectivity	4 x Intel I226-V 2.5GbE LAN
Expansion Slots	1 x PCI-E 5.0 x16 slot 1 x PCI-E 4.0 x4 slots
Power	1 x 24-pin ATX Power Connector 1 x 8-pin 12V ATX Power Connector

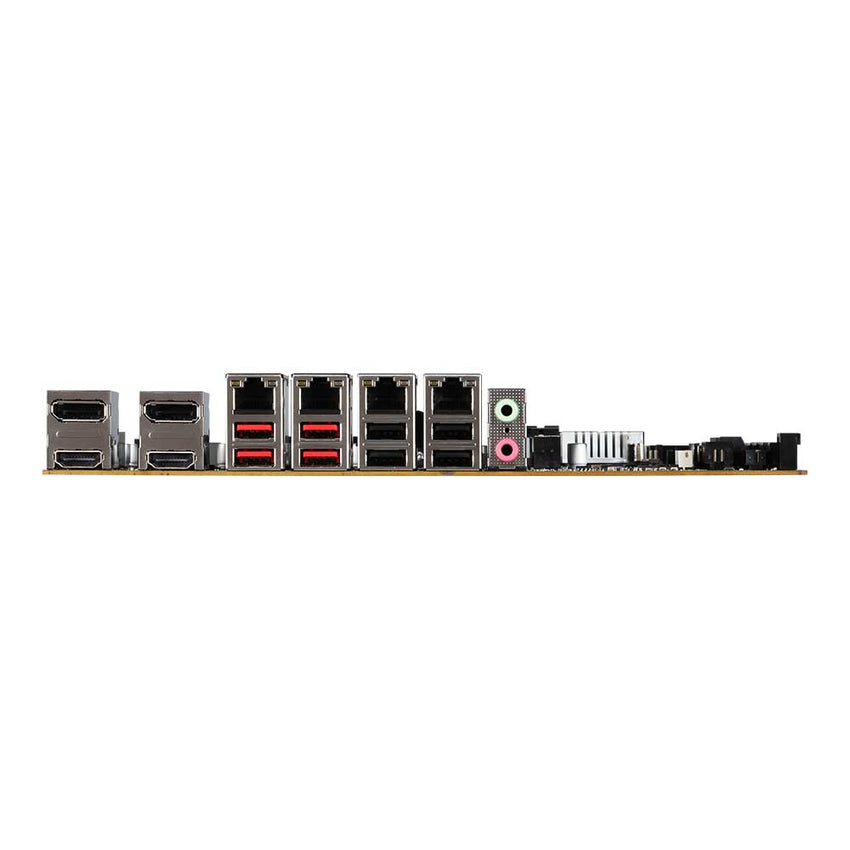

Rear I/O	2 x DisplayPort 2 x HDMI 4 x RJ45 2.5GbE LAN 4 x USB 3.2 (Gen2) 4 x USB 2.0 2 x Audio I/O
Onboard I/O Headers	1 x 4-pin CPU Fan connector 3 x 4-pin Fan connectors 1 x Front Panel Connector 1 x Front LAN LED connector 1 x Front Audio connector 1 x S/PDIF connector 1 x eDP connector 1 x PS/2 Keyboard/Mouse connector 1 x Parallel Port connector 6 x COM port headers 1 x 16-bit 8xGPI connector 1 x 16-bit 8xGPO connector 1 x PMBus connector 1 x SMBus connector 1 x I2C connector 1 x Chassis Intrusion header 1 x CMOS Battery header 6 x COM voltage select jumper 1 x Clear CMOS jumper 1 x ME jumper 1 x AT/ATX mode select jumper 1 x eDP Power Select jumper
OS Support	Windows 10 IoT Enterprise LTSC (64-bit) Windows 11 IoT Enterprise LTSC (64-bit, 22H2) Linux Kernal 5.xx / Ubuntu 22.04 LTS (64-bit)
Form Factor	Micro-ATX 244 x 244 x 1.6mm 9.6" x 9.6" x 0.6" (in inches)
Environmental	Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -20°C to 80°C (-4°F to 176°F) Operating Humidity: 10% to 90% (non condensing) Storage Humidity: 10% to 90% (non condensing)
Compliance	CE, FCC Class B, BSMI, RCM, VCCI, UKCA
Warranty	2-Year Manufacturer's Limited Warranty
