| Manufacturer | MSI |
| Part Number | 911-CF05-001 |
| Model Name | MS-CF05 |
| CPU | Supports Intel 14th/13th/12th Gen Processors, LGA 1700 Raptor Lake-S Refresh, Raptor Lake-S, Alder Lake-S Maximum 125W |
| Chipset | Intel R680E Express Onboard Infineon SLB9672VU2.0 TPM 2.0 |
| Memory | 4 x DDR5 DIMM slots Supports ECC/Non-ECC UDIMM (ECC support depends on CPU) Maximum 128GB Capacity 4400 MHz Dual Channel |
| Video | Intel UHD Graphics (CPU Dependent) VGA Max Resolution: 1920x1200@60Hz HDMI Max Resolution: 4096x2160@60Hz DisplayPort Max Resolution: 4096x2304@60Hz Supports 3 Independent Displays |
| Audio | Realtek ALC897 Audio Codec (Co-lay ALC888S) |
| Storage Technology | 4 x SATA3 connectors Supports Intel RAID 0/1/5/10 1 x M.2 22110/2280 slot (M Key, PCI-E 4.0 x4) 1 x M.2 2280/2242 slot (M Key, PCI-E 4.0 x4) Note: Shared Signal with PCIe slot 5 |
| Connectivity | 1 x Intel I225-LM 2.5GbE LAN (Supports iAMT 16.x) 3 x Intel I225-LM 2.5GbE LAN |
| Expansion Slots | 2 x PCI-E 5.0 x16 slots (Shared Lanes, x16 or x8/x8) 1 x PCI-E 4.0 x4 slot (Shared with M.2 slot) 3 x PCI-E 3.0 x4 slots 1 x PCI-E 3.0 x1 slot 1 x M.2 2280/2242 slot (B Key, PCI-E 3.0 x1) 1 x M.2 2230 slot (E Key, PCIe x1) |
| Power | 1 x 24-pin ATX Power Connector 1 x 4-pin 12V ATX Power Connector |

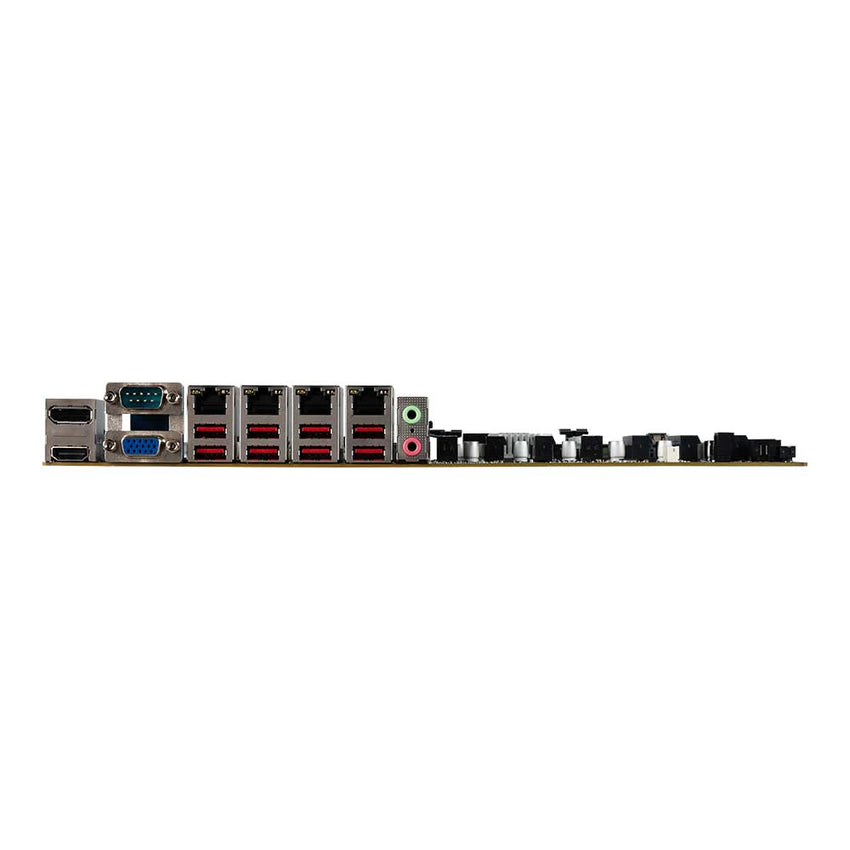

| Rear I/O | 1 x DisplayPort 1 x HDMI 1 x COM (RS232/422/485, Ring/0V/5V/12V, Auto-flow Control Supported) 4 x RJ45 2.5GbE LAN 8 x USB 3.2 (Gen2) 2 x Audio I/O |
| Onboard I/O Headers | 1 x 4-pin CPU Fan connector 3 x 4-pin Fan connectors 1 x Front Audio header 1 x S/PDIF header 1 x USB 3.1 header 1 x USB 2.0 header 1 x USB 2.0 Type-A port 1 x GPI header 1 x GPO header 1 x PMBus header 1 x I2C header 1 x SMBus header 5 x Serial port headers 1 x LAN LED header 1 x PS/2 Keyboard/Mouse connector 1 x Chassis Intrusion header 6 x COM voltage select jumper 1 x AT/ATX mode select jumper 1 x ME jumper 1 x Clear CMOS jumper |
| OS Support | Windows 10 IoT Enterprise LTSC (64-bit) Windows 11 IoT Enterprise LTSC (64-bit, 22H2) Linux Kernal 5.xx / Ubuntu 22.04 LTS (64-bit) |
| Form Factor | ATX 305 x 244 x 1.6mm 12" x 9.6" x 0.6" (in inches) |
| Environmental | Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -20°C to 80°C (-4°F to 176°F) Operating Humidity: 10% to 90% (non condensing) Storage Humidity: 10% to 90% (non condensing) |
| Compliance | CE, FCC Class B, BSMI, RCM, VCCI, UKCA |
| Warranty | 2-Year Manufacturer's Limited Warranty |
PRODUCT ID: MS-CF05-001
