| Manufacturer | MSI IPC |
| Product ID | |
| Model Name | MS-C927 |
| CPU |
Intel Core Ultra 7 165U Processor 2 P-Cores / 8 E-Cores / 2 LP E-Cores / 14 Threads 1.7 - 4.9 GHz P-Core Frequency 1.2 - 3.8 GHz E-Core Frequency 700 MHz - 2.1 LP E-Core Frequency 12W - 57W TDP, 12 MB Intel Smart Cache |
| Chipset |
SoC |
| Memory |
2 x DDR5 SODIMM slots 5600 MHz Maximum 96GB Capacity Dual Channel |
| Video |
Intel Graphics 4 Xe-Cores 2 GHz DisplayPort Port Max Resolution: 4096x2304@60Hz Support Dual Displays |
| Audio |
Realtek ALC 897 HD Codec |
| Storage Technology |
1 x M.2 2280 slot (PCI-E 4.0 x4) |
| Connectivity |
1 x Intel I219-LM GbE LAN 1 x Intel I226-V 2.5GbE LAN |
| Expansion Slots |
1 x M.2 3042/2242 slot (B Key, PCIe x1/USB 2.0) 1 x M.2 2230 slot (E Key, PCIe x1/USB2.0/CNVi) |
| Rear Panel I/O |

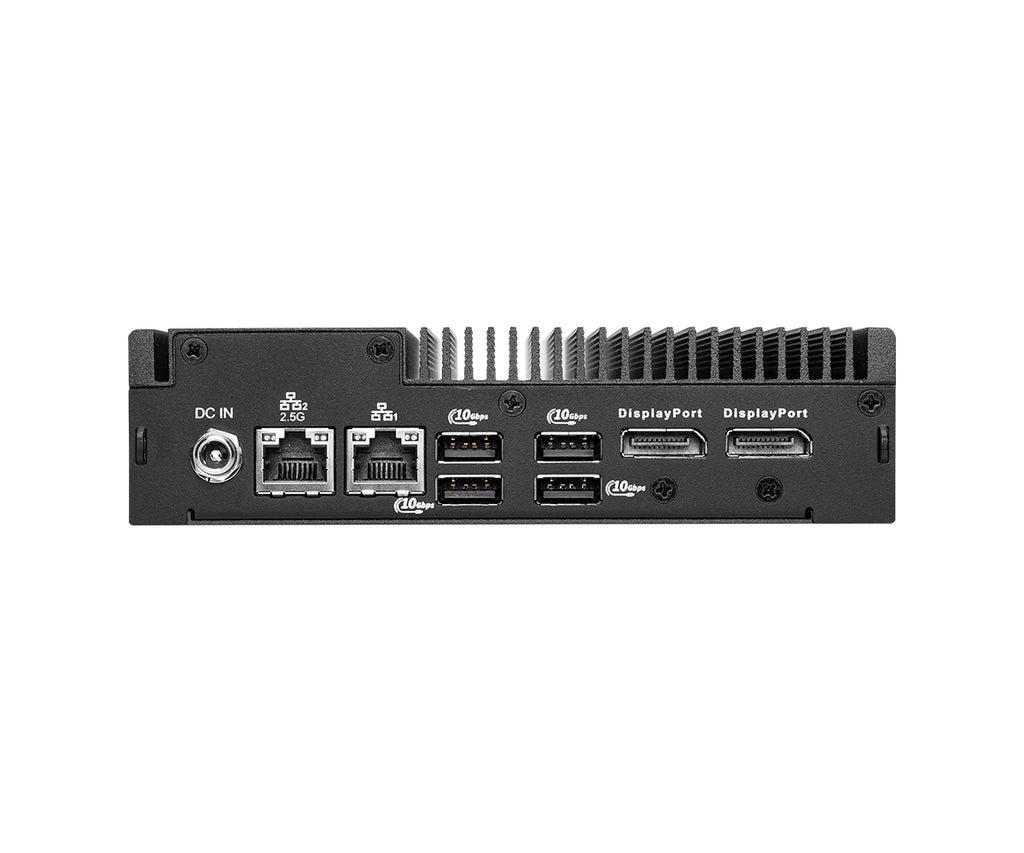

1 x 12-24V DC-IN 1 x RJ45 2.5GbE LAN 1 x RJ45 GbE LAN 4 x USB 3.2 (Gen2) 2 x DisplayPorts |
| Front Panel I/O |

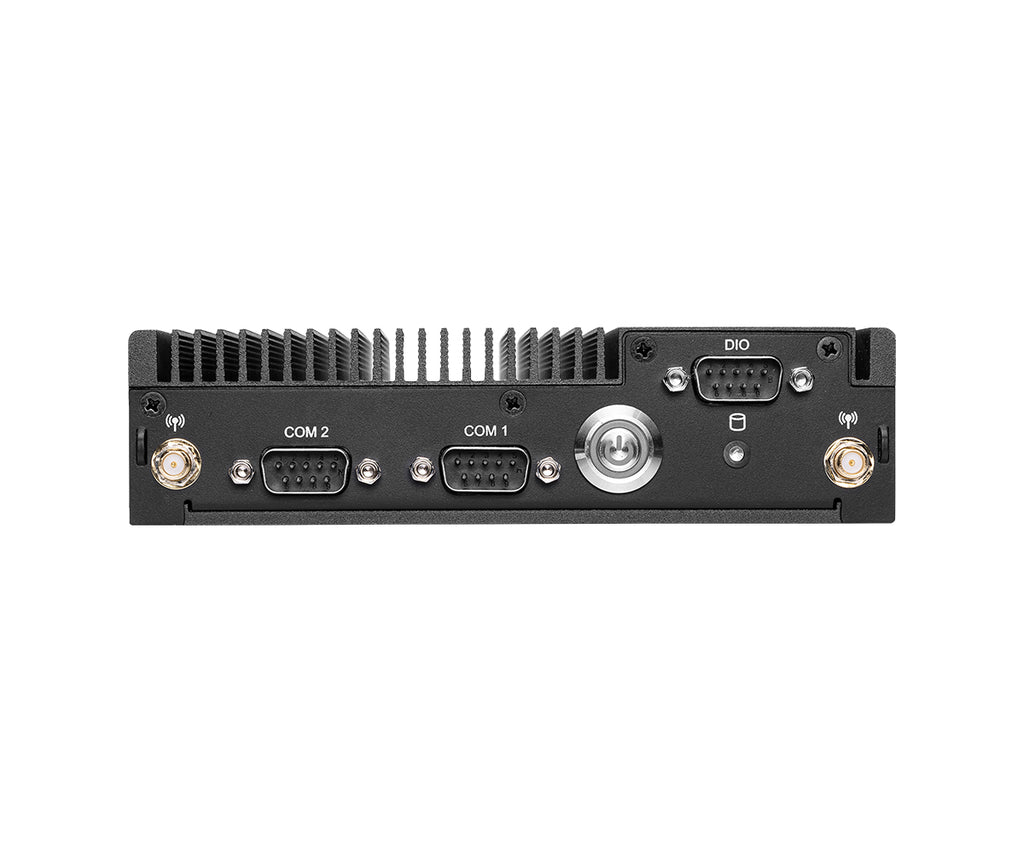

2 x Antenna Cutout 2 x COM (RS232/422/485, 0V/5V/12V) 1 x Power Button with LED 1 x GPIO (8 bit, 4 x GPI, 4 x GPO), 5V 1 x HDD Status LED |
| Drive Support |
1 x M.2 2280 slot (PCI-E 4.0 x4) |
| OS Support |
Windows 11 IoT Etnerprise LTSC (64-bit, 24H2) Windows 10 IoT Enterprise LTSC (64-bit, 21H2, Pre-scan) Linux (Support by request) |
| Power Supply |
12-24V DC-IN Barrel Connector Over Current and Over Voltage Protection |
| Case Dimensions |
130 x 155 x 40mm 5.12" x 6.1" x 1.58" (in inches) |
| Mounting |
Wallmount DIN Rail Mount |
| Environmental |
Operating Temperature: -10°C to 60°C (14°F to 140°F) w/ SSD, Airflow 0.7m/s Non-Operating Temperature: -20°C to 80°C (-4°F to 176°F) Operating Humidity: 10% to 90% (non-condensing) Non-Operating Humidity: 10% to 90% (non-condensing) Vibration: IEC61373 Category 1, Class B Shock: IEC61373 Category 1, Class B |
| Compliance |
CE, FCC, RCM, VCCI, BSMI, UKCA, IC IEC 62368: CE(LVD) / BSMI |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: MS-C927
