| Manufacturer |
ASRock Industrial |
| Product ID |
iBOX-255H |
| CPU |
Intel Core Ultra 7 255H Processor
6 P-Cores / 8 E-Cores / 2 Low Power E-Cores / 16 Threads
Low Power E-Core Frequency: 700 MHz - 2.5 GHz
E-Core Frequency: 1.5 - 4.4 GHz
P-Core Frequency: 2.0 - 5.1 GHz
28 - 115W TDP, 24 MB Intel Smart Cache |
| Chipset |
MCP (Multi-Chip Package)
Intel PTT |
| Memory |
2 x DDR5 SODIMM slots
Maximum 96GB Capacity
6400 MHz
Dual Channel |
| Video |
Intel Arc 140T GPU
2.25 GHz
74 GPU Peak TOPS (Int8)
8 Xe-Cores
HDMI Max Resolution: 4096x2160@60Hz
DisplayPort Max Resolution: 4096x2160@60Hz
Supports Quad Displays |
| Audio |
Realtek ALC256 HD Audio |
| Storage Technology |
1 x SATA Connector
1 x M.2 2280/2242 slot (PCI-E 4.0 x4)
1 x M.2 2242 slot (PCI-E 4.0 x4)
Intel VMD RAID 0/1 (Support by identical interface) |
| Connectivity |
1 x Intel I226LM 2.5GbE LAN (Supports vPro)
1 x Intel I226V 2.5GbE LAN |
| Expansion Slots |
1 x M.2 2230 slot (PCIe x1, USB 2.0, CNVi) |

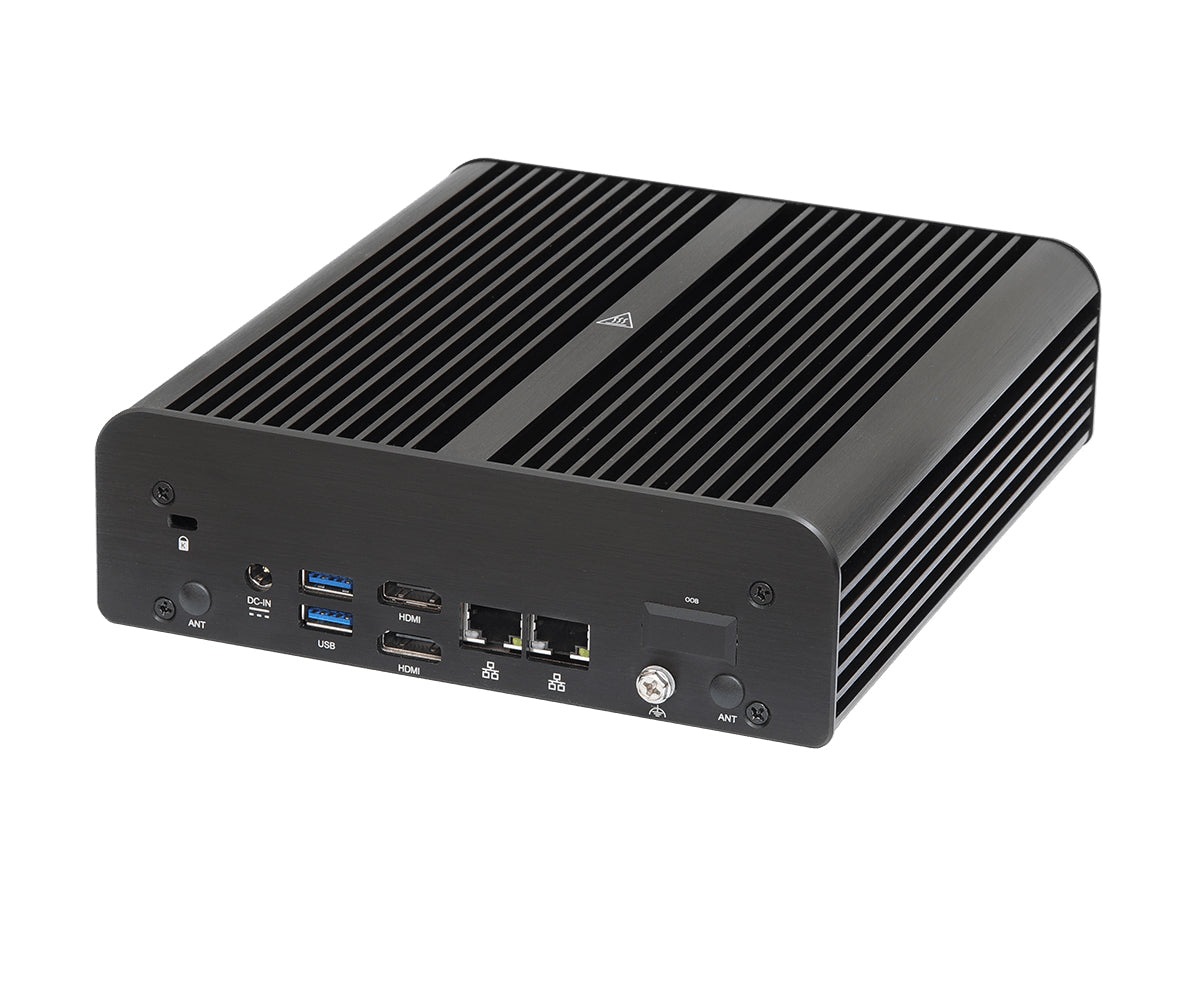

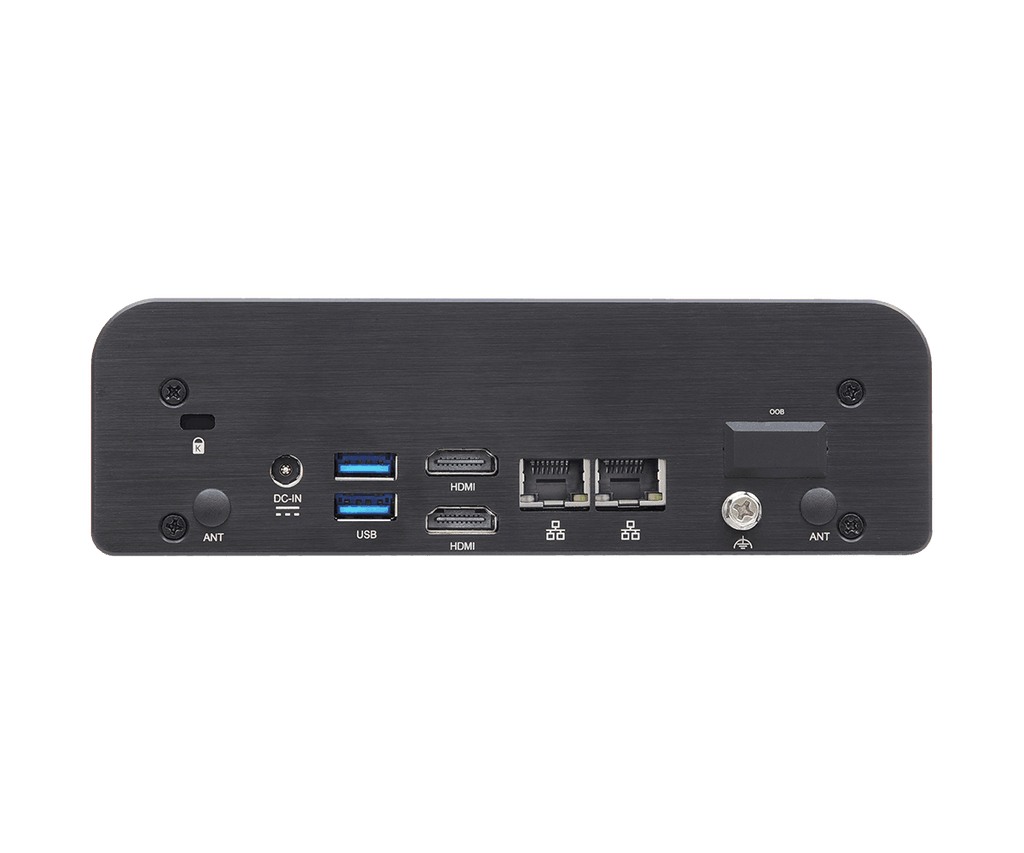

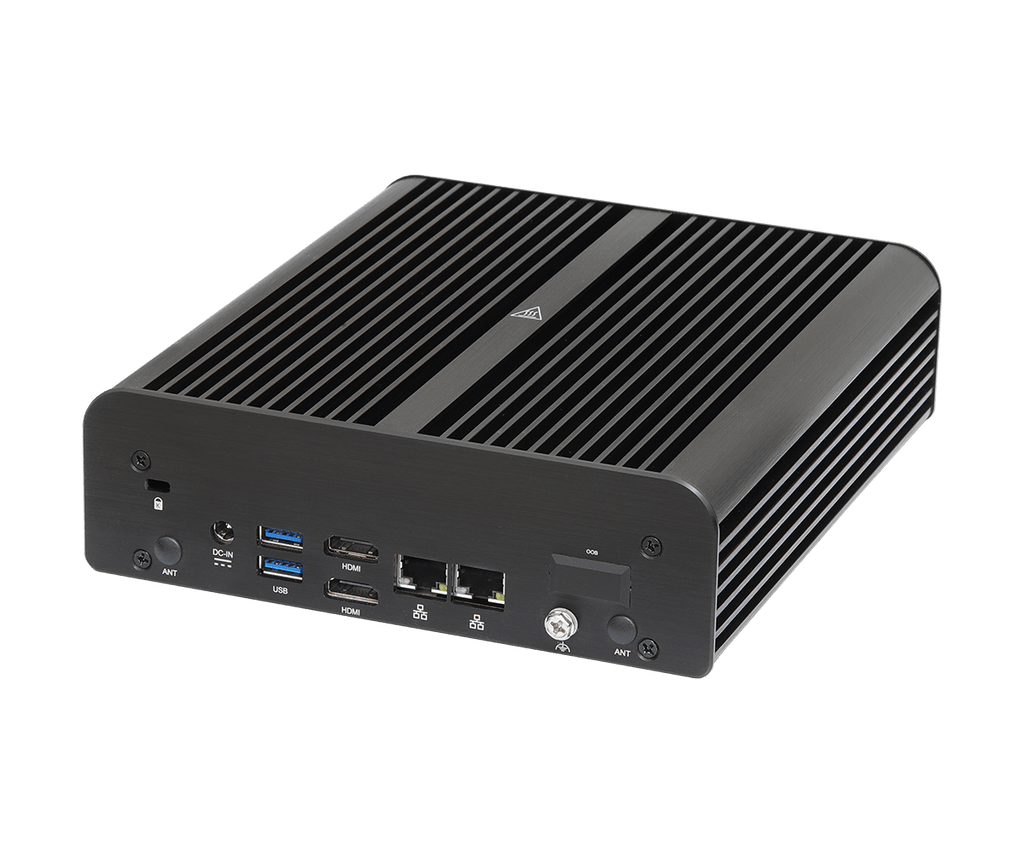

| Rear Panel I/O |
1 x Kensington Lock
2 x Antenna Cutout
1 x 12-24V DC-IN
2 x USB 3.2 (Gen2)
2 x HDMI
2 x RJ45 2.5GbE LAN
1 x OOB (Supports Remote On/Off/Reset BOM Optional)
1 x GND Screw |

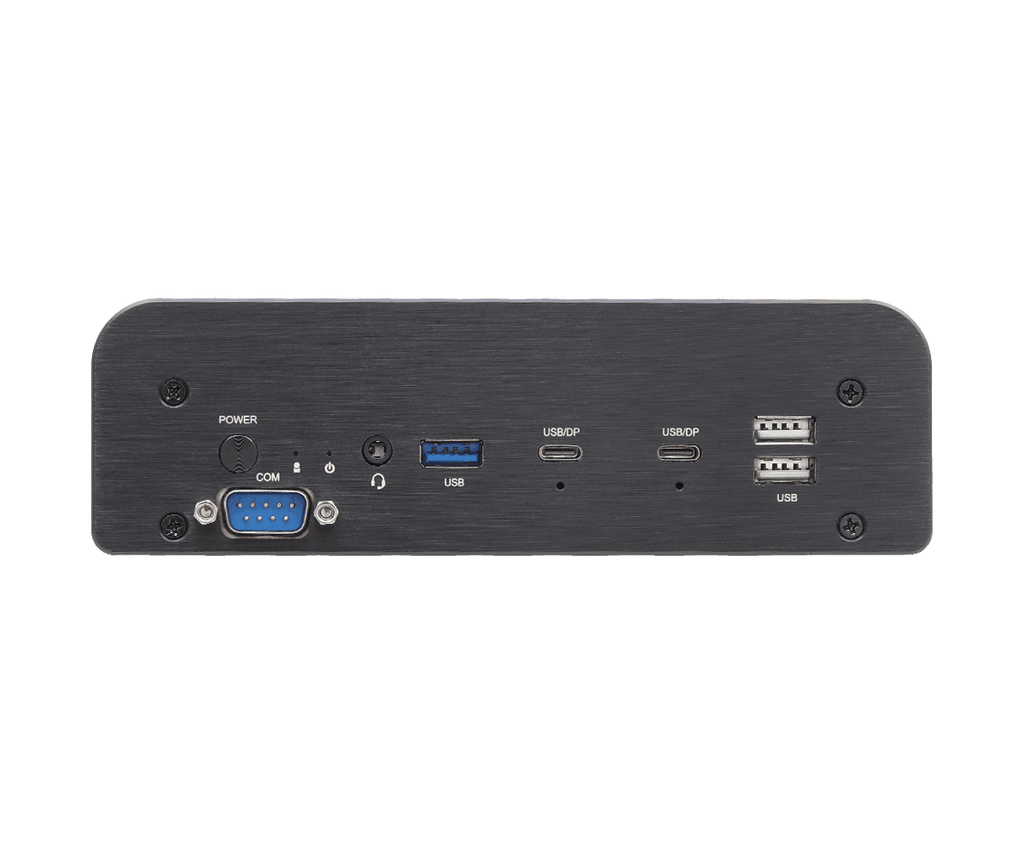

| Front Panel I/O |
1 x Power Button
2 x Status LED (Power, HDD)
1 x COM (RS232/422/485)
1 x Audio Jack (Headphone & Microphone)
1 x USB 3.2 (Gen2)
1 x USB4/Thunderbolt 4 (5V/3A, Supports DP 2.1 Display Output)
1 x USB 3.2 (Gen2x2) Type-C (5V/3A, Supports DP 1.4a Display Output)
2 x USB 2.0 |
| Drive Support |
1 x 2.5" SATA Drive Bay
1 x M.2 2280/2242 slot (PCI-E 4.0 x4)
1 x M.2 2242 slot (PCI-E 4.0 x4) |
| OS Support |
Windows 10/11 |
| Watchdog Timer |
Output: From Super I/O to drag RESETCON#
Interval: 256 Segments, 0-255 sec |
| Power Supply |
12-24V DC-IN Barrel Connector
Includes 19V 120W AC-DC Adapter
Power-On Mode: AT/ATX Supported (AT: powers on directly when input is ready; ATX: press button to power on after input is ready) |
| Case Dimensions |
7.87" x 6.95" x 2.11" (in inches)
200 x 176.6 x 53.6mm |
| Net Weight |
3.0 kg / 6.61 lbs |
| Mounting |
VESA Mount
Wall Mount
DIN Rail (hardware not included) |
| Environmental |
Operating Temperature: -20°C to 50°C, with air flow 0.5-0.8 m/s (with extended temp. peripherals)
Storage Temperature: -40°C to 85°C
Operating Humidity: 5% to 90% (non-condensing)
Storage Humidity: 5% to 90% (non-condensing) |
| Compliance |

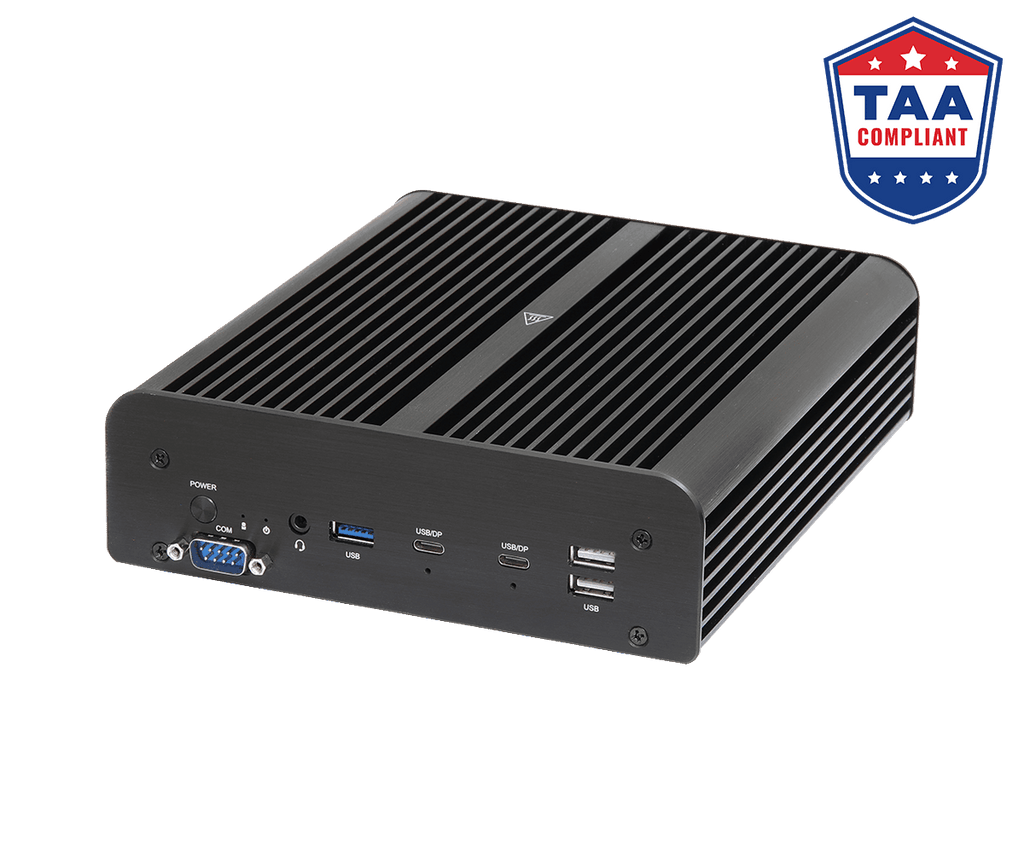

CE, FCC, TAA Compliant |
| Warranty |
1-Year Warranty on Parts and Labor |
