| Manufacturer |
ASRock Industrial |
| Product ID |
iBOX-225H |
| CPU |
Intel Core Ultra 5 225H Processor
4 P-Cores / 8 E-Cores / 2 Low Power E-Cores / 14 Threads
Low Power E-Core Frequency: 700 MHz - 2.5 GHz
E-Core Frequency: 1.3 - 4.3 GHz
P-Core Frequency: 1.7 - 4.9 GHz
20 - 115W TDP, 18 MB Intel Smart Cache
|
| Chipset |
SoC
Intel PTT |
| Memory |
2 x DDR5 SODIMM slots
Maximum 96GB Capacity
6400 MHz
Dual Channel
|
| Video |
Intel Arc 130T GPU
2.2 GHz
63 GPU Peak TOPS (Int8)
7 Xe-Cores
HDMI Max Resolution: 4096x2160@60Hz
DisplayPort Max Resolution: 4096x2160@60Hz
Supports Quad Displays
|
| Audio |
Realtek ALC256 HD Audio
|
| Storage Technology |
1 x SATA Connector
1 x M.2 2280/2242 slot (PCI-E 4.0 x4)
1 x M.2 2242 slot (PCI-E 4.0 x4)
Intel VMD RAID 0/1 (Support by identical interface)
|
| Connectivity |
1 x Intel I226LM 2.5GbE LAN (Supports vPro)
1 x Intel I226V 2.5GbE LAN
|
| Expansion Slots |
1 x M.2 2230 slot (PCIe x1, USB 2.0, CNVi)
|

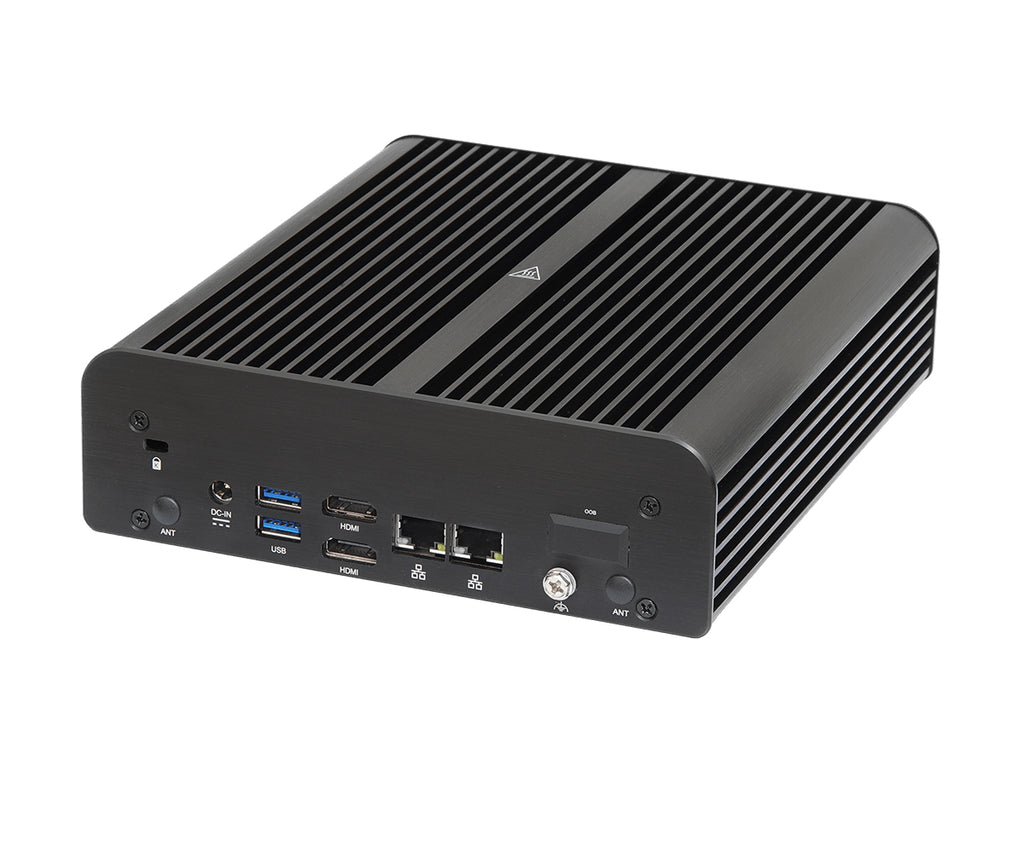

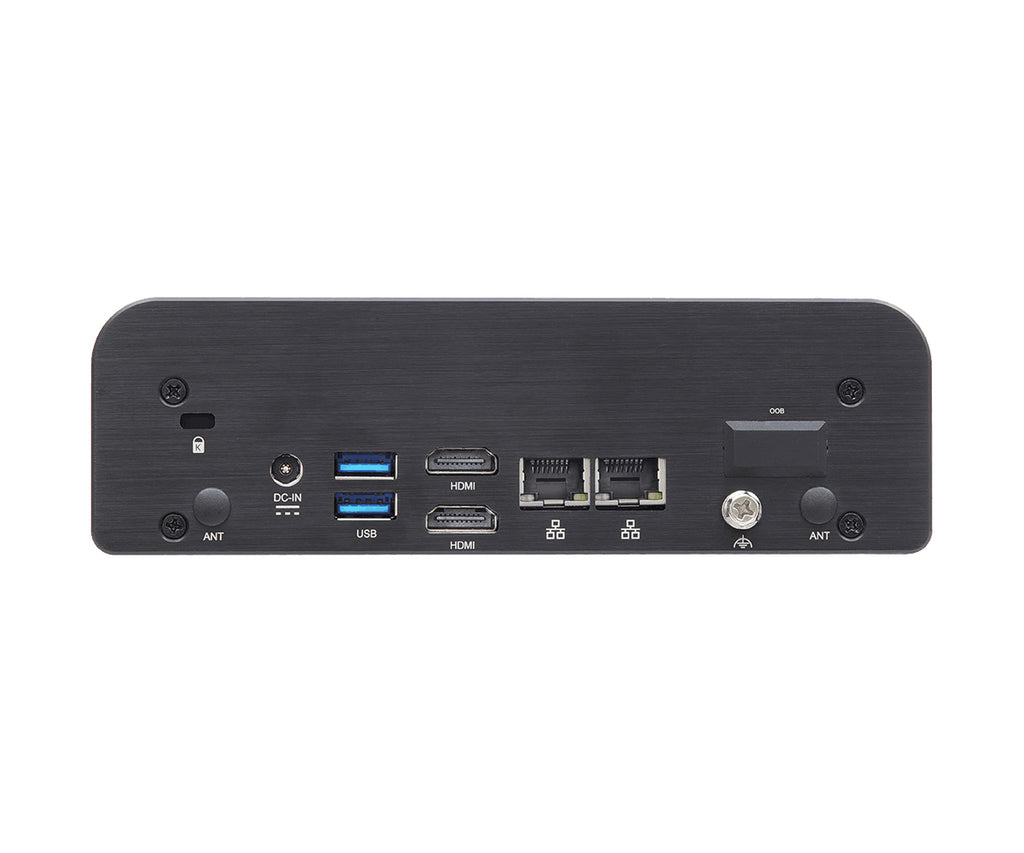

| Rear Panel I/O |
1 x Kensington Lock
2 x Antenna Cutout
1 x 12-24V DC-IN
2 x USB 3.2 (Gen2)
2 x HDMI
2 x RJ45 2.5GbE LAN
1 x OOB (Supports Remote On/Off/Reset BOM Optional)
1 x GND Screw
|

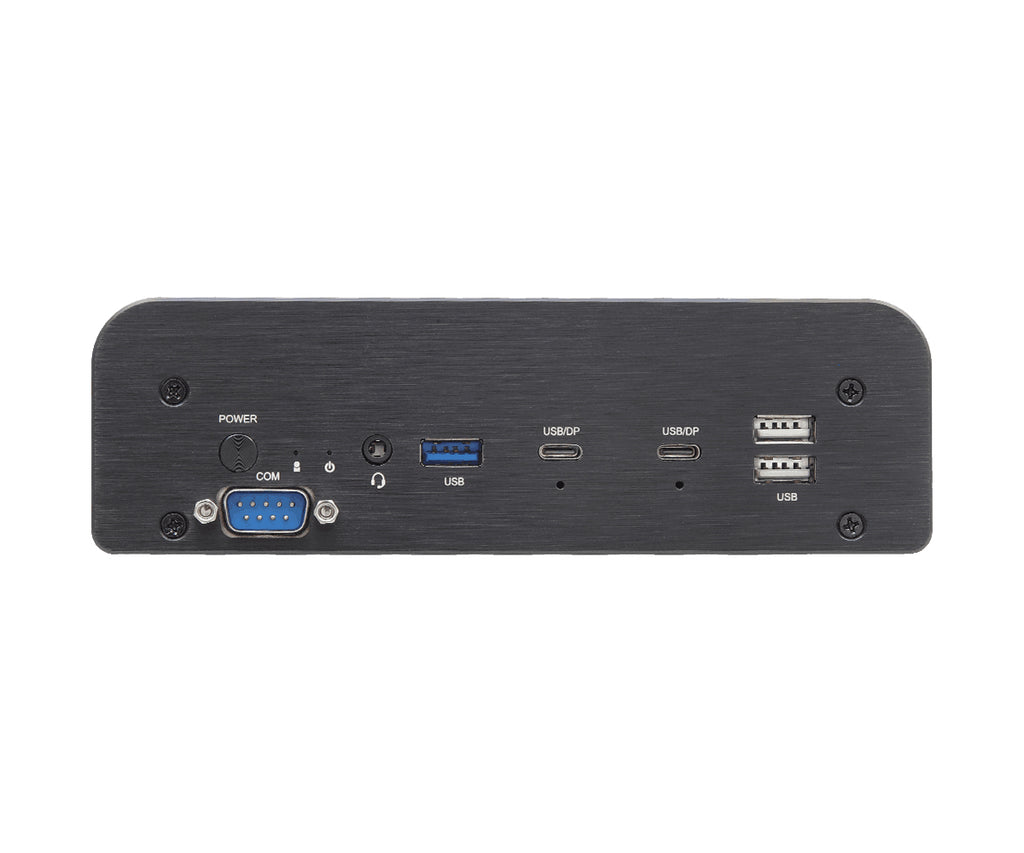

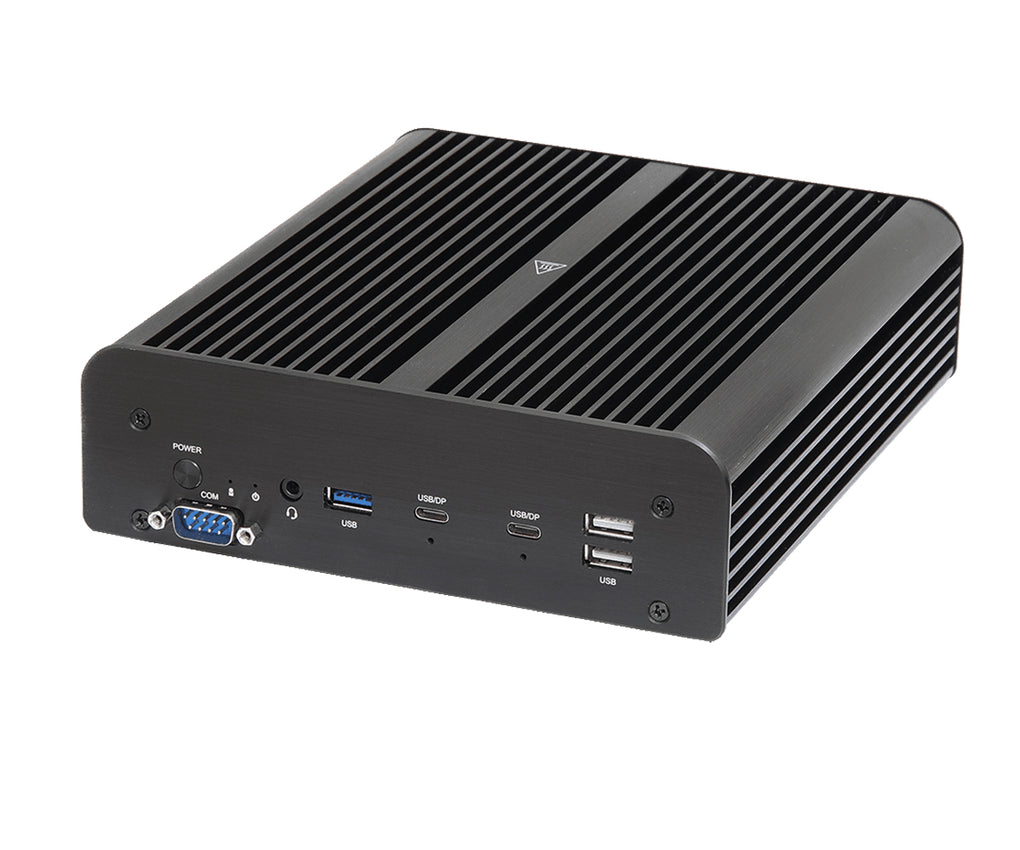

| Front Panel I/O |
1 x Power Button
2 x Status LED (Power, HDD)
1 x COM (RS232/422/485)
1 x USB 3.2 (Gen2)
1 x USB4/Thunderbolt 4 (5V/3A, Supports DP 2.1 Display Output)
1 x USB 3.2 (Gen2x2) Type-C (5V/3A, Supports DP 1.4a Display Output)
2 x USB 2.0
|
| Drive Support |
1 x 2.5" SATA Drive Bay
1 x M.2 2280/2242 slot (PCI-E 4.0 x4)
1 x M.2 2242 slot (PCI-E 4.0 x4)
|
| OS Support |
Windows 10/11
|
| Power Supply |
12-24V DC-IN Barrel Connector
Includes 19V 90W AC-DC Adapter
|
| Case Dimensions |
7.87" x 6.95" x 2.11" (in inches)
200 x 176.6 x 53.6mm
|
| Mounting |
VESA Mount
Wall Mount
DIN RAIL
|
| Environmental |
Operating Temperature: -20°C to 50°C (-4°F to 122°F)
Non-Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Operating Humidity: 5% to 90% (non-condensing)
Non-Operating Humidity: 5% to 90% (non-condensing)
|
| Compliance |
CE, FCC
|
| Warranty |
1-Year Warranty on Parts and Labor |
