| Manufacturer |
ASUS
|
| Product ID |
ESC8000A-E13P-32W
|
| Model Number |
ESC8000A-E13P
|
| CPU |
Supports 2 x AMD EPYC 9005 Series Processors
Socket SP5
|
| Chipset |
SoC
Broadcom PEX89000 PCIe Switch
|
| Memory |
24 x DDR5 DIMM Slots (12 per CPU)
RDIMM Only
6400/5600 MHz
12-Channel
|
| Video |
Aspeed AST2600 64MB
|
| Storage Technology |
Backplane: 4 x MCIO connectors (x8 link), 2 x SlimSAS Connectors (x4 link)
PCIe Switch: 4 x MCIO Connectors (x8 link)
2 x M.2 22110/2280 slots (PCI-E 5.0 x4)
|
| Connectivity |
2 x Intel X710-AT2 10G LAN
1 x Management LAN
|
| Expansion |
8 x PCI-E 5.0 x16 slot (Full Height, Full Length)
5 x PCI-E 5.0 x16 slot (Full Height, Half Length)
1 x PCI-E 5.0 x16 slot (x8 link, Full Height, Half Length)
|

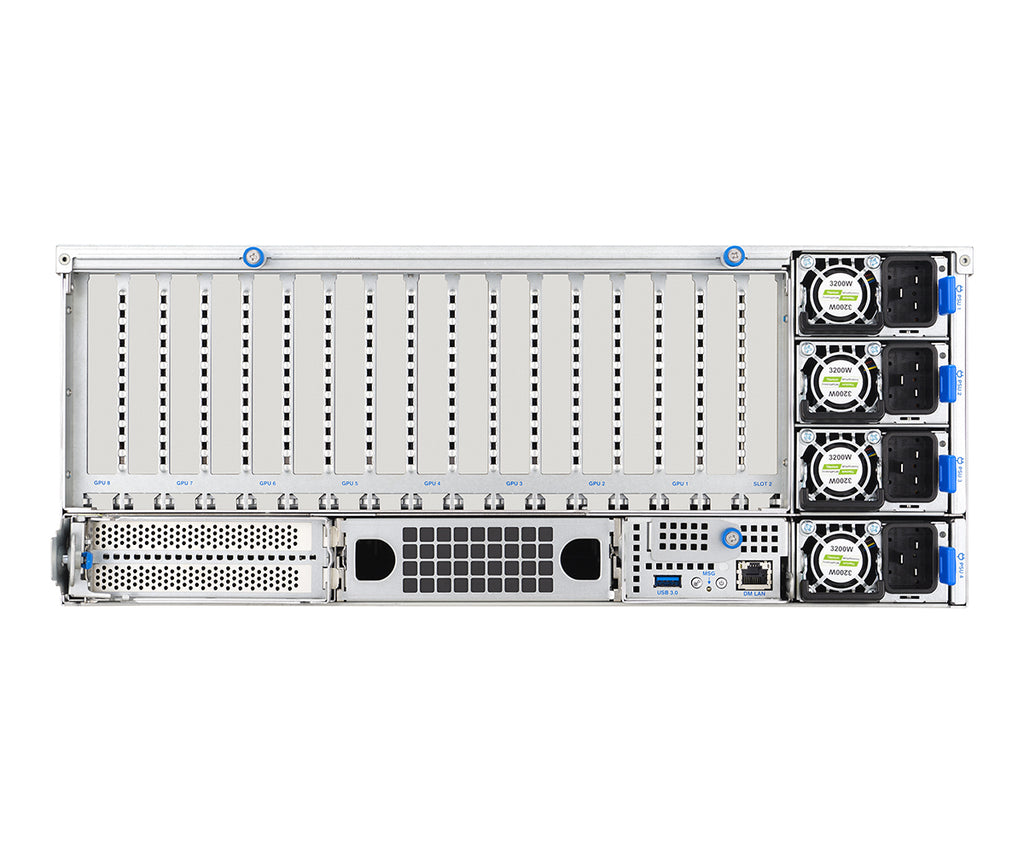

| Rear I/O |
1 x USB 3.2 (Gen1)
1 x Location Button with LED
1 x MSG LED
1 x Power Button with LED
1 x RJ45 Management LAN
|

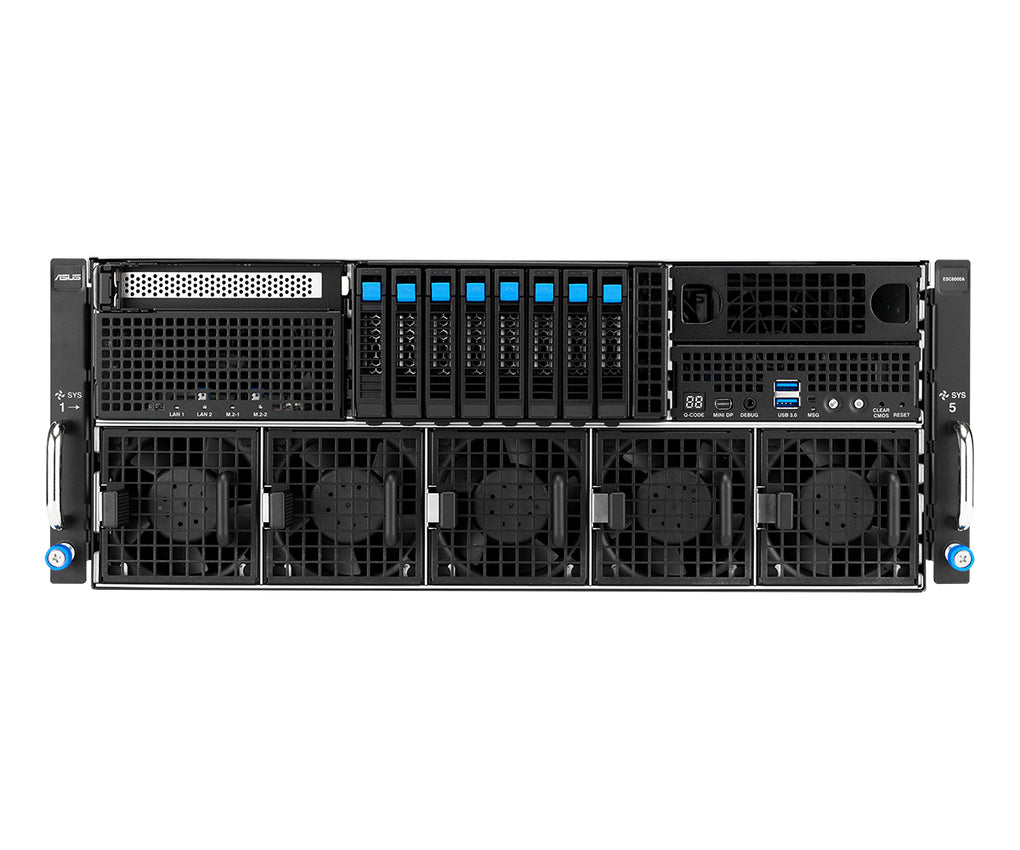

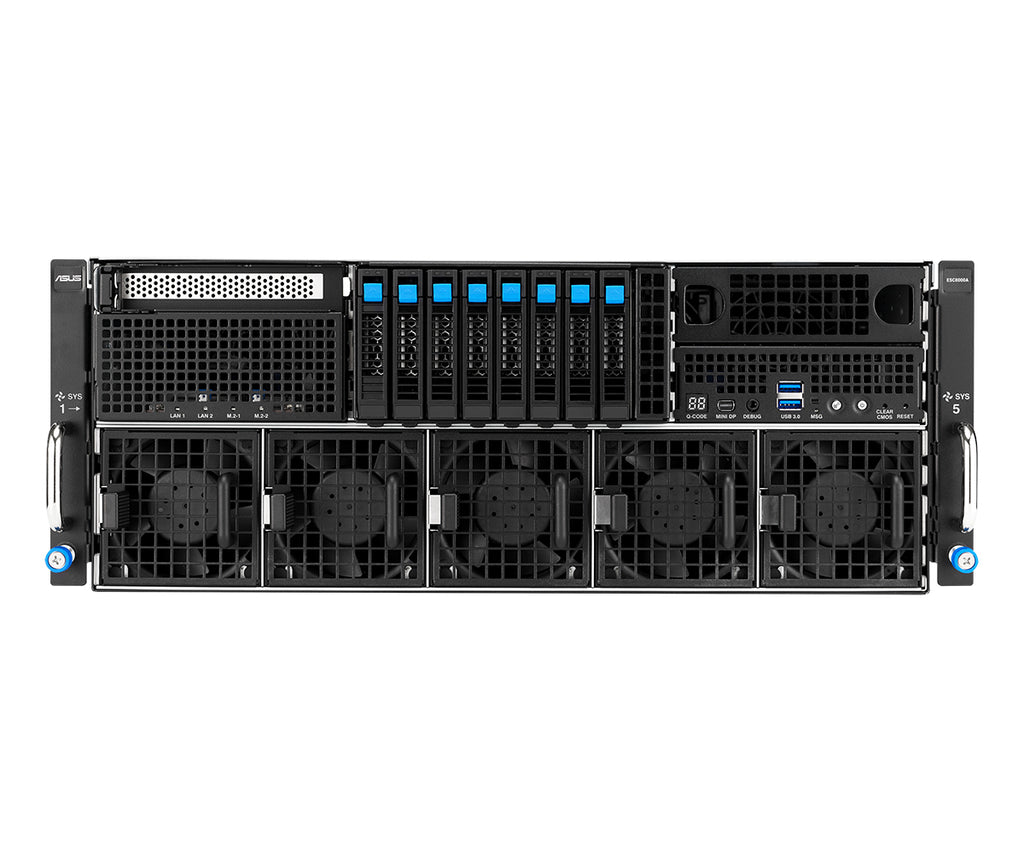

| Front Panel I/O |
2 x LAN LED
2 x M.2 Status LED
1 x Q-Code/Port 80 LED
1 x Mini DisplayPort
1 x Debug Port
2 x USB 3.2 (Gen1)
1 x MSG LED
1 x Location Button with LED
1 x Power Button with LED
1 x Clear CMOS switch
1 x Reset switch
|
| Drive Support |
2 x M.2 22110/2280 slots (PCI-E 5.0 x4)
8 x 2.5" NVMe Hotswap Drive Bays
|
| OS Support |
Windows Server
RedHat Enterprise Linux
SuSE Linux Enterprise Server
CentOS
Ubuntu
VMWare
|
| Power Supply |
3+1 80 Plus Titanium Power Supply
220-240Vac, 16A (x4), 50/60Hz
|

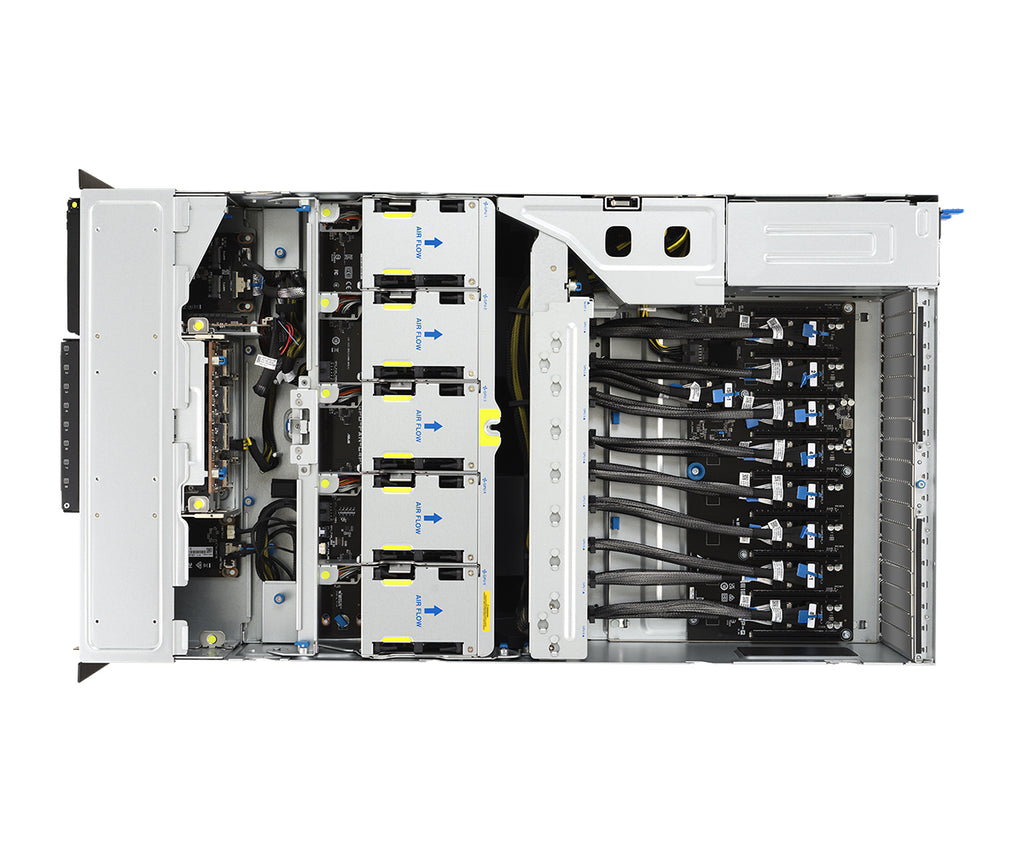

| Cooling |
5 x System Fans
5 x GPU Fans
|

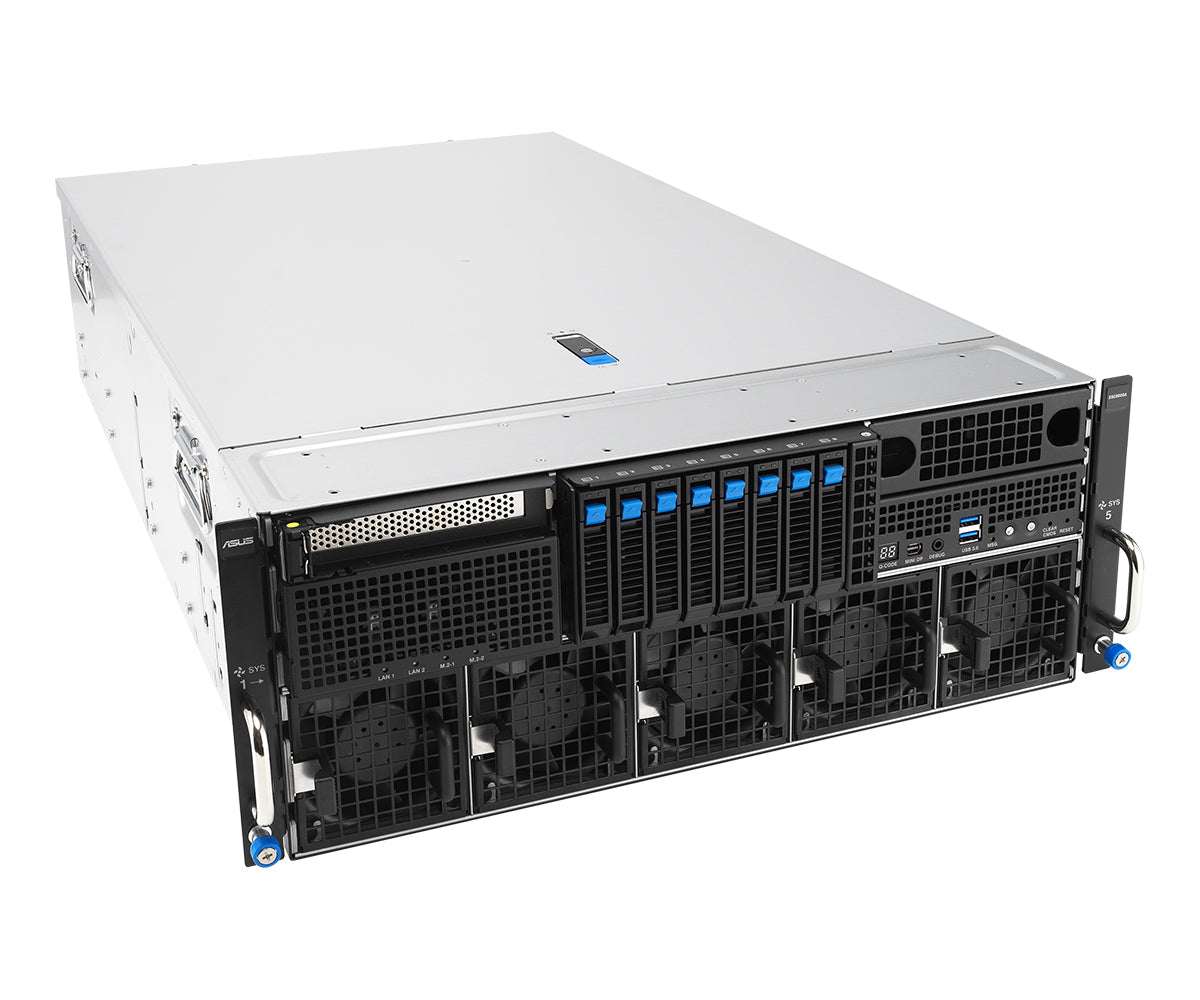

| Case Dimensions |
4U Rackmount
31.5" x 17.3" x 6.9"
800 x 438.5 x 175mm
Net Weight: 42 kg
Gross Weight: 44.23 kg
|
|
Environmental |
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Non-Operating Humidity: 20% to 95% (non-condensing)
|
|
Compliance |
BSMI, CB, CE, FCC (Class A), RCM
|
| Warranty |
3 Year Manufacturer's Limited Warranty
|
