Manufacturer |
ASUS |
Product ID |
ESC8000A-E13 |
Model Number |
ESC8000A-E13-32W |
CPU |
Supports 2 x AMD EPYC 9005 Series Processors Socket SP5
|
Chipset |
SoC |
Memory |
24 x DDR5 DIMM Slots (12 per CPU) RDIMM Only 6400/5600 MHz 12-Channel
|
Video |
Aspeed AST2600 64MB |
Storage Technology |
Backplane: 4 x MCIO connectors (x8 link), 2 x SlimSAS Connectors (x4 link) PCIe Switch: 4 x MCIO Connectors (x8 link)
|
Connectivity |
1 x Management LAN
|
Expansion |
8 x PCI-E 5.0 x16 slot (Full Height, Full Length) 1 x PCI-E 5.0 x16 slot (Full Height, Half Length) 2 x PCI-E 5.0 x16 slot (x8 link, Full Height, Half Length)
|

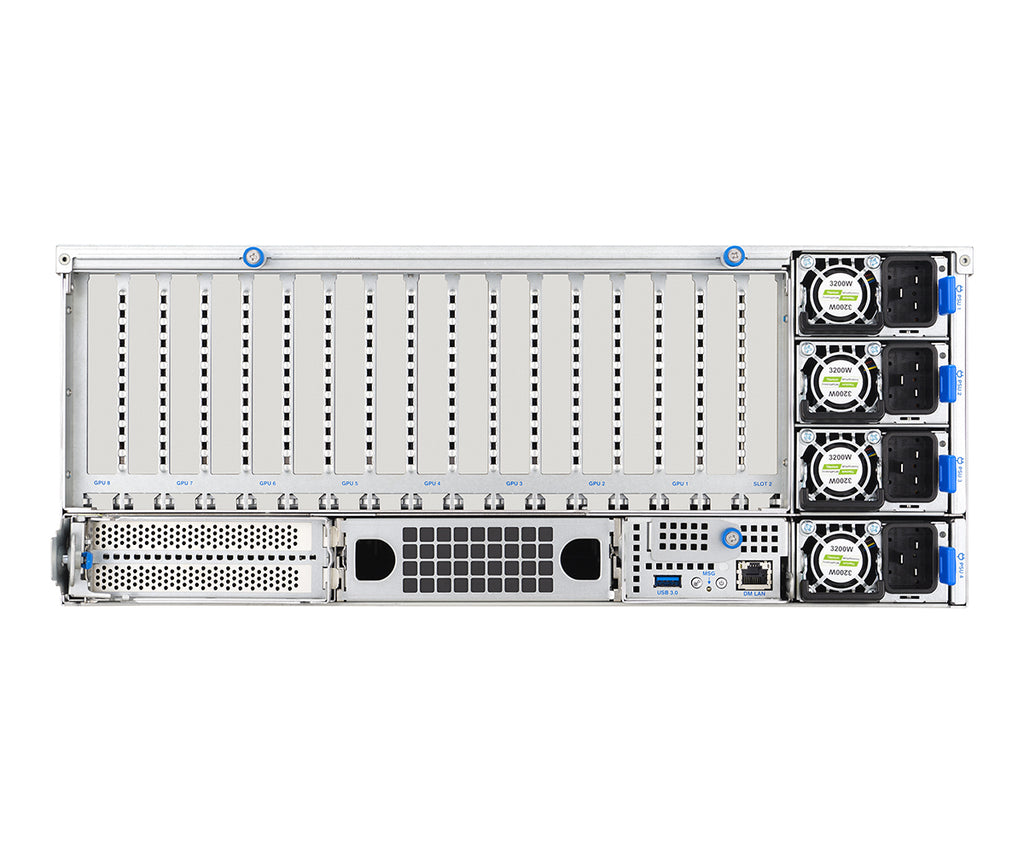

Rear I/O |
1 x USB 3.2 (Gen1) 1 x Location Button with LED 1 x MSG LED 1 x Power Button with LED 1 x RJ45 Management LAN
|

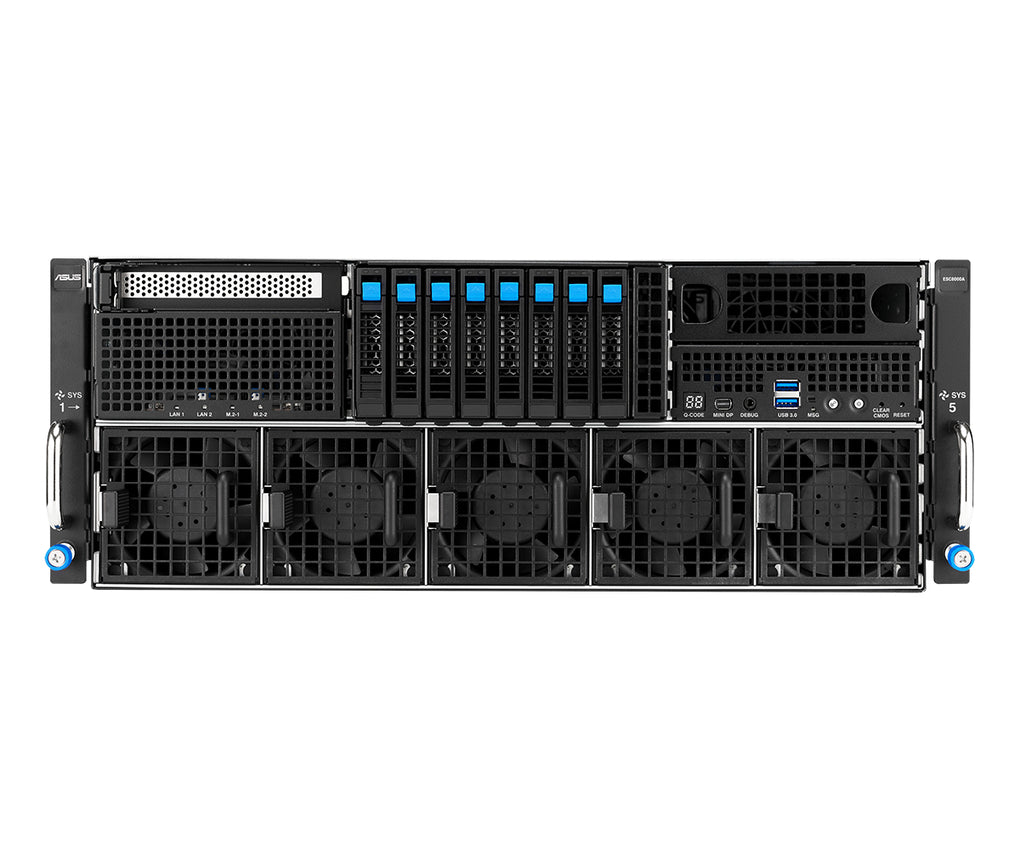

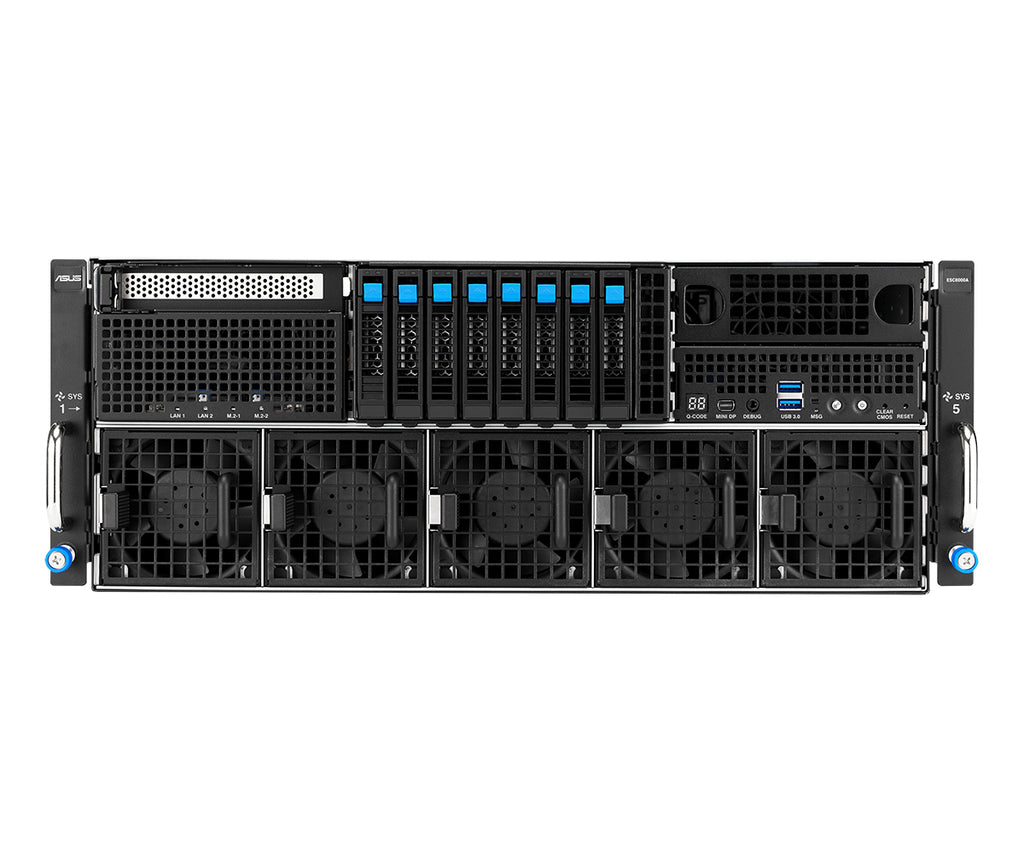

Front Panel I/O |
1 x Q-Code/Port 80 LED 1 x Mini DisplayPort 1 x Debug Port 2 x USB 3.2 (Gen1) 1 x MSG LED 1 x Location Button with LED 1 x Power Button with LED 1 x Clear CMOS switch 1 x Reset switch
|
Drive Support |
8 x 2.5" Hotswap Drive Bays (Requires HBA/RAID Card)
|
OS Support |
Windows Server RedHat Enterprise Linux SuSE Linux Enterprise Server CentOS Ubuntu VMWare
|
Power Supply |
3+1 80 Plus Titanium Power Supply 220-240Vac, 16A (x4), 50/60Hz
|
Cooling |
5 x System Fans 5 x GPU Fans
|
Case Dimensions |
4U Rackmount 31.5" x 17.3" x 6.9" 800 x 438.5 x 175mm Net Weight: 42 kg Gross Weight: 44.23 kg
|
Environmental |
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Non-Operating Humidity: 20% to 95% (non-condensing)
|
Compliance |
BSMI, CB, CE, FCC (Class A), RCM
|
Warranty |
3 Year Manufacturer's Limited Warranty |
