| Manufacturer |
Cincoze
|
| Product ID |
DS-1502-R10
|
| Model Name |
DS-1502
|
| CPU |
Supports Intel Arrow Lake-S Ultra 200S Series CPU
Maximum 65W TDP
Note: 65W TDP Processor requires External Fan Kit
|
| Chipset |
Intel W880
|
| Memory |
2 x DDR5 SODIMM/CSODIMM slots
Supports Unbuffered and ECC Type
Ultra 9 / 7: Supports up to 6400 MHz
Ultra 5: Supports up to 5600 MHz
Maximum 96GB Capacity
|
| Video |
Intel Xe LPG Graphics (CPU Dependent)
VGA Max Resolution: 1920x1200@60Hz
DisplayPort Max Resolution: 3840x2160@60Hz
HDMI Max Resolution: 3840x2160@30Hz
|
| Audio |
Realtek ALC888 High Definition Audio
|
| Storage Technology |
2 x SATA3 6Gb/s Connectors
1 x M.2 2280 slot (M Key, PCI-E 3.0 x4/SATA)
2 x M.2 3042/3052 slots (B Key, PCI-E 3.0 x2/SATA)
1 x M.2 3042/3052 slot (B Key, PCI-E 4.0 x2/USB 3.2 Gen2x1/SATA)
Support RAID 0/1/5/10
|
| Connectivity |
1 x Intel I225 2.5G LAN
1 x Intel I219 GbE LAN
|
| Expansion Slots |
2 x PCI/PCI-E slot (Max Dimensions: 111x235mm )
2 x M.2 3042/3052 slots (B Key, PCI-E 3.0 x2/SATA)
1 x M.2 3042/3052 slot (B Key, PCI-E 4.0 x2/USB 3.2 Gen2x1/SATA)
2 x SIM Sockets
2 x High Speed CMI Interface for CMI Module Expansion
2 x Low Speed CMI Interface for CMI Module Expansion
1 x CFM-IGN Interface
1 x CFM-TPM Interface
|

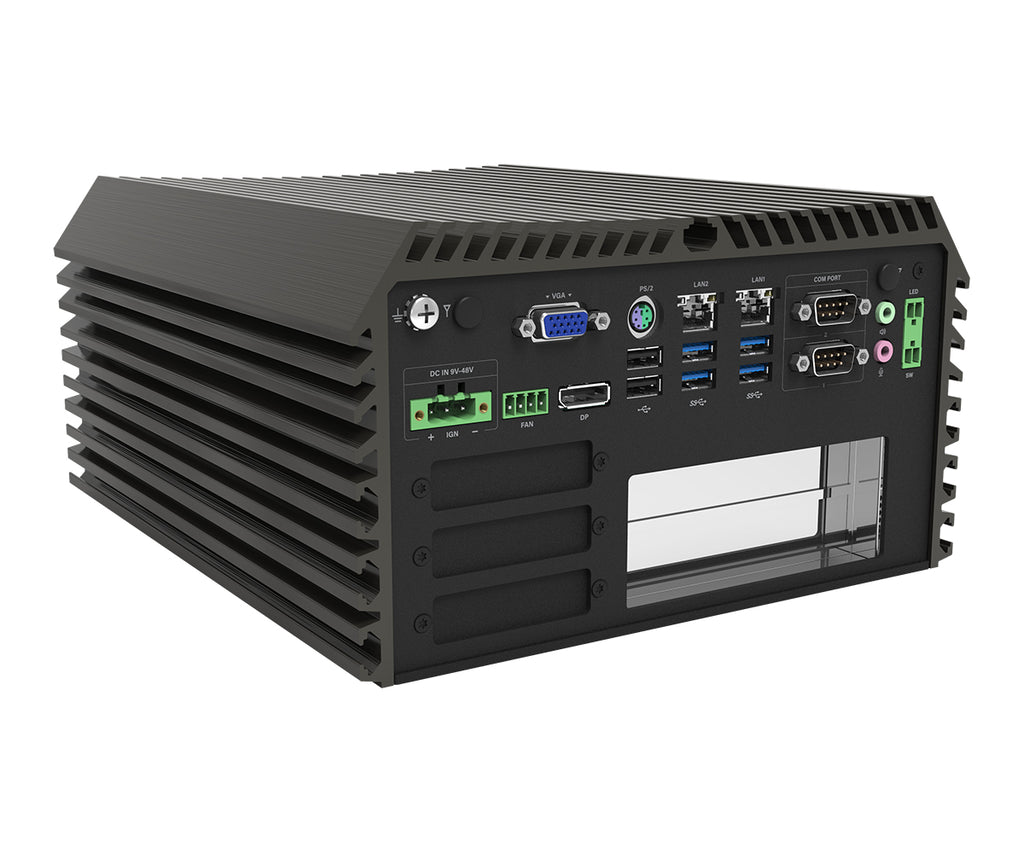

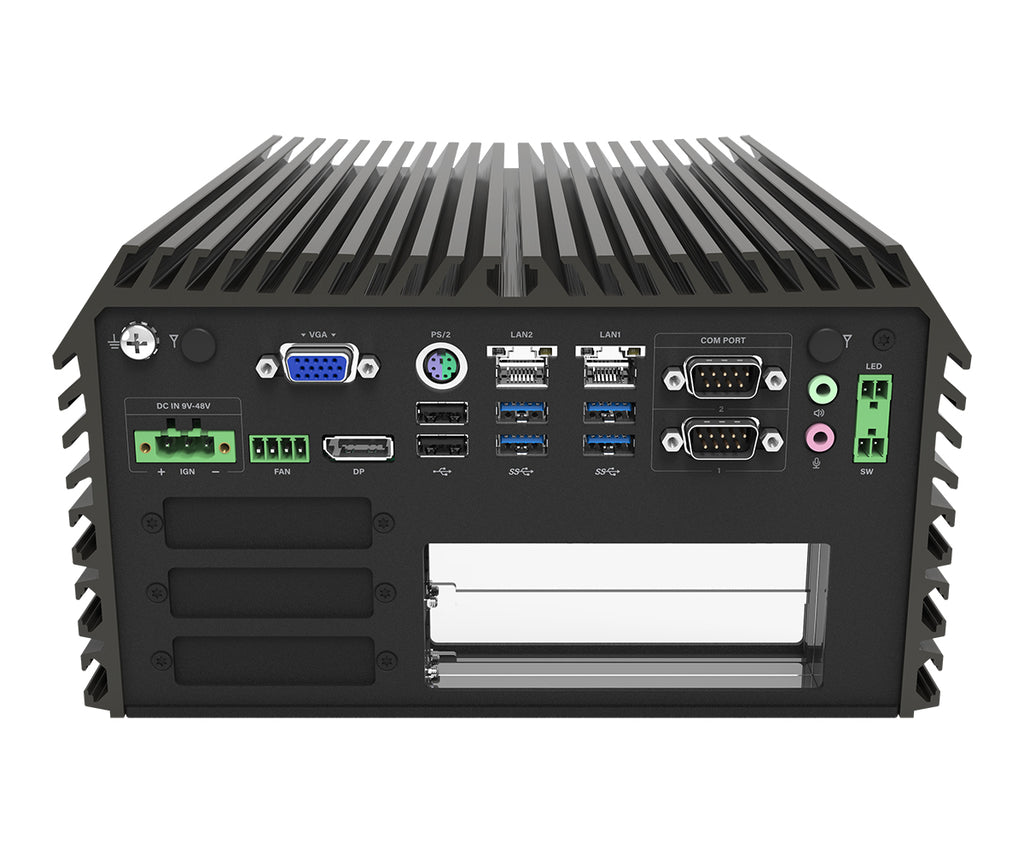

| Rear Panel I/O |
1 x GND Screw
2 x Antenna Cutout
1 x 9-48V Terminal Block DC-IN
1 x VGA
1 x 4-Pin External Fan Terminal Block
1 x DisplayPort
1 x PS/2
2 x USB 2.0
1 x RJ45 2.5GbE LAN
4 x USB 3.2 (Gen1)
1 x RJ45 GbE LAN
2 x COM (RS232/422/485 with Auto Flow Control, 5V/12V)
2 x Audio I/O
1 x 2-pin Remote LED Terminal Block Connector
1 x 2-pin Remote Power Switch Terminal Block Connector
|

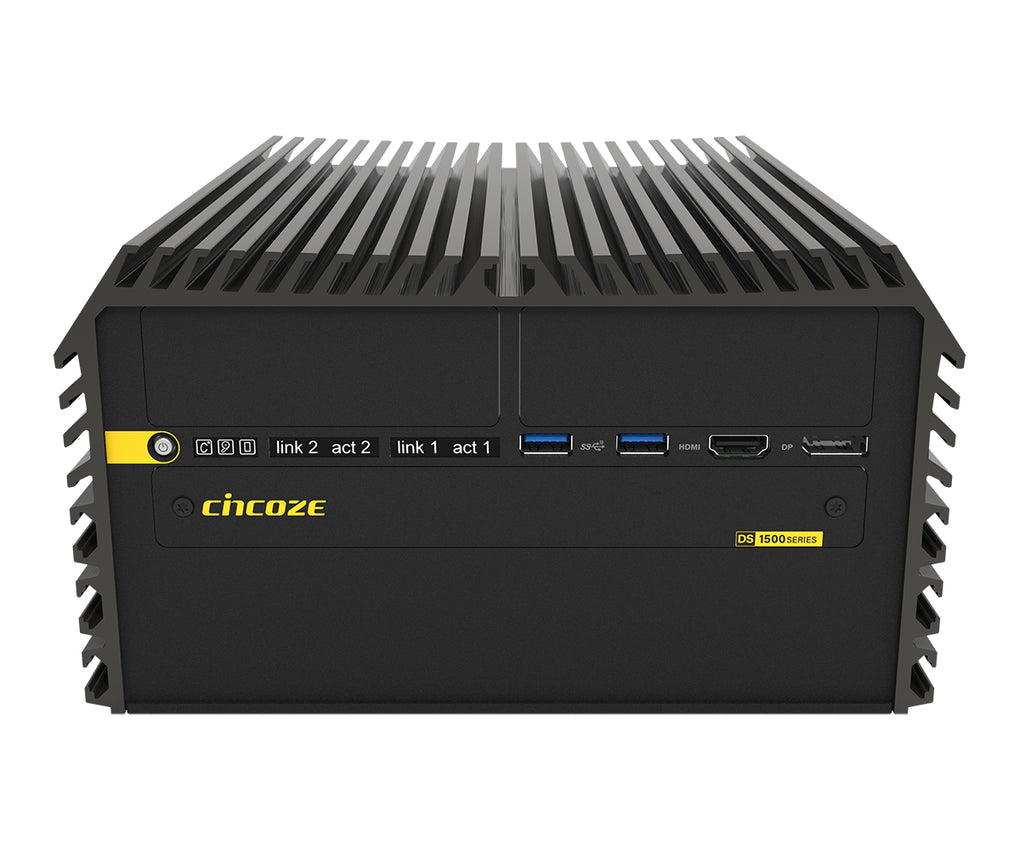

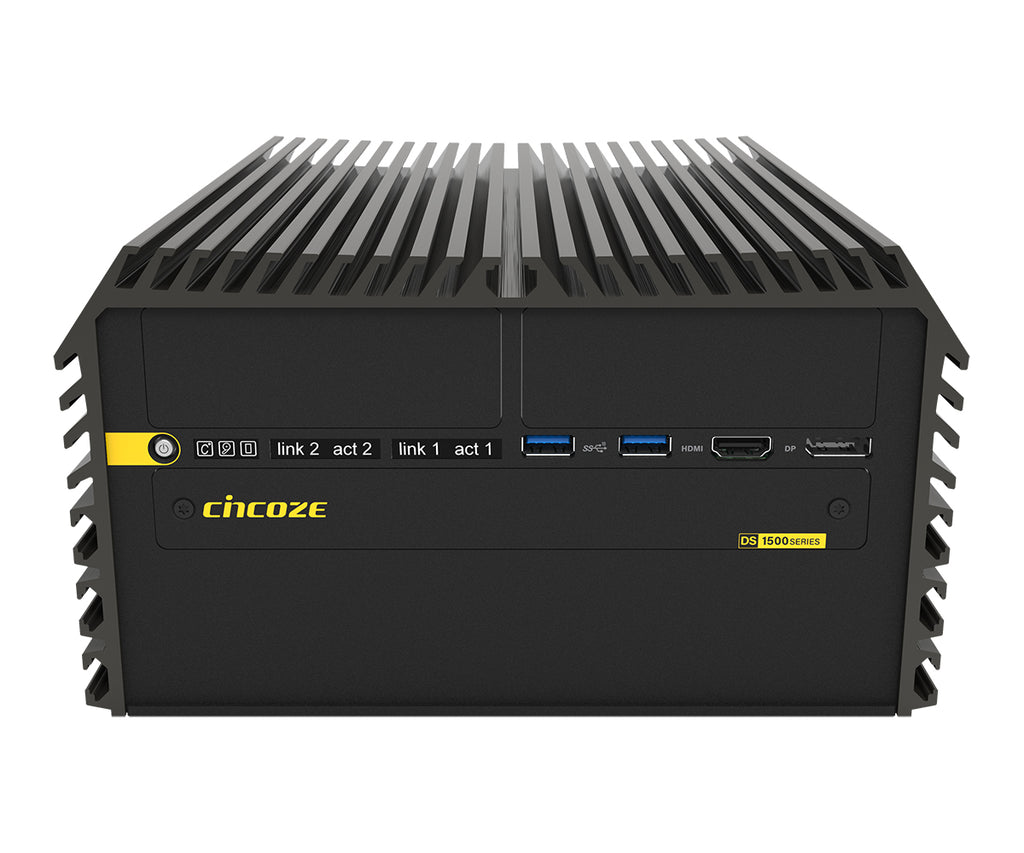

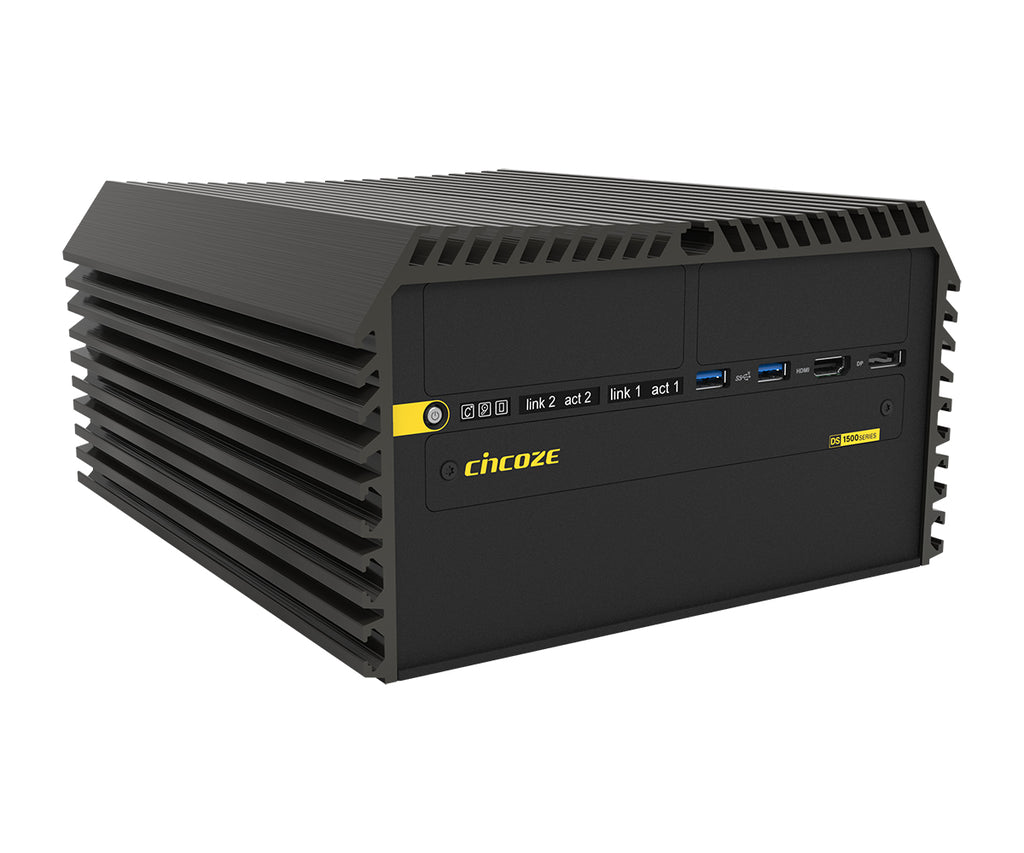

| Front Panel I/O |
1 x Power Button with LED
5 x Status LED (Temperature, HDD, GPIO, LAN)
2 x USB 3.2 (Gen2)
1 x HDMI
1 x DisplayPort
1 x AT/ATX Mode Switch
1 x IGN Setting Switch
1 x Reset Button
|
| Drive Support |
1 x 2.5" Front Accessible SATA Drive Bay
1 x 2.5" Internal SATA Drive Bay
1 x M.2 2280 slot (PCI-E 3.0 x4/SATA)
2 x M.2 3042/3052 slots (B Key, PCI-E 3.0 x2/SATA)
1 x M.2 3042/3052 slot (B Key, PCI-E 4.0 x2/USB 3.2 Gen2x1/SATA)
|
| OS Support |
Windows 11
Windows 10
Ubuntu 24.04
|
| Power Supply |
9-48VDC 3-pin Terminal Block
Over Voltage Protection 51-58V
Protection Type: shut down operating voltage, re-power on at the present level to recover
Over Current Protection: 15A
|
| Case Dimensions |
227 x 261 x 128mm
8.94" x 10.28" x 5.04" (in inches)
|
| Mounting |
Wallmount
|
| Environmental |
35W TDP Processor Operating Temperature: -40°C to 60°C (-40°F to 140°F)
65W TDP Processor Operating Temperature: -40°C to 50°C (-40°F to 122°F) with External Fan Kit
Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 95% @ 60°C (Non-Condensing)
Vibration: MIL-STD-810H
Shock: MIL-STD-810H
|
| Compliance |
CE, UKCA, FCC, ICES-003 Class A
|
| Warranty |
2-Year Manufacturer's Limited Warranty
|
