Manufacturer	Cincoze
Product ID	DS-1500-R10
Model Name	DS-1500
CPU	Supports Intel Arrow Lake-S Ultra 200S Series CPU Maximum 65W TDP Note: 65W TDP Processor requires External Fan Kit
Chipset	Intel W880
Memory	2 x DDR5 SODIMM/CSODIMM slots Supports Unbuffered and ECC Type Ultra 9 / 7: Supports up to 6400 MHz Ultra 5: Supports up to 5600 MHz Maximum 96GB Capacity
Video	Intel Xe LPG Graphics (CPU Dependent) VGA Max Resolution: 1920x1200@60Hz DisplayPort Max Resolution: 3840x2160@60Hz HDMI Max Resolution: 3840x2160@30Hz
Audio	Realtek ALC888 High Definition Audio
Storage Technology	2 x SATA3 6Gb/s Connectors 1 x M.2 2280 slot (M Key, PCI-E 3.0 x4/SATA) 2 x M.2 3042/3052 slots (B Key, PCI-E 3.0 x2/SATA) 1 x M.2 3042/3052 slot (B Key, PCI-E 4.0 x2/USB 3.2 Gen2x1/SATA) Support RAID 0/1/5/10
Connectivity	1 x Intel I225 2.5G LAN 1 x Intel I219 GbE LAN
Expansion Slots	2 x M.2 3042/3052 slots (B Key, PCI-E 3.0 x2/SATA) 1 x M.2 3042/3052 slot (B Key, PCI-E 4.0 x2/USB 3.2 Gen2x1/SATA) 2 x SIM Sockets 2 x High Speed CMI Interface for CMI Module Expansion 2 x Low Speed CMI Interface for CMI Module Expansion 1 x CFM-IGN Interface 1 x CFM-TPM Interface

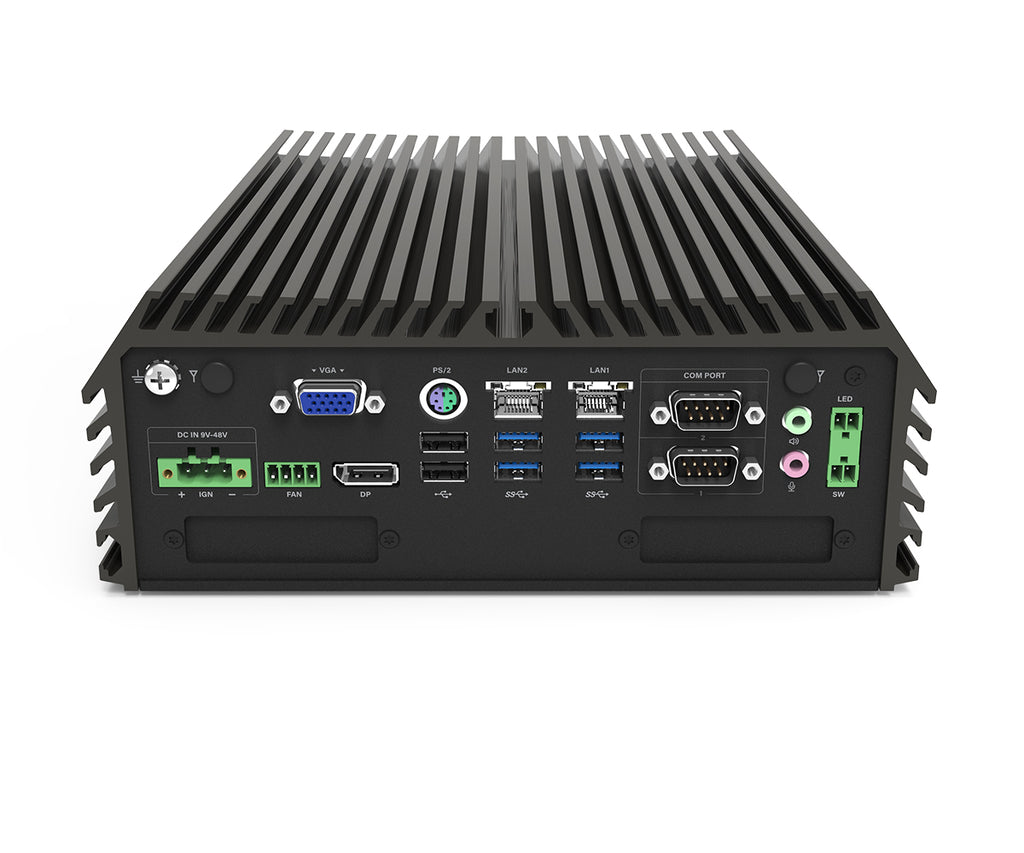

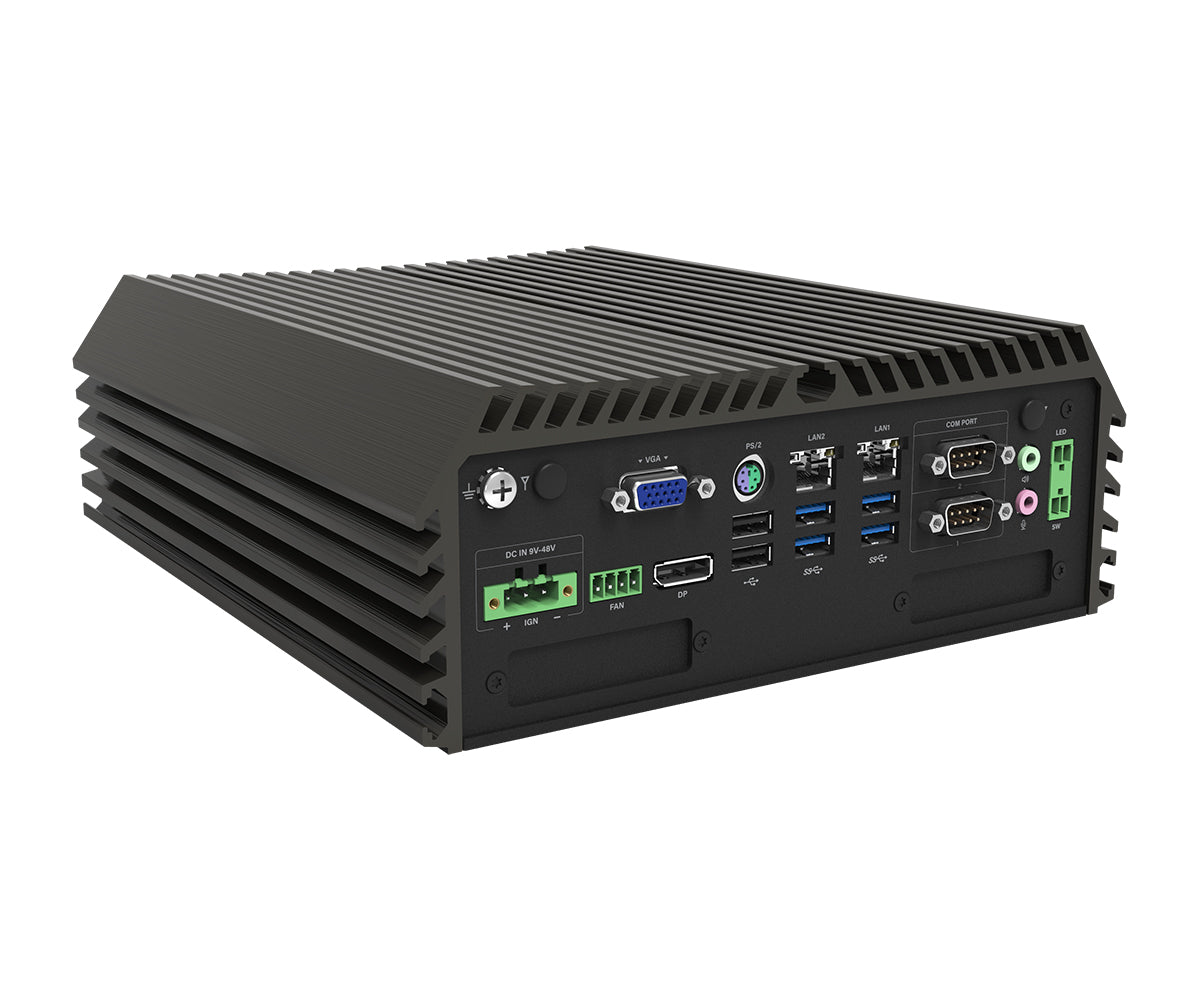

Rear Panel I/O	1 x GND Screw 2 x Antenna Cutout 1 x 9-48V Terminal Block DC-IN 1 x VGA 1 x 4-Pin External Fan Terminal Block 1 x DisplayPort 1 x PS/2 2 x USB 2.0 1 x RJ45 2.5GbE LAN 4 x USB 3.2 (Gen1) 1 x RJ45 GbE LAN 2 x COM (RS232/422/485 with Auto Flow Control, 5V/12V) 2 x Audio I/O 1 x 2-pin Remote LED Terminal Block Connector 1 x 2-pin Remote Power Switch Terminal Block Connector

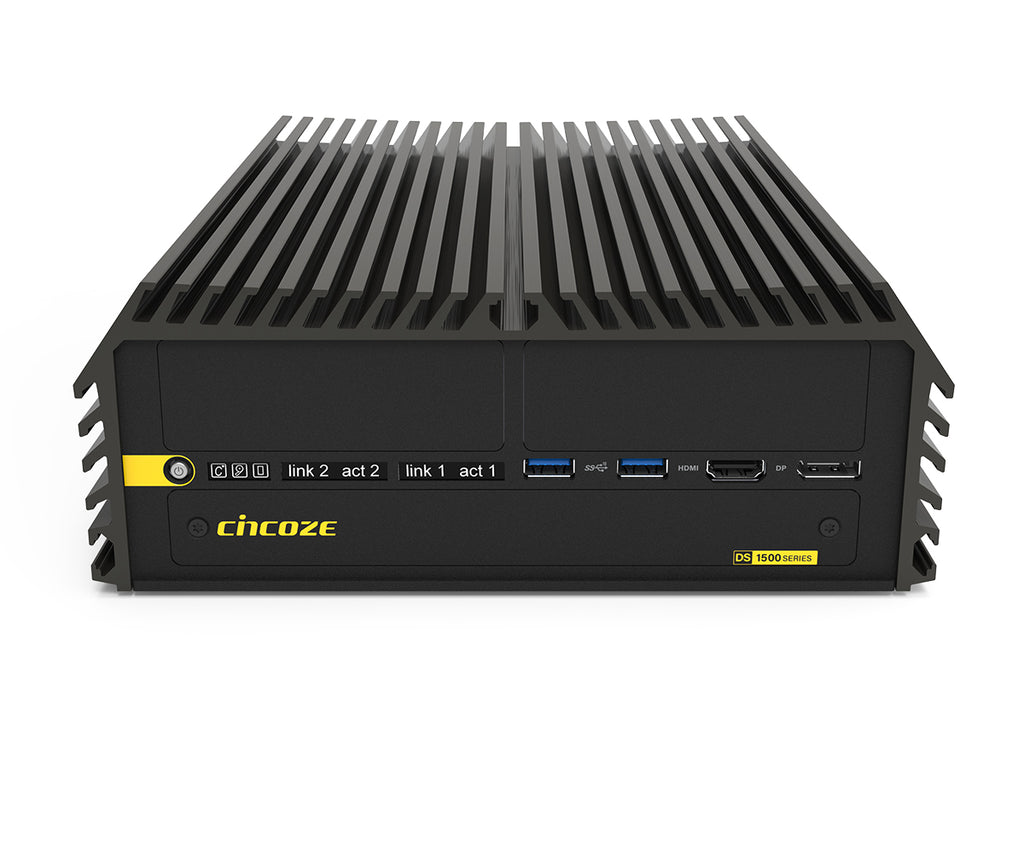

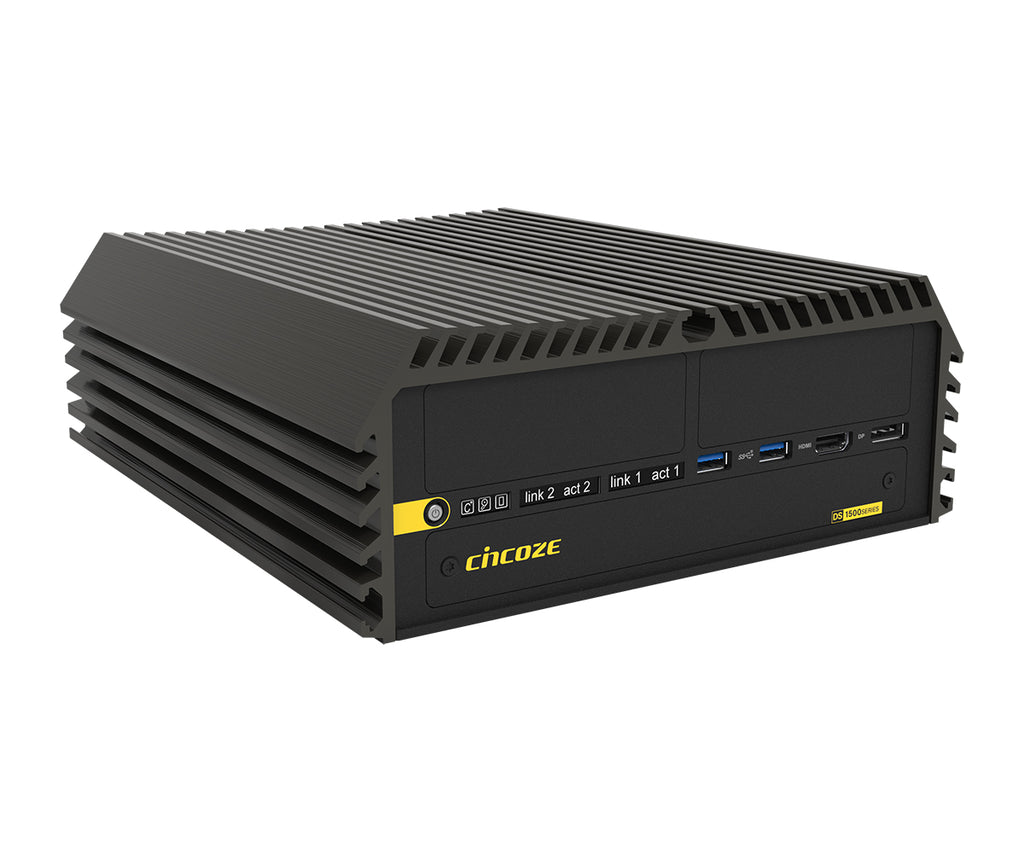

Front Panel I/O	1 x Power Button with LED 5 x Status LED (Temperature, HDD, GPIO, LAN) 2 x USB 3.2 (Gen2) 1 x HDMI 1 x DisplayPort 1 x AT/ATX Mode Switch 1 x IGN Setting Switch 1 x Reset Button
Drive Support	1 x 2.5" Front Accessible SATA Drive Bay 1 x 2.5" Internal SATA Drive Bay 1 x M.2 2280 slot (PCI-E 3.0 x4/SATA) 2 x M.2 3042/3052 slots (B Key, PCI-E 3.0 x2/SATA) 1 x M.2 3042/3052 slot (B Key, PCI-E 4.0 x2/USB 3.2 Gen2x1/SATA)
OS Support	Windows 11 Windows 10 Ubuntu 24.04
Power Supply	9-48VDC 3-pin Terminal Block Over Voltage Protection 51-58V Protection Type: shut down operating voltage, re-power on at the present level to recover Over Current Protection: 15A
Case Dimensions	227 x 261 x 88mm 8.94" x 10.28" x 3.46" (in inches)
Mounting	Wallmount
Environmental	35W TDP Processor Operating Temperature: -40°C to 60°C (-40°F to 140°F) 65W TDP Processor Operating Temperature: -40°C to 50°C (-40°F to 122°F) with External Fan Kit Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Relative Humidity: 95% @ 60°C (Non-Condensing) Vibration: MIL-STD-810H Shock: MIL-STD-810H
Compliance	CE, UKCA, FCC, ICES-003 Class A
Warranty	2-Year Manufacturer's Limited Warranty
