Manufacturer	MSI
Part Number	D3052GB2N-25G
Model Name	D3052
CPU	Supports AMD EPYC 4004 Series Processors Supports AMD Ryzen 7000 Series Processors Up to 170W TDP Socket AM5
Chipset	AMD B650
Memory	Supports 4 x DDR5 DIMM slots ECC/Non-ECC UDIMM 5200 MT/s (1DPC) and 3600 MT/s (2DPC) Maximum 192GB Capacity
Video	AST2600 BMC HDMI Requires Integrated Graphics from CPU
Audio	N/A
Storage Technology	4 x SATA3 Ports (1 x SATADOM Support) 2 x SATA2 Ports 1 x M.2 22110/2280 slots (PCI-E 4.0 x4)
Connectivity	2 x Intel E810-XXVAM2 25G LAN Both supports NCSI 1 x Realtek RTL8211FD-CG GbE Dedicated Management LAN Supports IPMI 2.0 and Redfish
Expansion Slots	1 x PCI-E 5.0 x16 slot 1 x PCI-E 4.0 x8 slot (x4 Signal)
Power	1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector 1 x 4-pin SATA Power Connector 1 x 2-pin SATA DOM Power Connector

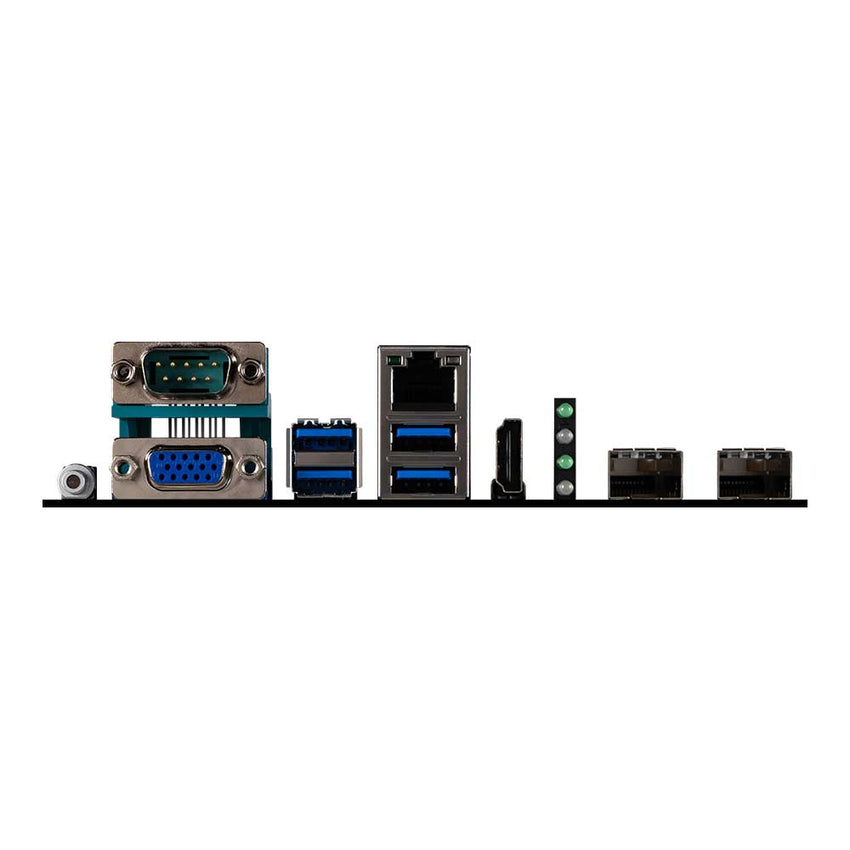

Rear I/O	1 x UID Button with LED 1 x COM 1 x VGA 4 x USB 3.2 (Gen1) 1 x RJ45 GbE Management LAN 1 x HDMI 4 x Status LED 2 x SFP28 25G LAN
Onboard I/O Headers	1 x USB 3.2 (Gen1) header (Supports 2 ports) 1 x USB 3.2 (Gen1) Type-A 1 x SPI TPM header 1 x COM header 1 x Buzzer 1 x Chassis Intrusion header 1 x Front Panel header 3 x I2C headeres 1 x IPMB headers 1 x GPIO headers 1 x PMBus header 6 x 4-pin Fan headers
Form Factor	Micro ATX 9.6" x 9.6" 243.84 x 243.84mm
Environmental	Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-Operating Temperature: -20°C to 70°C (-4°F to 158°F) Non-Operating Relative Humidity: 5% to 85% (non-condensing)
Compliance	CE, FCC (Class A)
Warranty	2-Year Manufacturer's Limited Warranty
