Manufacturer	MSI
Part Number	D3051GB2N-1G
Model Name	D3051
CPU	Supports AMD EPYC 4004 Series Processors Supports AMD Ryzen 7000 Series Processors Up to 170W TDP Socket AM5
Chipset	AMD B650
Memory	Supports 4 x DDR5 DIMM slots ECC/Non-ECC UDIMM 5200 MT/s (1DPC) and 3600 MT/s (2DPC) Maximum 192GB Capacity
Video	AST2600 BMC
Audio	N/A
Storage Technology	4 x SATA3 Ports (1 x SATADOM Support) 2 x SATA2 Ports 2 x M.2 22110/2280 slots (PCI-E 4.0 x4) Note: One M.2 shares link with PCIE_2 slot
Connectivity	2 x Intel I210AT 1G LAN  JLANCONN1 (L) support shared NIC 1 x Realtek RTL8211FD-CG GbE Dedicated Management LAN Supports IPMI 2.0 and Redfish
Expansion Slots	1 x PCI-E 5.0 x16 slot 1 x PCI-E 4.0 x8 slot (x4 Signal) Note: Shared link with M2_1
Power	1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector 1 x 4-pin SATA Power Connector 1 x 2-pin SATA DOM Power Connector

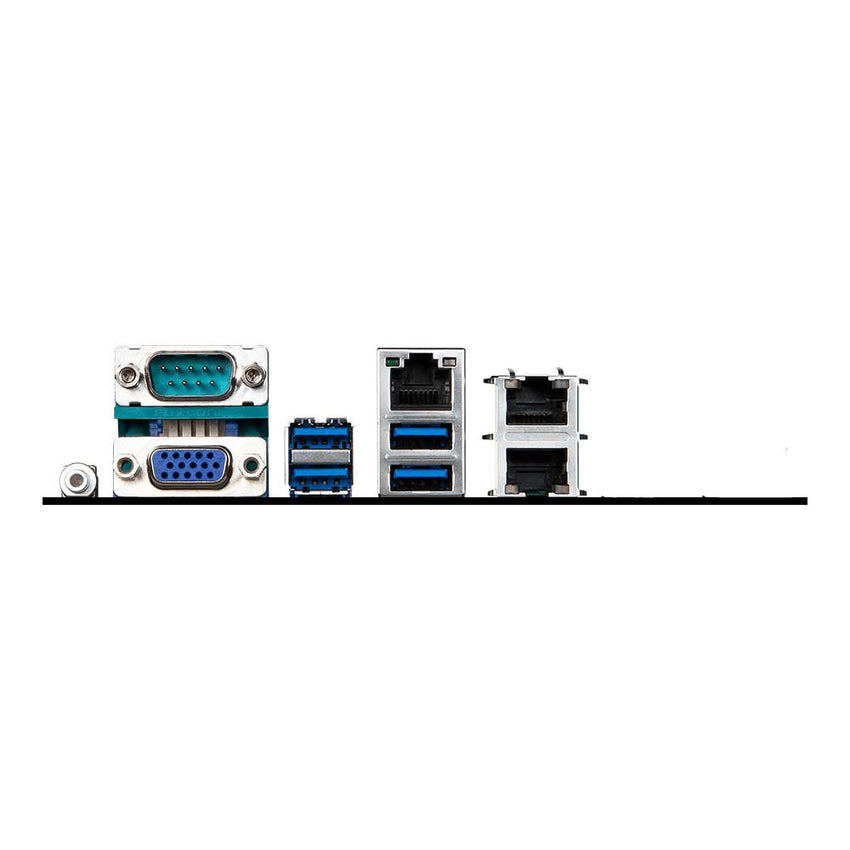

Rear I/O	1 x UID Button with LED 1 x COM 1 x VGA 4 x USB 3.2 (Gen1) 1 x RJ45 GbE Management LAN 2 x RJ45 GbE LAN
Onboard I/O Headers	1 x Front Panel Connector 1 x Chassis Intrusion header 1 x USB 2.0 Type A 1 x USB 3.2 Port Box Connector 1 x SPI TPM header 1 x GPIO connector 4 x I2C Box headers 1 x IPMB Box header 1 x PMBus Box header 1 x COM Box header
Form Factor	Micro ATX 9.6" x 9.6" 243.84 x 243.84mm
Environmental	Operating Temperature: 0°C to 45°C (32°F to 113°F) Non-Operating Temperature: 0°C to 85°C (32°F to 185°F)
Compliance	CE, FCC (Class A)
Warranty	2-Year Manufacturer's Limited Warranty
