Manufacturer	MSI
Part Number	D1505GB2N-25G-HE
Model Name	D1505
CPU	Supports Intel Xeon E-2400 Processor Socket LGA 1700 Supports up to 95W TDP
Chipset	Intel C266
Memory	Supports 4 x DDR5 DIMM slots ECC/Non-ECC UDIMM 4800 MT/s (1DPC) and 3600 MT/s (2DPC) Maximum 128GB Capacity
Video	AST2600 BMC
Audio	N/A
Storage Technology	1 x SlimSAS 4i (PCI-E 4.0 x4 or 4 x SATA) 1 x SlimSAS 4i (PCI-E 3.0 x4 or 4 x SATA) 2 x SlimSAS 4i (PCI-E 4.0 x4) Supports Intel SATA RAID 0/1/10/5 1 x M.2 22110/2280 slot (PCI-E 4.0 x4)
Connectivity	2 x Intel E810-XXVAM2 25G Ports Both Support NCSI, only one NCSI LAN port can be enabled at a time 1 x Realtek RTL8211FD-CG GbE Dedicated Management LAN Supports IPMI 2.0 and Redfish
Expansion Slots	1 x PCI-E 5.0 x16 slot 1 x PCI-E 4.0 x8 slot (x4 Signal)
Power	1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector 1 x 4-pin Power Connector for HDD Backplane

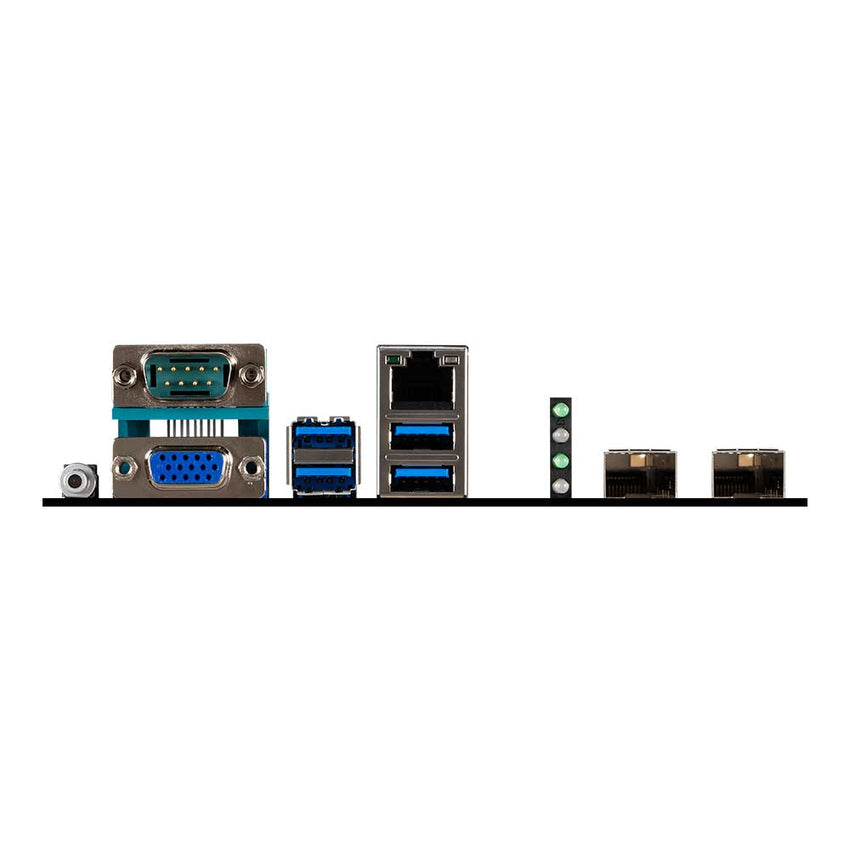

Rear I/O	1 x UID Button with LED 1 x COM 1 x VGA 4 x USB 3.2 (Gen1) 1 x RJ45 GbE Management LAN 4 x Status LED 2 x SFP28 25G LAN
Onboard I/O Headers	1 x USB 3.2 (Gen1) header (Supports 2 ports) 1 x USB 3.2 (Gen1) Type-A 1 x SPI TPM header 1 x COM header 1 x Buzzer 1 x Chassis Intrusion header 1 x Front Panel header 3 x I2C headeres 1 x IPMB headers 1 x GPIO headers 1 x PMBus header 6 x 4-pin Fan headers
Form Factor	Micro ATX 9.6" x 9.6" 243.84 x 243.84mm
Environmental	Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-Operating Temperature: -20°C to 70°C (-4°F to 158°F) Non-Operating Relative Humidity: 5% to 85% (non-condensing)
Compliance	CE, FCC (Class A)
Warranty	2-Year Manufacturer's Limited Warranty
