Manufacturer	MSI
Part Number	D1500GB2N-1G

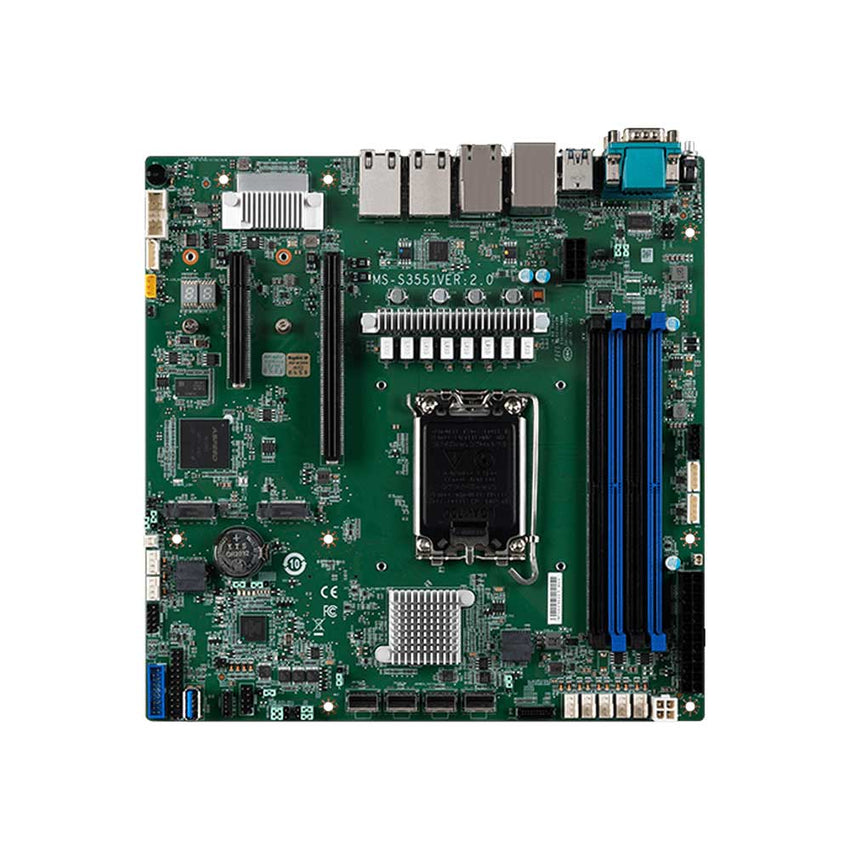

Model Name	D1500
CPU	Supports Intel Xeon E-2400 Processor, LGA 1700 Supports up to 95W TDP
Chipset	Intel C262 PCH
Memory	4 x DDR5 DIMM slots Maximum 128GB Capacity ECC/Non-ECC UDIMM 4800 MT/s
Video	AST2600 BMC
Audio	N/A
Storage Technology	1 x SlimSAS 4i (PCI-E 4.0 x4 or 4 x SATA)  1 x SlimSAS 4i (4 x SATA)  Supports Intel SATA RAID 0/1/10/5 1 x M.2 22110/2280 slots (PCI-E 4.0 x4)
Connectivity	2 x Intel I210AT GbE LAN  1 x Realtek RTL8211FD-CG GbE Dedicated Management LAN Supports IPMI 2.0 and DMTF Redfish API
Expansion Slots	1 x PCI-E 5.0 x16 slot 1 x PCI-E .0 x8 slot (x4 signal)
Power	1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector 1 x 4-pin Power Connector for HDD BP

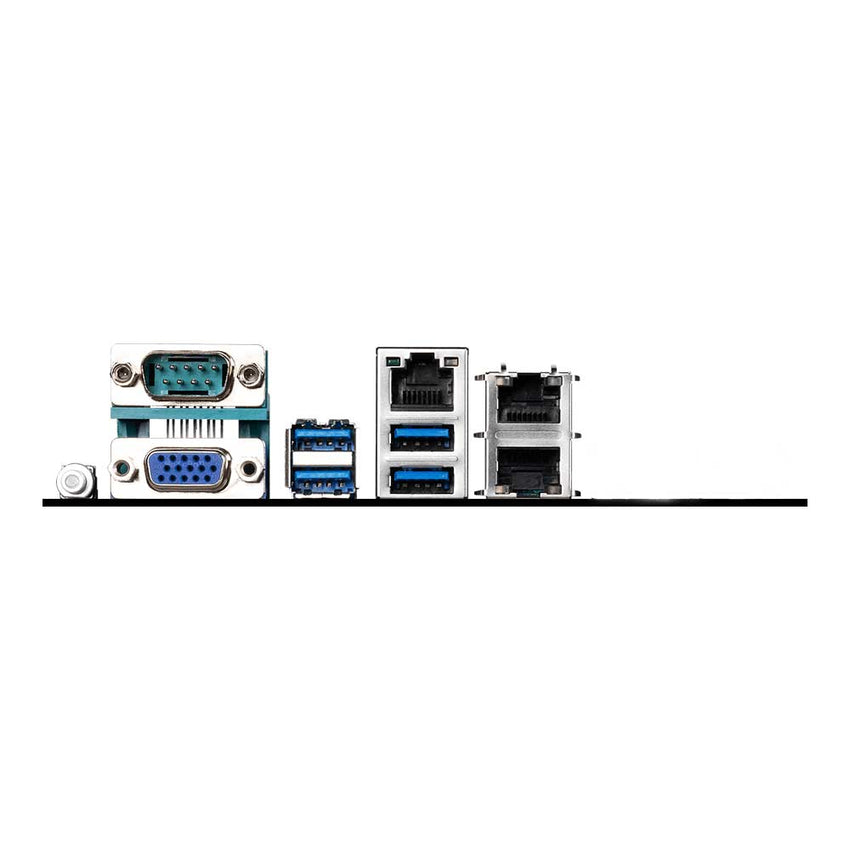

Rear I/O	1 x UID Button with LED 1 x COM 1 x VGA 4 x USB 3.2 (Gen1) 1 x RJ45 GbE Dedicated Management LAN 2 x RJ45 GbE LAN
Onboard I/O Headers	1 x USB 3.2 (Gen1) header 1 x USB 3.2 (Gen1) Type A 1 x SPI TPM header 1 x COM header 1 x Buzzer 1 x Chassis Intrusion header 1 x Front Panel header 1 x I2C headers 1 x IPMB headers 1 x GPIO headers 1 x PMBus header
Form Factor	Micro ATX 9.6" x 9.6" 243.84 x 243.84mm
Environmental	Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-Operating Temperature: -20°C to 70°C (-4°F to 158°F) Storage Humidity: 5% to 85% (non condensing)
Compliance	CE, FCC (Class A)
Warranty	2-Year Manufacturer's Limited Warranty
