| Manufacturer | Jetway |
| Product ID | BFDADN1-N97-IT |
| Model Name | BFDADN1 |
| CPU |
Intel N97 Processor 4 Cores 3.60 GHz 12W TDP, 6 MB Intel Smart Cache |
| Chipset |
SoC Nuvoton TPM 2.0 |
| Memory |
1 x DDR5 SODIMM slot 4800 MHz Maximum 32GB Capacity |
| Video |
Intel UHD Graphics 1.20 GHz 24 Execution Units HDMI 2.0b Max Resolution: 4096x2160@60Hz DisplayPort 1.4 via USB Type-C Max Resolution: 4096x2304@60Hz Supports Triple Displays |
| Audio |
Realtek ALC897/ALC888S HD Audio with 3W Amplifier |
| Storage Technology |
1 x SATA3 6Gb/s Connector 1 x M.2 2280 slot: PCI-E 3.0 x2 (M-Key) |
| Connectivity |
2 x Intel I225-V 2.5GbE LAN Wireless 802.11ac Bluetooth |
| Expansion Slots |
1 x M.2 2230 slot (Occupied by WIFI Module) |

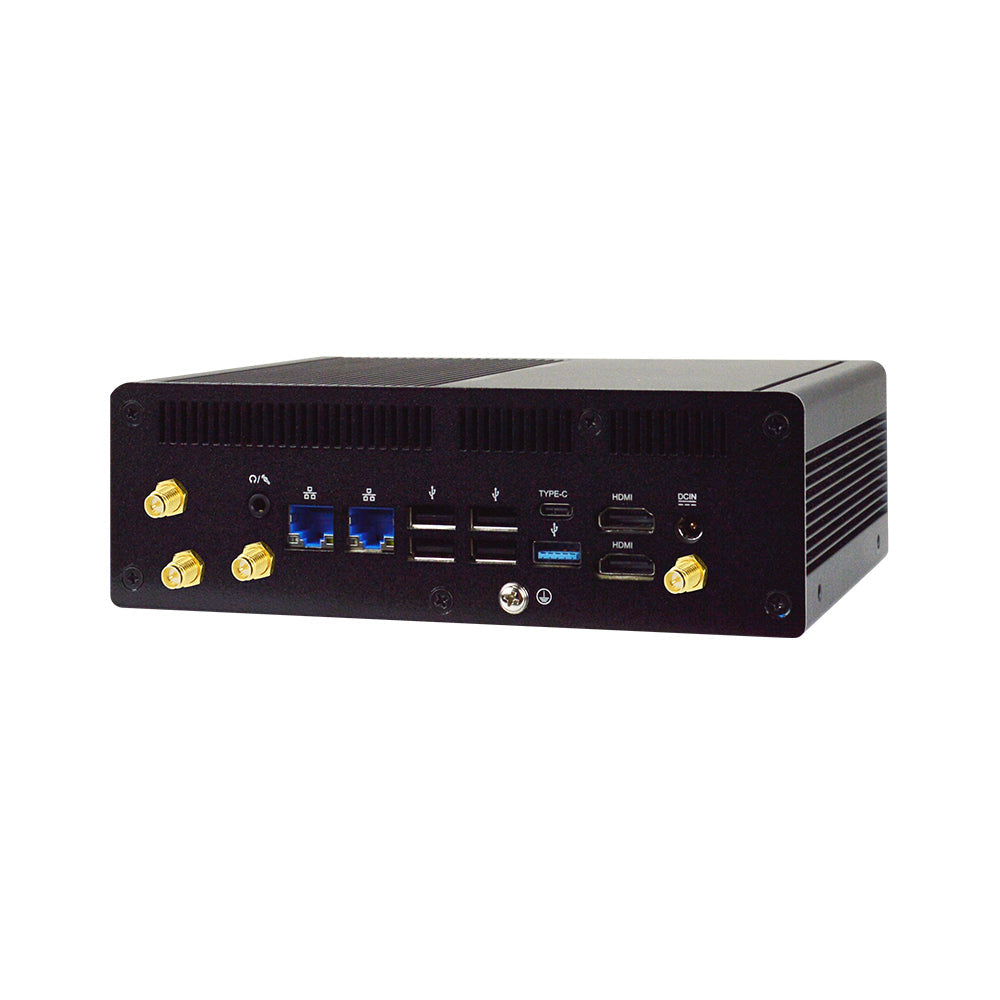

| Rear Panel I/O |
4 x Antenna Holes 1 x Audio Combo I/O 2 x RJ45 2.5GbE LAN 4 x USb 2.0 1 x USB 3.2 (Gen2) Type-C (Supports DP 1.4) 1 x USB 3.2 (Gen2) Type-A 2 x HDMI 2.0b 1 x 12-28V DC-IN |
| Front Panel I/O |
1 x Power Button 1 x Reset Button 2 x Status LED (Power, HDD) 2 x USB 2.0 2 x Audio I/O 4 x COM Cutout |
| Drive Support |
1 x 2.5" SATA Drive Bay (Maximum 9.5mm Height) 1 x M.2 2280 slot (PCI-E 3.0 x2, M-Key) |
| OS Support |
Windows 10 Windows 10 IoT Enterprise 64-bit Windows 11 Windows 11 IoT Enterprise 64-bit CentOS 9, Debian 11.4, Fedora 36-1.5 OpenSUSE 15.4, Ubuntu 22.04, pfSense 2.6.0 OpenBSD 7.1 |
| Power Supply |
12-28V DC-IN 60W 12V AC-DC Adapter |
| Case Dimensions |
193 x 142.4 x 62mm 7.6" x 5.6" x 2.5" (in inches) |
| Mounting |
Includes Wallmount Brackets Includes DIN Rail Kit |
| Environmental |
Operating Temperature with M.2 SSD: -20°C to 60°C (-4°F to 140°F) Operating Temperature with 2.5" SSD: 0°C to 50°C (32°F to 122°F) Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Humidity: 10% to 95% @ 40°C (non-condensing) |
| Compliance |
CE, FCC, ROHS, REACH, ERP For Barebone CE, FCC, TUV, UL, CCC, CB, ErP For Power Adapter |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: BFDADN1-N97-IT
