Manufacturer	Jetway
Product ID	BFDADN1-N150-IT-A1
Model Name	BFDADN1
CPU	Intel N150 Processor 4 Cores 3.60 GHz 6W TDP, 6 MB Intel Smart Cache
Chipset	SoC Nuvoton TPM 2.0
Memory	1 x DDR5 SODIMM slot 4800 MHz Maximum 32GB Capacity
Video	Intel UHD Graphics HDMI 2.0b Max Resolution: 4096x2160@60Hz DisplayPort 1.4 via USB Type-C Max Resolution: 4096x2304@60Hz Supports Triple Displays
Audio	Realtek Audio Codec with 3W Amplifier
Storage Technology	1 x SATA3 6Gb/s Connector 1 x M.2 2280 slot: PCI-E 3.0 x2 (M-Key)
Connectivity	2 x Intel I226-V 2.5GbE LAN Wireless WiFi Bluetooth
Expansion Slots	1 x M.2 2230 slot (Occupied by WiFi Module) 1 x M.2 B-key 3042/3052 (Optional 4G/5G Module)

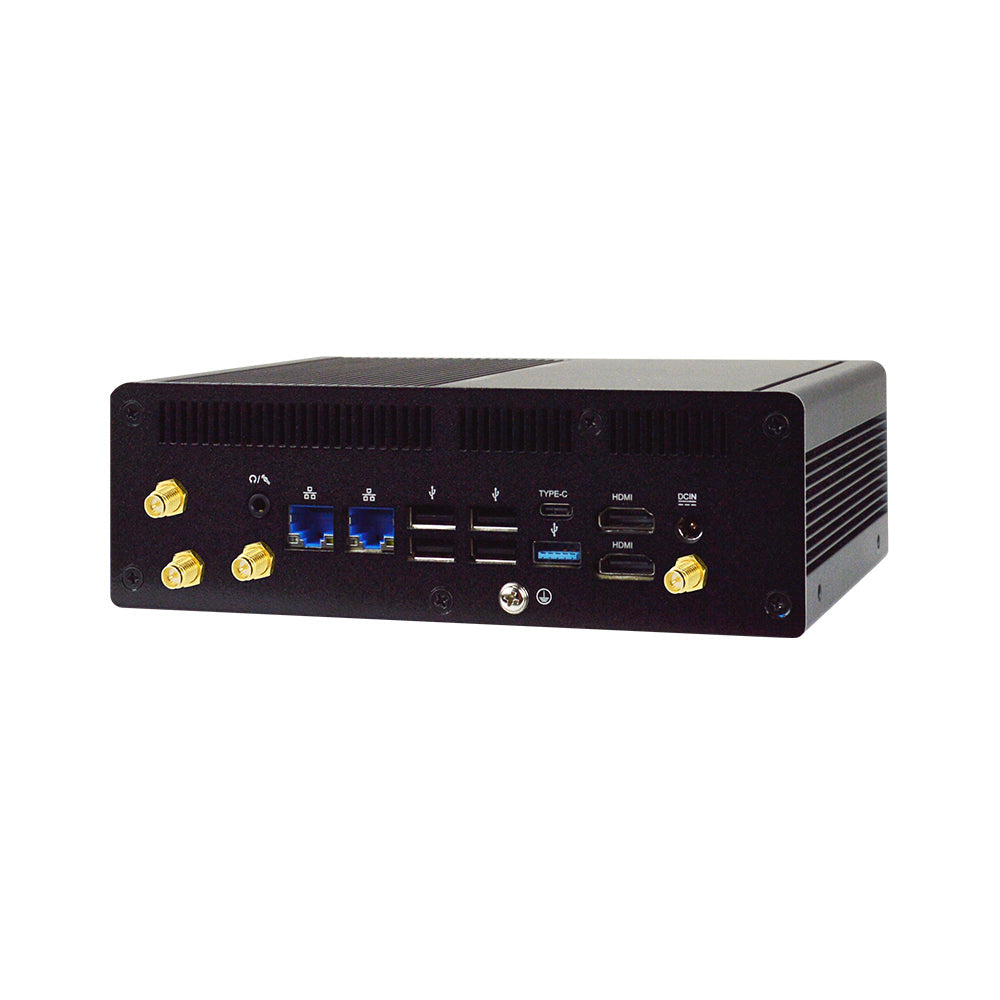

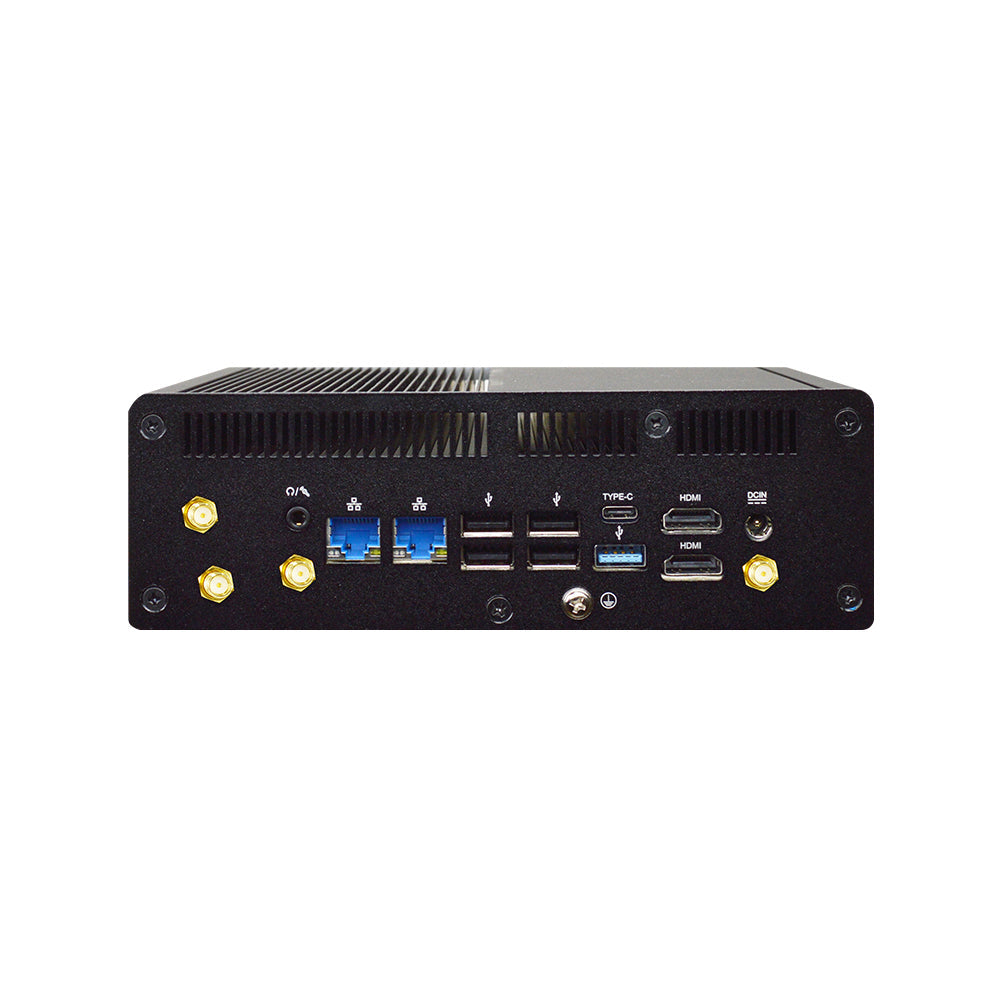

Rear Panel I/O	4 x Antenna Holes 1 x Audio Combo I/O 2 x RJ45 2.5GbE LAN 4 x USB 2.0 1 x USB 3.2 (Gen2) Type-C (Supports DP 1.4) 1 x USB 3.2 (Gen2) Type-A 2 x HDMI 2.0b 1 x 12-28V DC-IN 1 x Grounding Screw

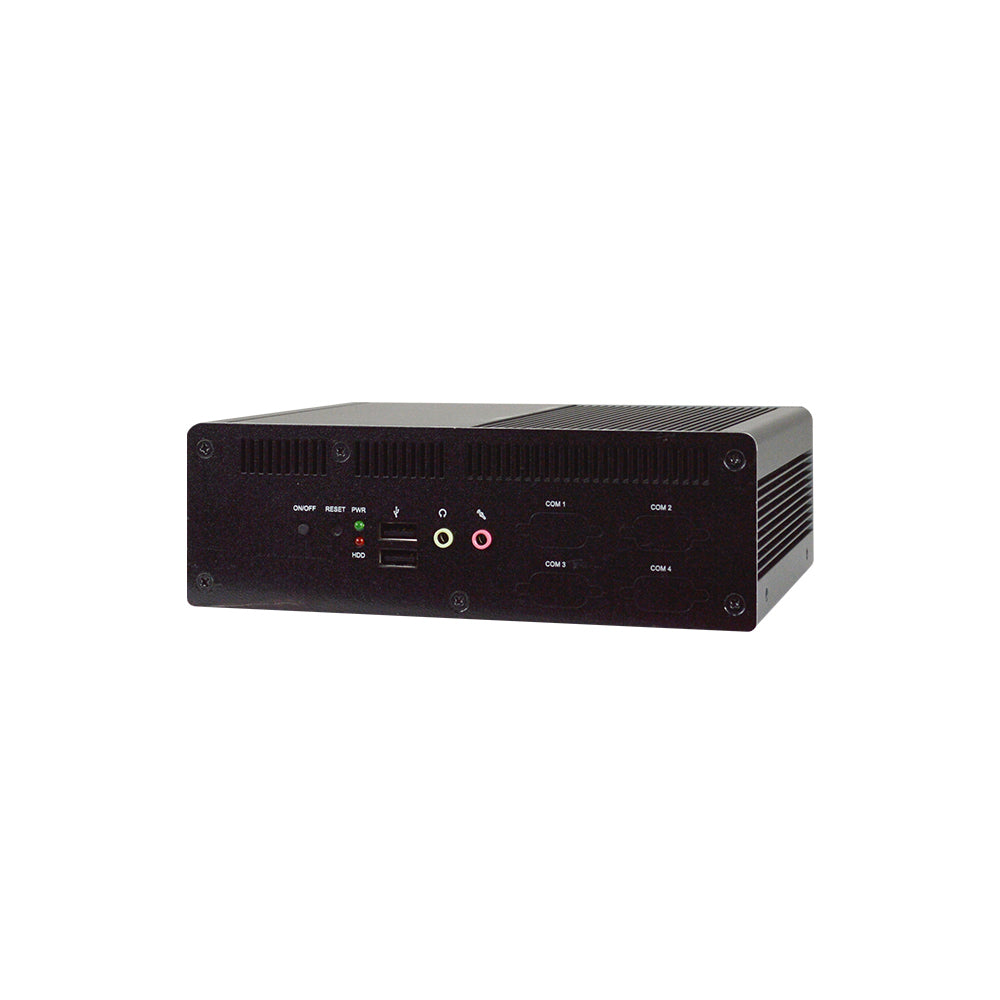

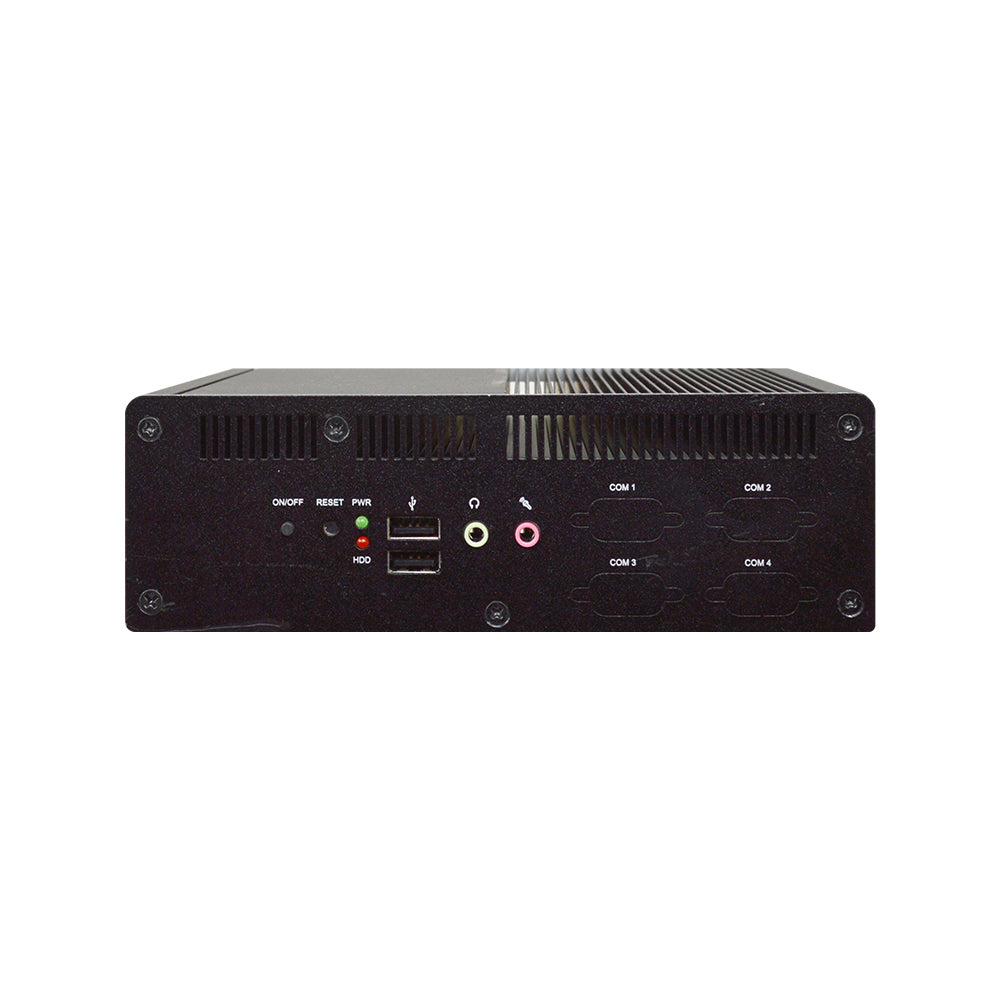

Front Panel I/O	1 x Power Button 1 x Reset Button 2 x Status LED (Power, HDD) 2 x USB 2.0 2 x Audio I/O 4 x COM Cutout (1 x RS-232/422/485, 3 x RS-232)
Drive Support	1 x 2.5" SATA Drive Bay (Maximum 9.5mm Height) 1 x M.2 2280 slot (PCI-E 3.0 x2, M-Key)
OS Support	Windows 10 Windows 10 IoT Enterprise 64-bit Windows 11 Windows 11 IoT Enterprise 64-bit CentOS 9, Debian 11.4, Fedora 36-1.5 OpenSUSE 15.5, Ubuntu 22.04, RedHat Enterprise 9.2
Power Supply	12-28V DC-IN 60W 12V AC-DC Adapter
Case Dimensions	193 x 142.4 x 62mm 7.6" x 5.6" x 2.44" (in inches)
Mounting	Includes Wallmount Brackets Includes DIN Rail Kit
Environmental	Operating Temperature with M.2 SSD: -20°C to 60°C (-4°F to 140°F) Operating Temperature with 2.5" SSD: 0°C to 50°C (32°F to 122°F) Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Humidity: 10% to 95% @ 40°C (non-condensing)
Compliance	CE, FCC, ROHS, REACH, ERP For Barebone CE, FCC, TUV, UL, CCC, CB, ErP For Power Adapter
Warranty	1-Year Warranty on Parts and Labor
