| Manufacturer |
APLEX Techonlogy |
| Product ID |
AITRON-912EP |
| Model Name |
AITRON - 9E Series |

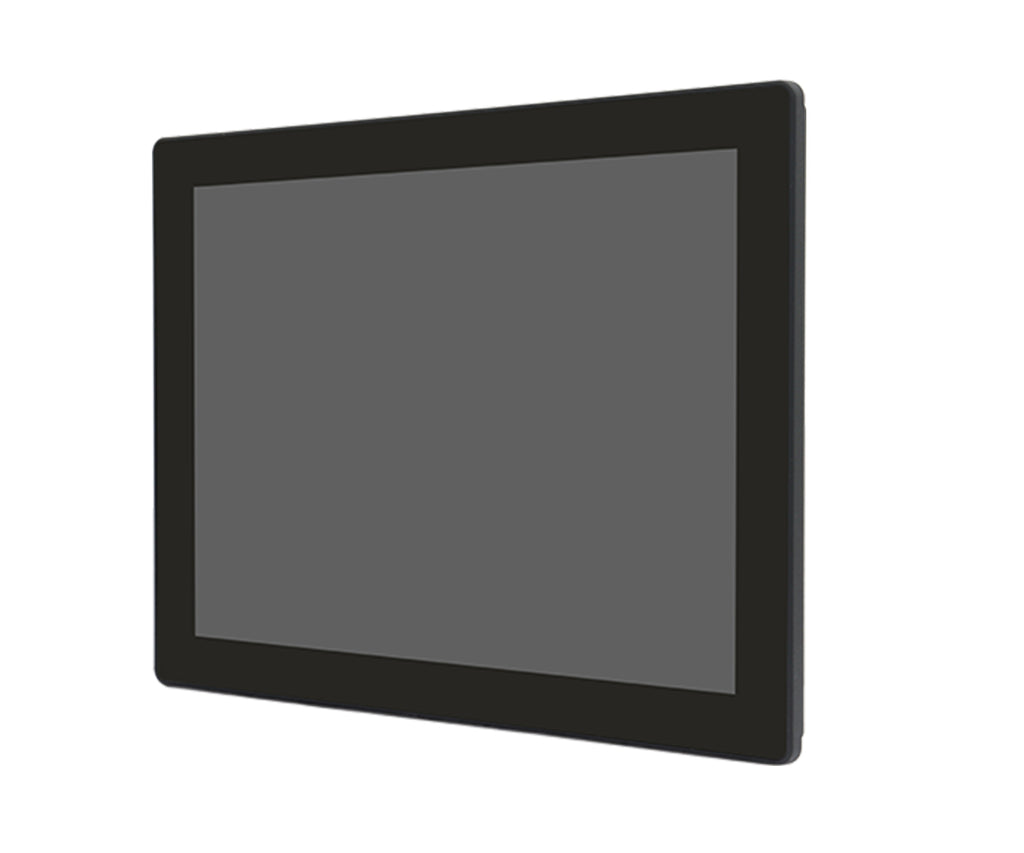

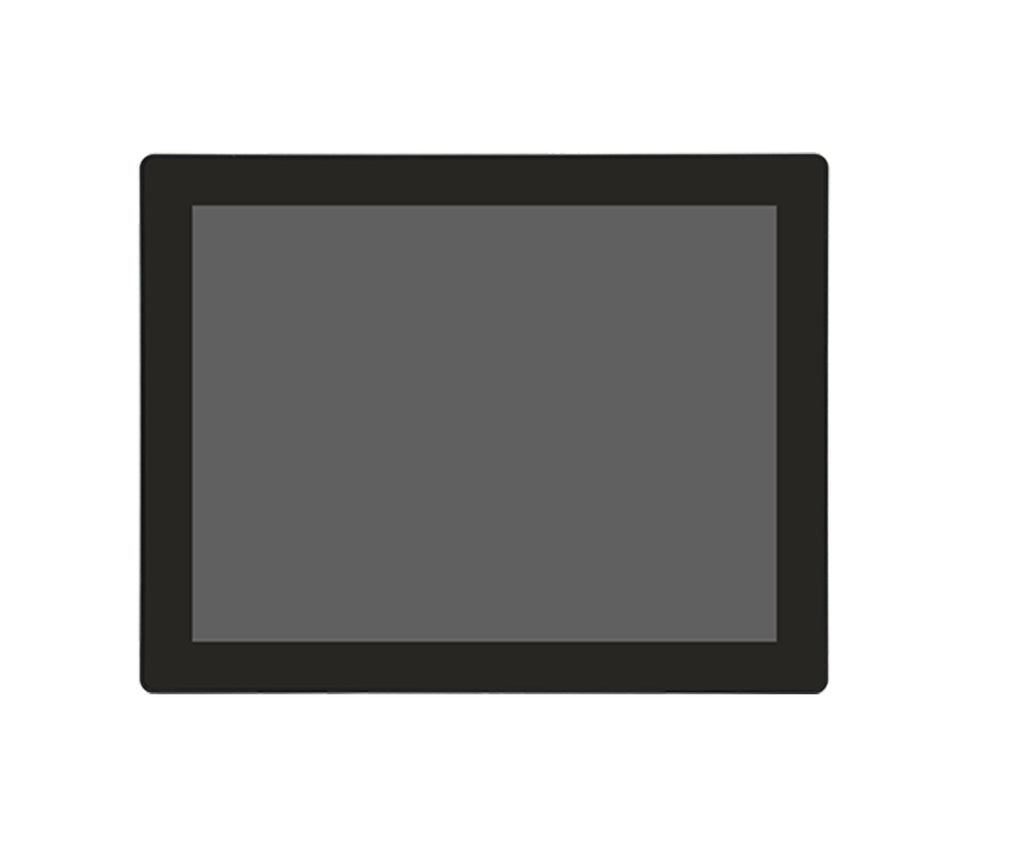

| Display |
12.1" XGA TFT-LCD
Standard Luminance: 350 cd/m2
Max Resolution: 1024x768
Max Color: 16.2M
View Angle: 170(H)/170(V)
Contrast: 800:1
Backlight Lifetime: 30,000 hours
IP 66 Compliant Front Bezel |
| Touch Screen |
Projected Capacitive Touch |
| CPU |
Intel Core Ultra 5 125U
2 P-Cores / 8 E-Cores / 2 LP E-Cores / 14 Threads
LP E-Cores: 700 MHz - 2.1 GHz
E-Cores: 800 MHz - 3.6 GHz
P-Cores: 1.3 - 4.3 GHz
12-57W TDP, 12MB Intel Smart Cache
|
| Chipset |
SoC
Onboard TPM 2.0
|
| Memory |
1 x DDR5 SODIMM slot
Maximum 48GB Capacity
5600 MHz
|
| Video |
Intel Graphics
1.85 GHz
GPU Peak TOPS (Int8): 7
Xe-Cores: 4
DisplayPort Max Resolution: 7680x4320@60Hz
HDMI Max Resolution: 7680x4320@60Hz
TFT-LCD Display Max Resolution: 1024x768
|
| Audio |
Intel Audio |
| Storage Technology |
1 x M.2 2280 slot (PCI-E 3.0 x4, M Key)
|
| Connectivity |
2 x Intel I226V/IT 2.5 GbE LAN
|
| Expansion Slots |
1 x M.2 3042/3052 slot (B Key, PCIe x1/USB 3.2, USB 2.0)
1 x Nano SIM Holder
1 x M.2 2230 slot (E Key, PCIe x1/USB 2.0)
|

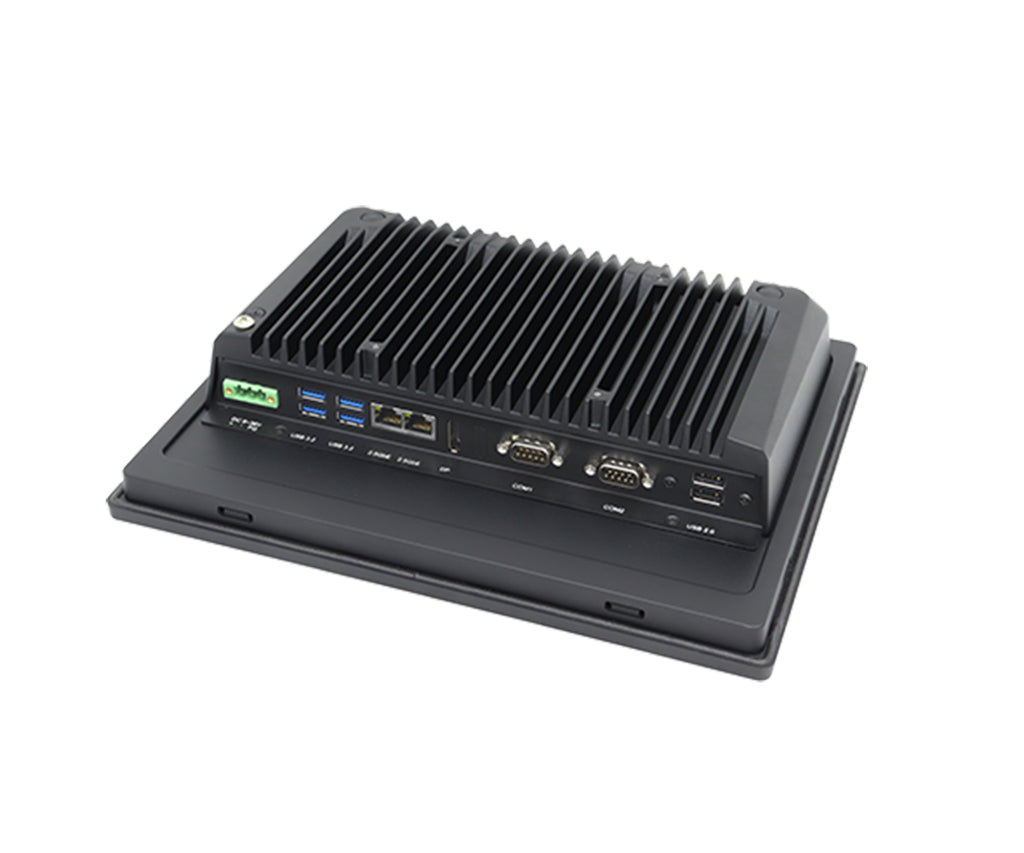

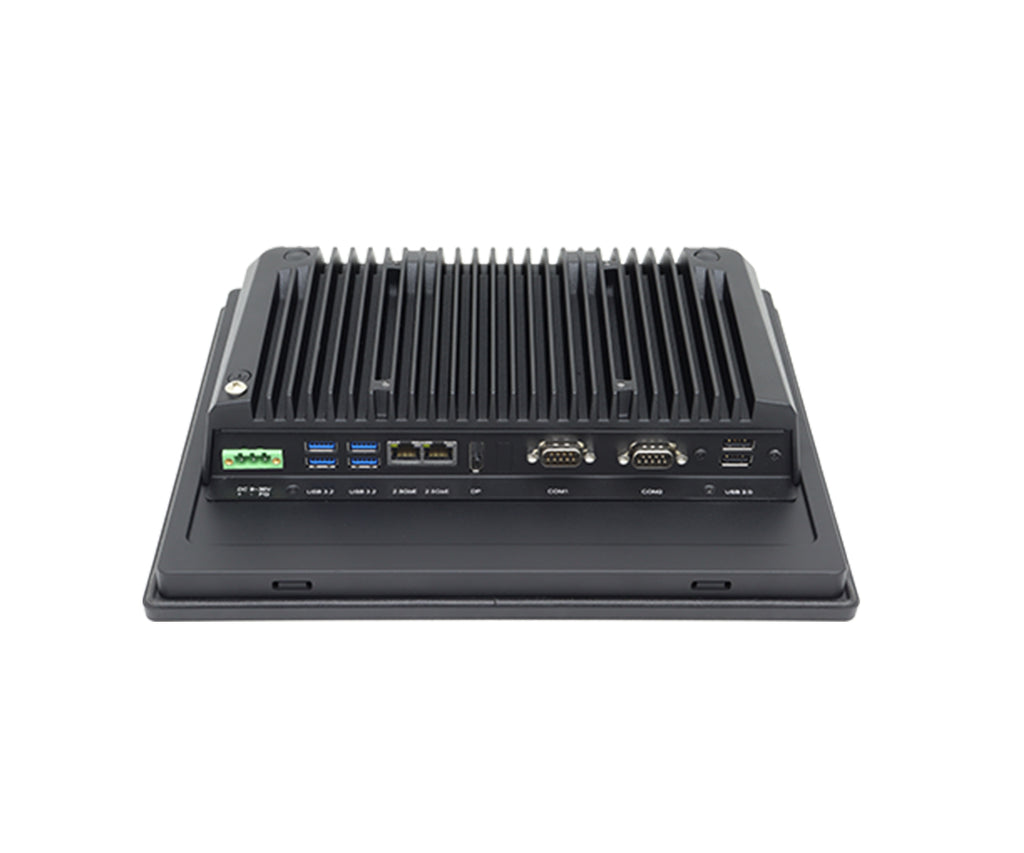

| Rear Panel I/O |
1 x 3-Pin 9-36V Terminal Block
4 x USB 3.2 (Gen1)
2 x RJ45 2.5GbE LAN
1 x DisplayPort
2 x COM (RS232/422/485)
2 x USB 2.0
|
| Drive Support |
1 x M.2 2280 slot (PCI-E 3.0 x4)
|
| OS Support |
Windows 10 IoT Enterprise 2021 LTSC or later
Windows 11 (21H2) or later
Linux 24.04
|
| Power Supply |
9-36V 3-Pin Terminal Block DC-IN
Includes Power Adapter
|
| Case Dimensions |
291 x 230 x 64mm
11.5" x 9.1" x 2.5" (in inches)
|
| Mounting |
Panel Mount
VESA 100x100
|
| Environmental |
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Non-Operating Temperature: -30°C to 70°C (-22°F to 158°F)
Humidity: 10% to 95% (non-condensing)
|
| Compliance |
CE/FCC, Class A |
| Warranty |
1-Year Warranty on Parts and Labor |
