Manufacturer	APLEX Technology
Product ID	AITRON-912DP

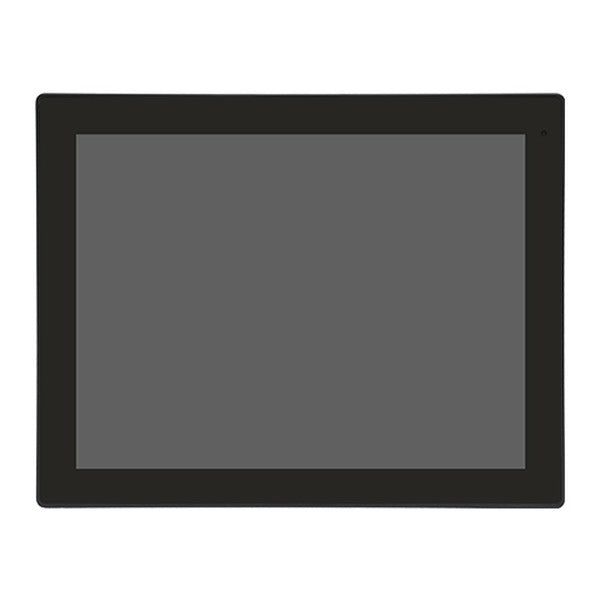

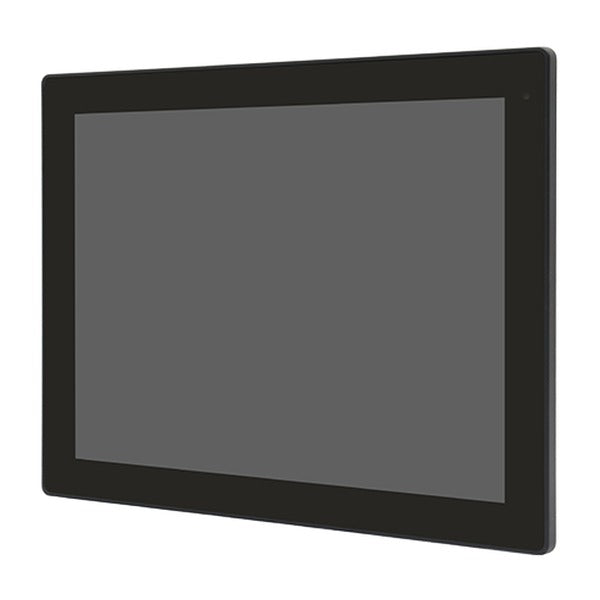

Display	12.1" XGA TFT-LCD Standard Luminance: 350 cd/m2 Max Resolution: 1024x768 Max Color: 16.2M View Angle: 170(H)/170(V) Contrast: 800:1 Backlight Lifetime: 30,000 hours IP66 Compliant Front Bezel
Touch Screen	Projected Capacitive Multi-Touch (7H Anti-Scratch) Interface: USB Light Transmission: 90%
CPU	Intel Core i3-1215U 2P+4E (6 Cores / 8 Threads) 1.2 GHz Base Clock up to 4.40 GHz Max Turbo TDP: 15W (55W Max Turbo Power) 10MB Intel Smart Cache
System Chipset	SoC
BIOS	AMI UEFI
Memory	2 x DDR4 SO-DIMM slots Maximum 64GB Capacity 3200MHz
TPM	Onboard TPM 2.0 (SPI, Infineon SLM8670)
Watchdog Timer	1~255 sec (system)
Wake on LAN	Supported
Video	Intel UHD Graphics up to 1.10 GHz HDMI 2.1 Max Resolution: 4096x2304@60Hz TFT-LCD Display Max Resolution: 1024x768
Storage Technology	1 x M.2 2280 slot (PCI-E 3.0 x4, M Key)
Connectivity	2 x 1GbE LAN (Intel I210-AT / I219-V)
Expansion Slots	1 x M.2 2230 E-Key (USB 2.0, PCIe x1) for optional Wi-Fi/BT module 1 x M.2 3042/3052 B-Key (PCIe x1, USB 3.2 Gen1, USB 2.0) for optional LTE/5G module 1 x Nano-SIM slot

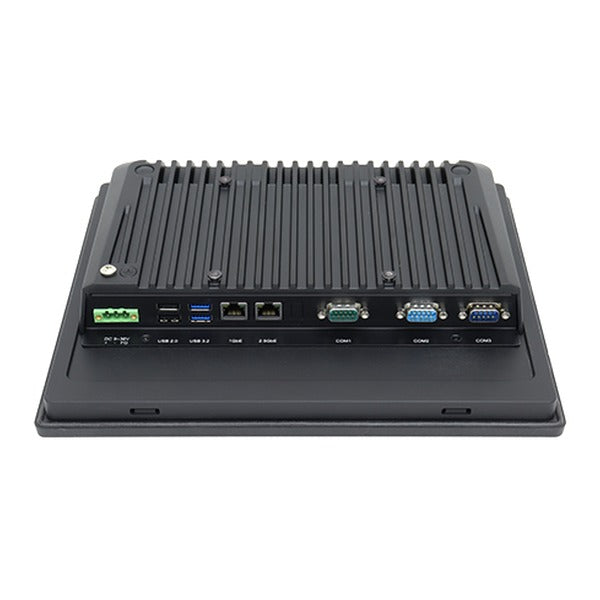

Rear Panel I/O	1 x 3-Pin 9-36V Terminal Block 2 x USB 3.2 (Gen1) Type-A 2 x USB 2.0 Type-A 2 x RJ45 1GbE LAN 1 x HDMI 2.1 2 x DB9 (RS-232/422/485, COM1/COM2, BIOS selectable, RS-232 default) 1 x DB9 (RS-232, COM3 standard; optionally replaced with 2 x USB 2.0 Type-A)
Drive Support	1 x M.2 2280 slot (PCI-E 3.0 x4)
OS Support	Windows 10 IoT Enterprise 2021 LTSC or later Windows 11 (21H2) or later Linux 22.04 or later
Power Supply	9-36V 3-Pin Terminal Block DC-IN Includes Power Adapter
Construction	Fanless Aluminum Die-casting Chassis

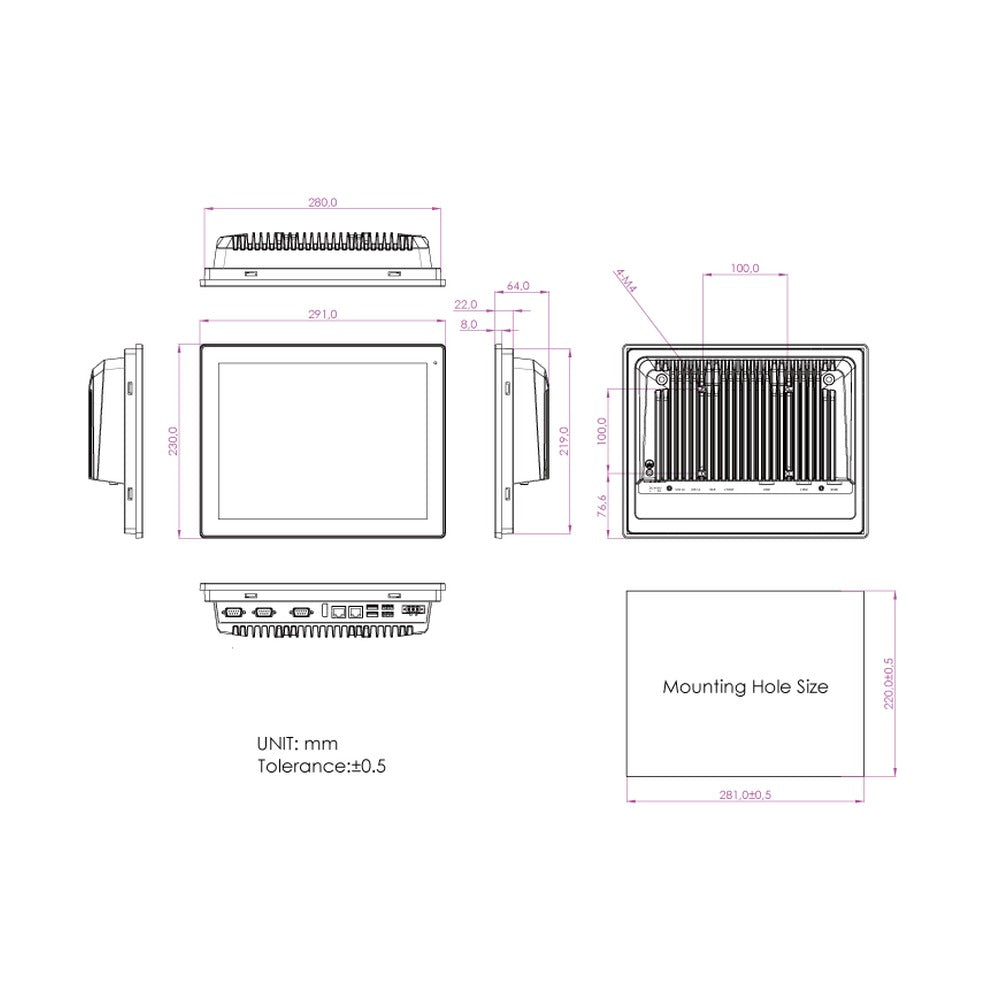

Case Dimensions	291 x 230 x 64mm 11.5" x 9.1" x 2.5" (in inches)
Mounting	Panel Mount VESA 100x100
Environmental	Operating Temperature: -20°C to 60°C (-4°F to 140°F) Storage Temperature: -30°C to 70°C (-22°F to 158°F) Humidity: 10% to 95% @ 40°C (non-condensing)
Compliance	CE/FCC, Class A
Warranty	1-Year Warranty on Parts and Labor
