| Manufacturer | MSI IPC |
| Product ID | 936-C910-001 |
| Model Name | MS-C910 |
| CPU |
Supports Intel 14th/13th/12th Gen Core Processors Raptor Lake-S/Alder Lake-S Socket LGA 1700 Max 35W TDP |
| Chipset | Intel R680E Chipset |
| Memory |
2 x DDR5 SODIMM slots ECC/Non-ECC 5600 MHz Maximum 64GB Capacity Dual Channel |
| Video |
Intel UHD Graphics (CPU Dependent) DisplayPort 1.4a Max Resolution: 4096x2304@60Hz HDMI 2.0b Max Resolution: 4096x2160@60Hz Supports Quad Displays |
| Audio |
Realtek ALC897 HD Audio |
| Storage Technology |
2 x SATA3 6Gb/s ports 1 x M.2 2280 slot (PCI-E 4.0 x4/SATA, B+M Key) |
| Connectivity |
1 x Intel I226-LM 2.5GbE LAN (Supports iAMT 16.X) 3 x Intel I226-V 2.5GbE LAN |
| Expansion Slots |
1 x PCI-E 4.0 x16 slot 3 x PCI slots 1 x M.2 2230 slot (PCIe 4.0 x1/USB 2.0) |

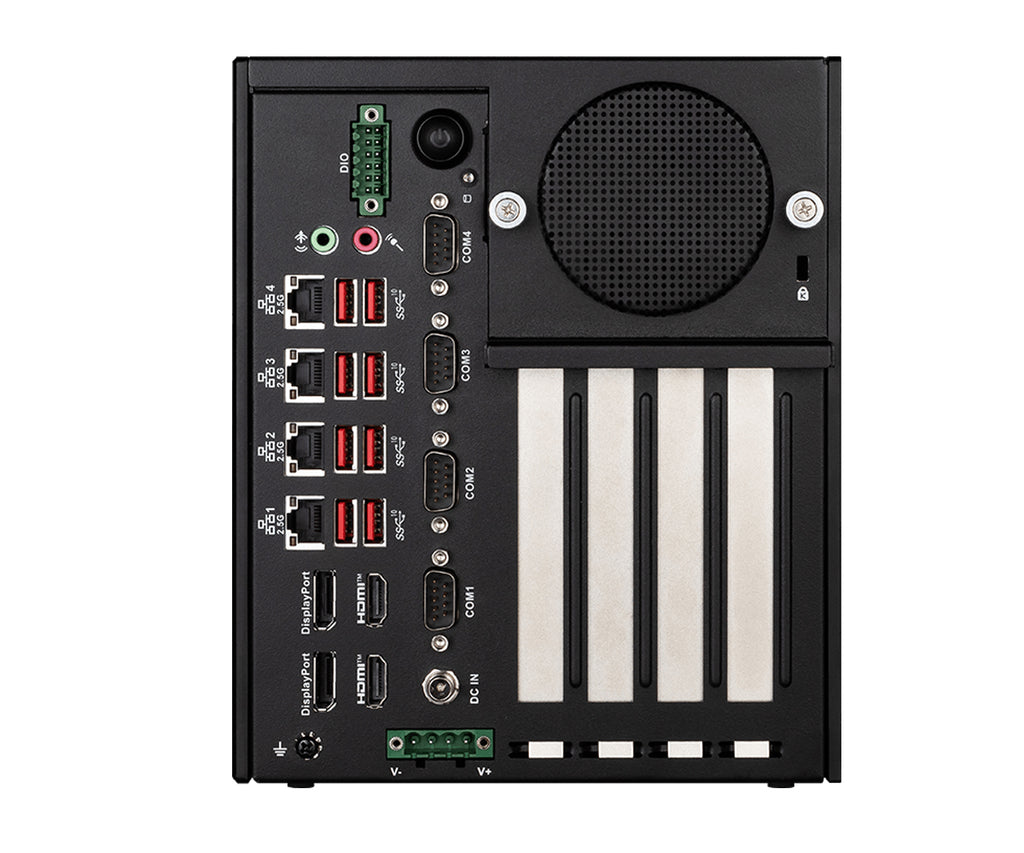

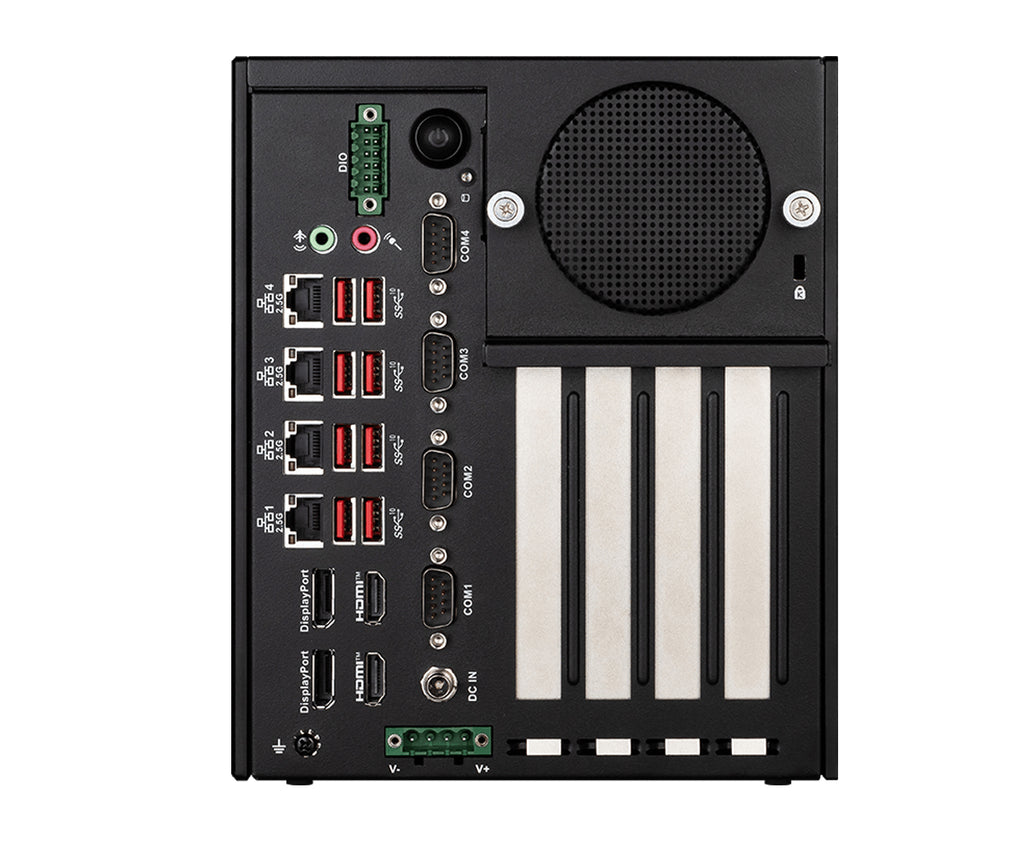

| Front Panel I/O |
1 x GND Screw 2 x DisplayPort 2 x HDMI 1 x 8-48V DC Power Jack 1 x 8-48V Phoenix DC Power Connector 2 x COM (RS232/422/485, 0V/5V/12V) 4 x RJ45 2.5 GbE LAN 8 x USB 3.2 (Gen2) 2 x COM (RS232, 0V) 2 x Audio I/O 1 x GPIO (DIO) Port (8 bit, 4 x GPI, 4 x GPO, 5-35V, Isolation 1.3KV) 1 x Power Button with LED |

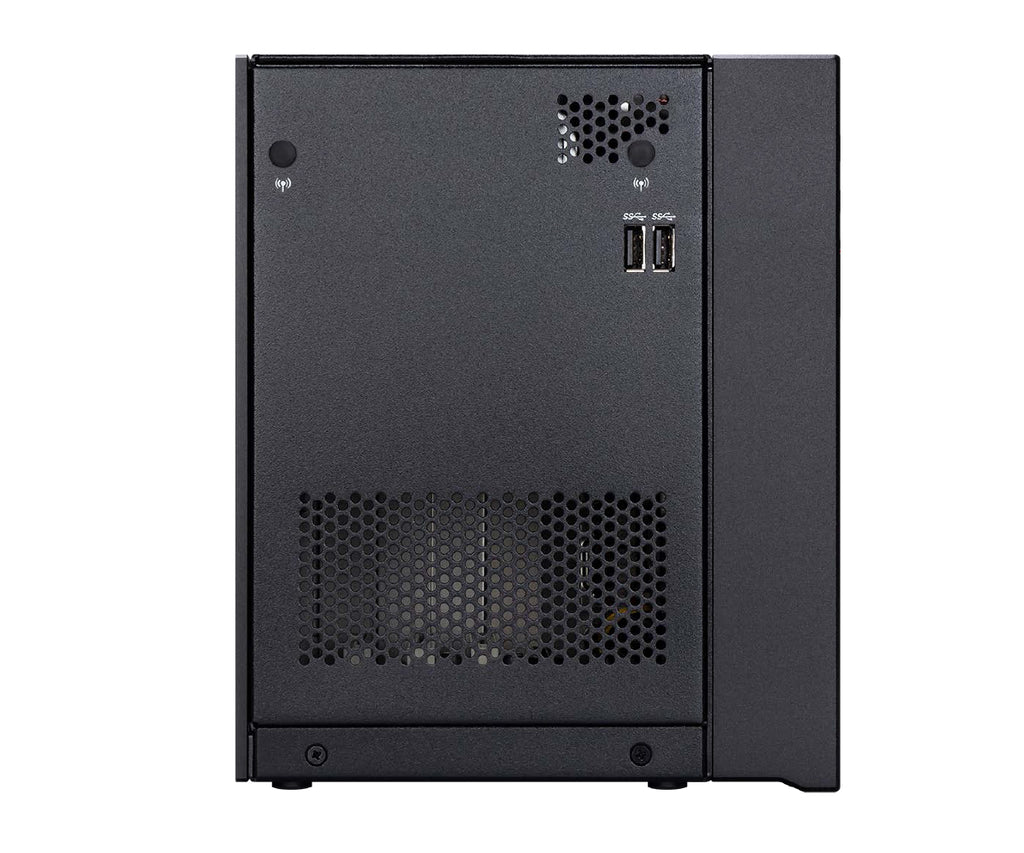

| Rear Panel I/O |
2 x USB 3.2 (Gen1) ports 2 x Antenna Cutouts |
| Drive Support |
2 x 2.5" SATA Drive Bays (Max 7mm Height) 1 x M.2 2280 slot (PCI-E 4.0 x4/SATA, B+M Key) |
| OS Support |
Windows 11 IoT Enterprise LTSC 24H2 (64-bit) Windows 10 IoT Enterprise 21H2 LTSC (64-bit) Linux Kernel 5.xx, Ubuntu 22.04.3 LTS Pre-scan |
| Power Supply |
1 x 8-48V DC Power Jack 1 x 8-48V Phoenix DC Power Connector Optional 180W 19V Power Adapter |
| Case Dimensions |
178 x 242 x 217mm 7.0" x 9.5" x 8.5" (in inches) |
| Mounting |
Wallmount |
| Environmental |
Operating Temperature: -10°C to 50°C (14°F to 122°F) Non-Operating Temperature: -20°C to 80°C (-4°F to 176°F) Operating Humidity: 5% to 90% (non-condensing) Non-Operating Humidity: 5% to 90% (non-condensing) Vibration: IEC 60068-2-64, 2Grms, random, 5 to 500Hz, 1hr/axis (w/ HDD/SDD) Shock: IEC 60068-2-27, 50G, half sine, 11ms (w/ HDD/SDD) |
| Compliance |
FCC Class A, CE, RCM, BSMI, VCCI, UKCA, IC IEC 62368: CE (LVD) RoHS Compliant |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: 936-C910-001
