Manufacturer	MSI IPC
Part Number	919-98N9-001
Model Name	MS-98N9
CPU	Supports Intel 10th/9th Gen Xeon, Core Processors, Comet Lake-S Socket LGA 1200 Max 125W TDP
Chipset	Intel W480E Express Infineon SLB 9670VQ2.0 TPM 2.0
Memory	4 x DDR4 DIMM slots ECC/Non ECC UDIMM 2933 MHz Maximum 128GB Capacity Dual Channel
Video	Intel UHD Graphics (CPU Dependent) VGA Max Resolution: 1920x1200@60Hz HDMI Max Resolution: 4096x2160@30Hz DisplayPort Max Resolution: 4096x2304@60Hz eDP Max Resolution: 4096x2304@60Hz Supports Triple Displays
Audio	Realtek ALC888S-VD2-GR Audio Codec
Storage Technology	2 x M.2 2280/2260/2242 slots (PCIe x4, Shared Signal with PCIe Slot 3, 5) 1 x M.2 22110/2280/2260/2242 slot (PCIe x4, Shared Signal with PCIe Slot 1) 4 x SATA Connectors (Supports Intel RSTe RAID 0/1/5/10) 1 x Mini PCI-E with mSATA Support (Full/Half)
Connectivity	1 x Intel I219-LM GbE LAN 3 x Intel I210-AT GbE LAN
Expansion Slots	1 x PCI-E 4.0 x16 slot (x16 or x8/x8) 3 x PCI-E 4.0 x4 slots 2 x PCI slots 1 x Mini PCI-E with mSATA Support (Full/Half)
Power	1 x 24-Pin ATX Power Connector 1 x 12V 8-Pin ATX Power Connector for CPU

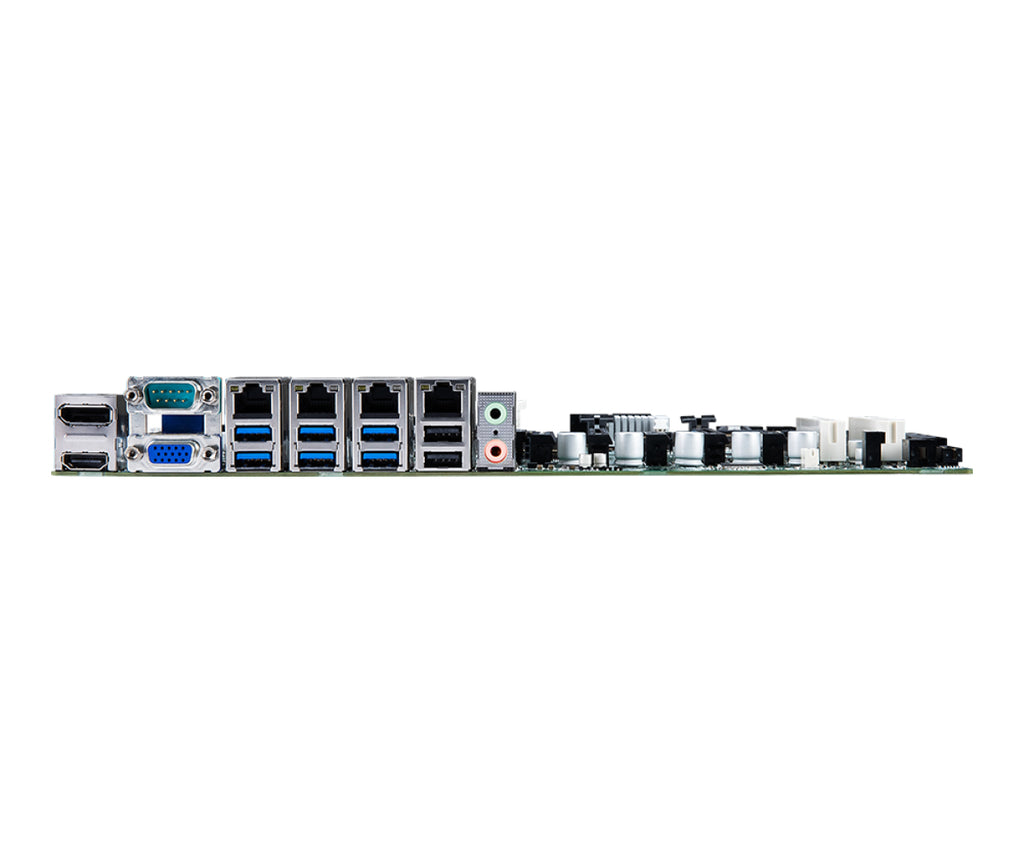

Rear I/O	1 x DisplayPort 1 x HDMI 1 x COM (RS232/422/485, Ring/0V/5V/12V, Auto-flow Control) 1x VGA 4 x RJ45 GbE LAN 6 x USB 3.2 (Gen2) 2 x USB 2.0 2 x Audio I/O
Onboard I/O Headers	1 x PS/2 Connector (Wafer Connector) 1 x USB 2.0 Type-A Vertical Connector 2 x USB 2.0 headers 2 x USB 3.2 (Gen1) headers 1 x Parallel Port header 1 x COM header (RS232/422/485, Ring/0V/5V/12V, Auto-flow Control) 4 x COM header (RS232/422/485, 0V/5V/12V, Auto-flow Control) 4 x COM header (RS232, 0V/5V/12V) 1 x 16-bit GPIO header (8 x GPI, 8 x GPO)
OS Support	Windows 10 IoT Enterprise 2019 SAC (64-bit) Windows 10 Enterprise LTSC (64-bit, RS5) Linux (Support by request)
Form Factor	ATX 305 x 244mm 12" x 9.6" (in inches)
Environmental	Operating Temperature: -10°C to 60°C (14°F to 140°F) Note: Thermal w/ Airflow 0.7m/s Non-Operating Temperature: -20°C to 80°C (-4°F to 176°F) Operating Humidity: 10% to 90% (non condensing)
Compliance	CE, FCC Class B, BSMI, RCM, VCCI
Warranty	1-Year Manufacturer's Limited Warranty
