Manufacturer	MSI IPC
Part Number	916-CF16-010

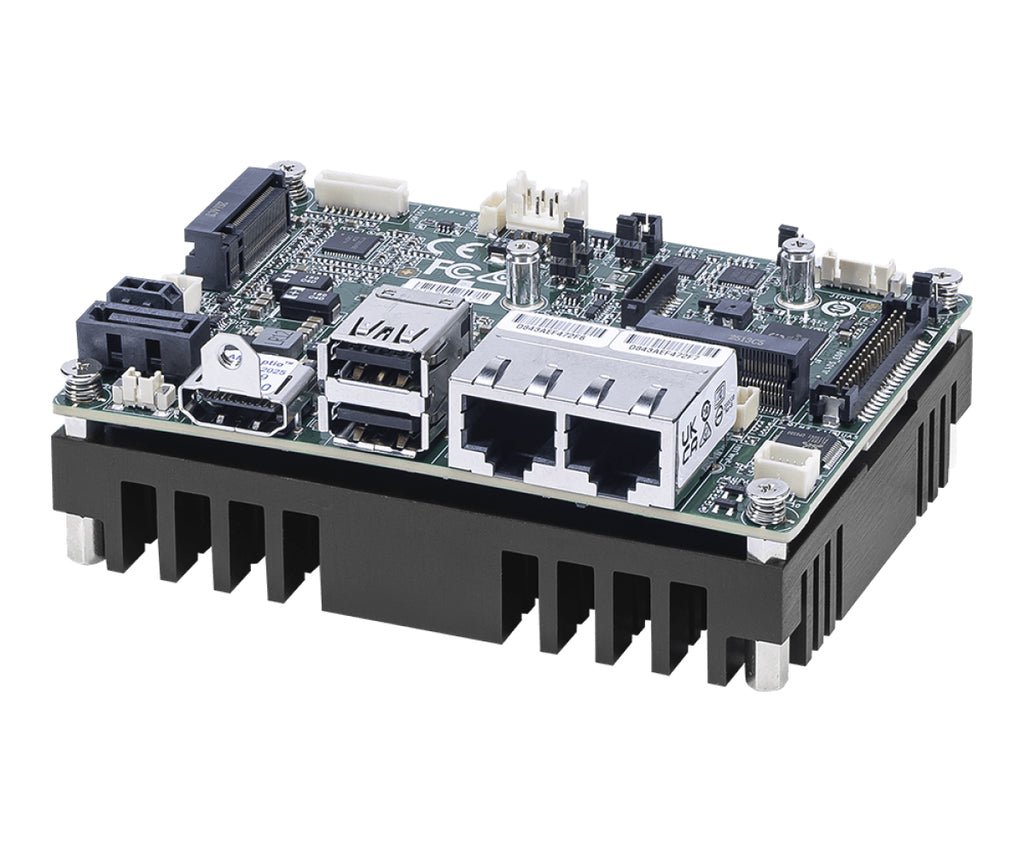

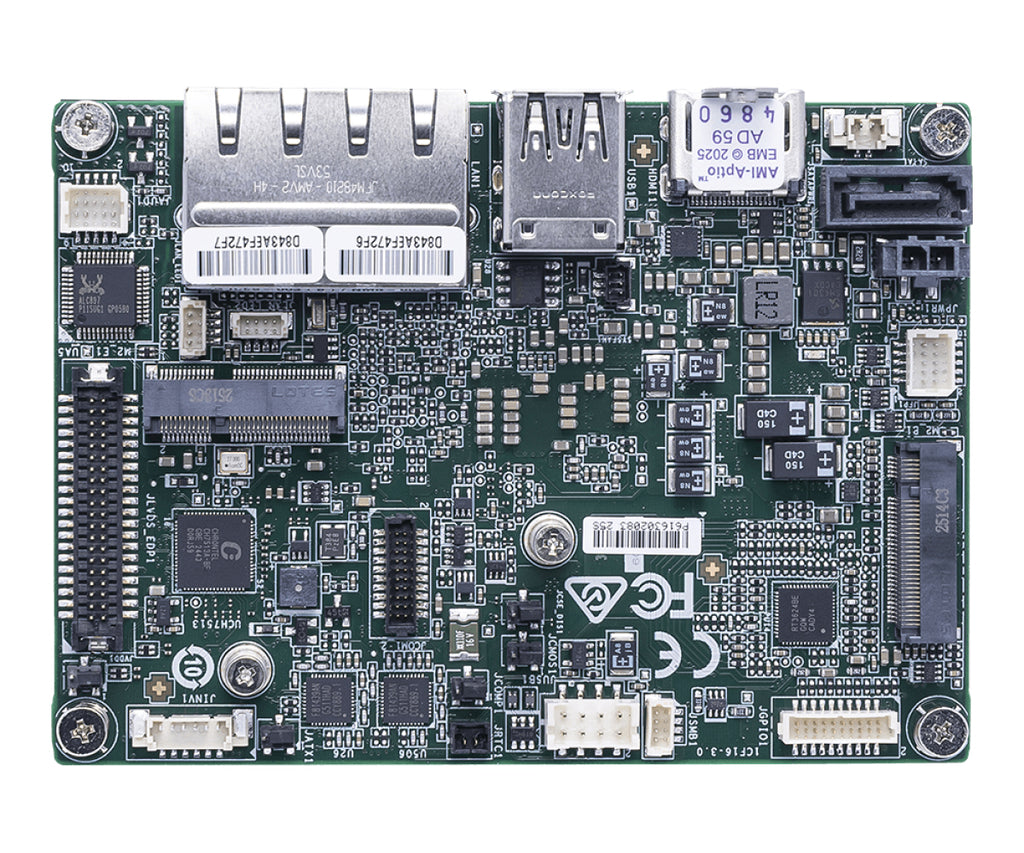

Model Name	MS-CF16
CPU	Intel Atom X7433RE Processor 4 Cores 3.4 GHz 9W TDP, 6MB Cache
Chipset	SoC
Memory	16GB LPDDR5 Memory Single Channel
Video	Intel HD Graphics 1.0 GHz 32 Execution Units LVDS Max Resolution: 1920x1200@60Hz eDP Max Resolution: 1920x1080@60Hz HDMI Max Resolution: 3840x2160@30Hz Supports Dual Displays
Audio	Realtek ALC897 HD Audio Codec
Storage Technology	1 x SATA Connector 1 x M.2 2242/3042 slot (PCIe x1/SATA, USB 3.2 Gen2, USB 2.0)
Connectivity	1 x Realtek RTL8125BG-CG 2.5GbE LAN 1 x Realtek RTL8111K-CG GbE LAN
Expansion Slots	1 x M.2 2230 slot (PCIe x1, USB 2.0) 1 x M.2 2242/3042 slot (PCIe x1/SATA, USB 3.2 Gen2, USB 2.0)
Power	1 x 12V DC-IN

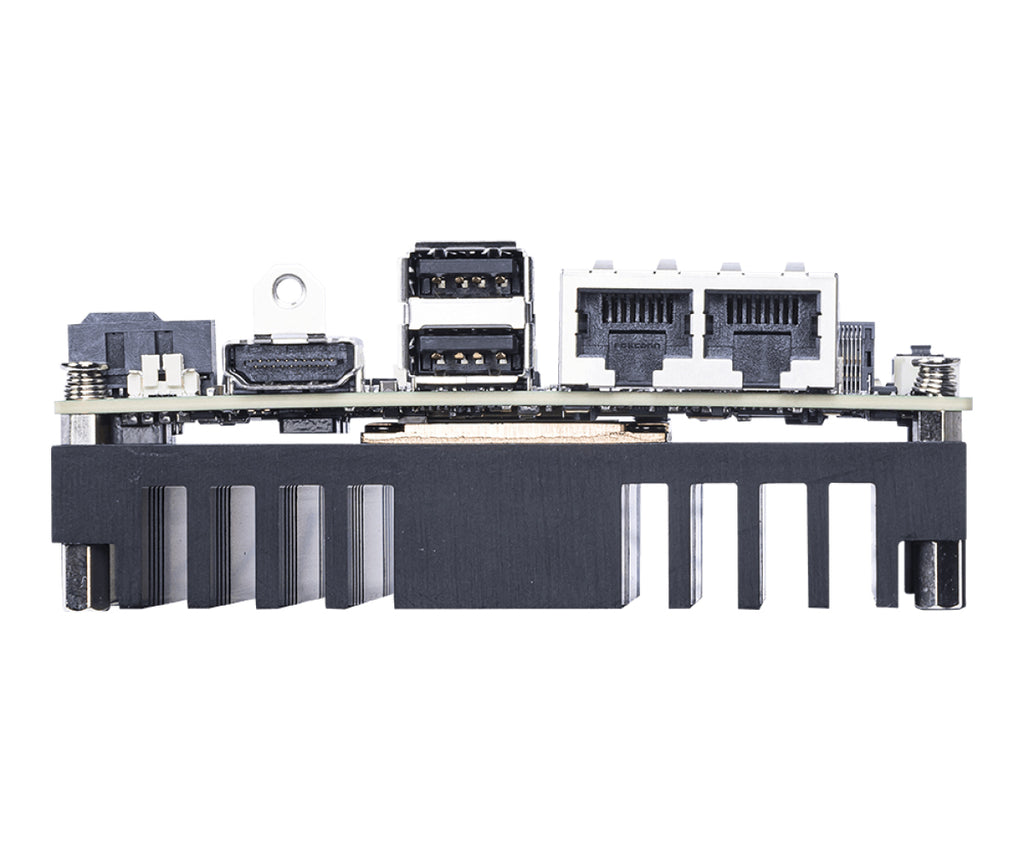

Rear I/O	1 x HDMI 1 x USB 3.2 (Gen2) 1 x USB 3.2 (Gen1) 1 x RJ45 2.5 GbE LAN 1 x RJ45 GbE LAN
Onboard I/O Headers	1 x USB 2.0 hheader 2 x COM (RS232/422/485, 0V/5V/12V) 1 x 16-bits GPIO (8 x GPI, 8 x GPO) 5V
OS Support	Windows 11 IoT Enterprise 24H2 LTSC (64-bit) Linux (Support by Request)
Form Factor	Pico ITX 101 x 73mm 3.98" x 2.87" (in inches)
Environmental	Operating Temperature: -40°C to 70°C (-40°F to 158°F) Note: with Airflow: 0.7 m/s, Standard thermal solution only supports TDP up to 9W  Non-Operating Temperature: -40°C to 80°C (-40°F to 176°F) Operating Humidity: 10% to 90% (non condensing) Storage Humidity: 10% to 90% (non condensing)
Compliance	CE, FCC Class B, BSMI, RCM, UKCA, IC
Warranty	1-Year Manufacturer's Limited Warranty
