Manufacturer	MSI
Part Number	911-CF10-002
Model Name	MS-CF10
CPU	Supports Intel 14th/13th/12th Gen Processors Raptor Lake-S Refresh, Raptor Lake-S, Alder Lake-S Socket LGA 1700 Max 65W iAMT 16.x Support with compatible CPU
Chipset	Intel Q670E Onboard Infineon SLB 9670VU2.0 TPM 2.0
Memory	2 x DDR5 SODIMM slots Maximum 64GB Capacity 5200 MT/s Dual Channel
Video	Intel UHD Graphics (CPU Dependent) HDMI Max Resolution: 4096x2160@24Hz DisplayPort Max Resolution: 4096x2304@60Hz LVDS Max Resolution: 1920x1200@60Hz eDP Max Resolution: 4096x2304@60Hz Supports Quad Displays
Audio	Realtek ALC897 Audio Codec (Co-lay ALC888S)
Storage Technology	2 x SATA3 Connectors 1 x M.2 2280/2242 slot (PCI-E 3.0 x4, SATA)
Connectivity	1 x Intel I226-LM 2.5GbE LAN 2 x Intel I226-V 2.5GbE LAN
Expansion Slots	1 x PCI-E 5.0 x16 slot 1 x M.2 2230 slot (PCIe x1, USB 2.0, CNVi, E-Key)
Power	1 x 8-Pin 8-48V DC-IN

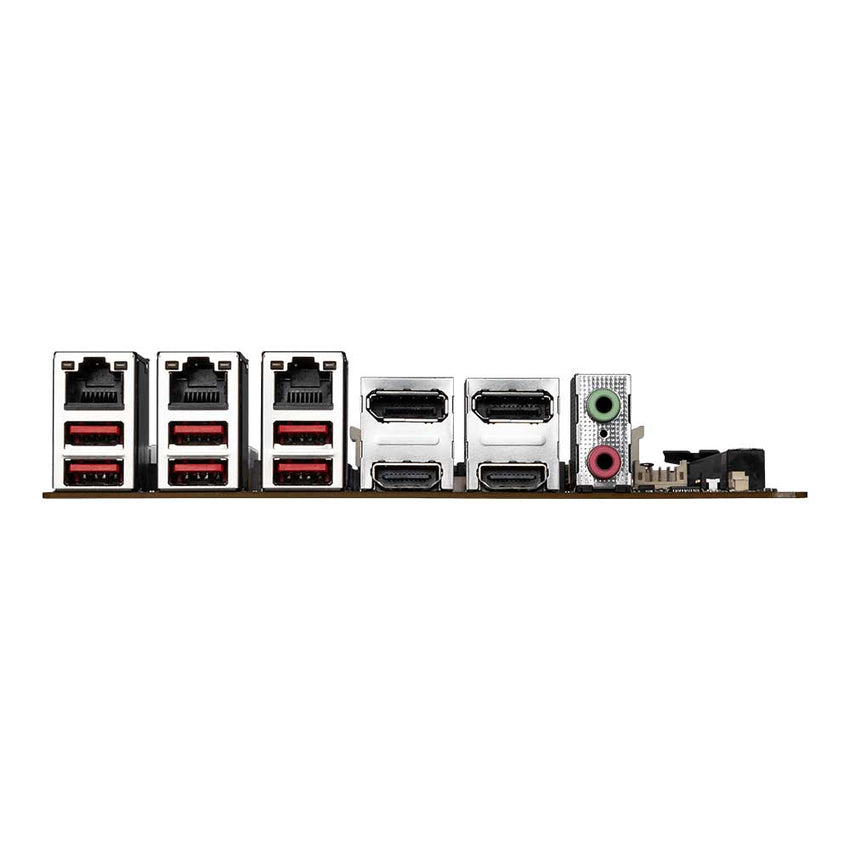

Rear I/O	3 x RJ45 2.5G LAN 2 x USB 3.2 (Gen2) 2 x USB 3.2 (Gen1) 2 x USB 2.0 2 x DisplayPort 2 x HDMI 2 x Audio I/O
Onboard I/O Headers	1 x Front Audio header 1 x Front Audio Connector 1 x Audio Amplifier header 1 x LVDS Inverter box header 1 x LVDS/eDP Wafer Connector 2 x COM 1 x GPIO header (16-bit, 8 x GPI, 8 x GPO) 1 x SMBus Connector (5V) 1 x Chassis Intrusion header 1 x CMOS Battery header 4 x COM Voltage Select jumpers 1 x AT/ATX Mode Select Jumper 1 x eDP/LVDS Power Select jumper 1 x Clear CMOS jumper
OS Support	Windows 10 IoT Enterprise 21H2 LTSC (64-bit) Windows 11 IoT Enterprise 23H2 LTSC (64-bit)  Linux (by request)
Form Factor	Mini ITX 6.7" x 6.7" 170 x 170mm
Environmental	Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -20°C to 80°C (-4°F to 176°F) Operating Humidity: 10% to 90% (non condensing) Storage Humidity: 10% to 90% (non condensing)
Compliance	CE, FCC Class B, BSMI, RCM, VCCI, UKCA, IC, IEC 62368: CE (LVD)
Warranty	2-Year Manufacturer's Limited Warranty
