| Manufacturer | ASRock |
| Part Number | Z590M-ITX/AX |
| CPU | Supports Intel 11th Gen Core Processors, Rocket Lake Supports Intel 10th Gen Core Processors, Comet Lake Socket LGA1200 Supports Intel K-Series unlocked CPUs Supports Intel Turbo Boost Max 3.0 Technology |
| Chipset | Intel Z590 |
| Memory | 2 x DDR4 DIMM slots Maximum 64GB Capacity Supports ECC UDIMM Memory (Operates in Non-ECC Mode) Supports Intel Extreme Memory Profile (XMP) 2.0 11th Gen i9/i7/i5 supports up to 3200MHz, i3/Pentium/Celeron up to 2666MHz 10th Gen i9/i7 supports up to 2933MHz, i5/i3/Pentium/Celeron up to 2666MHz |
| Video | Intel HD Graphics (CPU Dependent) HDMI Max Resolution: 4096x2160@60Hz DisplayPort Max Resolution: 4096x2304@60Hz 11th Gen Core Processors support HDMI 2.0 10th Gen Core Processors support HDMI 1.4 Dual Independent Displays |
| Audio | Realtek ALC897 HD Audio Codec 7.1 Channels Nahimic Audio Supports Surge Protection |
| Storage Technology | 4 x SATA3: 6.0 Gb/s Connectors 1 x M.2 2280 slot (M Key, PCI-E 4.0 x4 speeds with 11th Gen Processors) 1 x M.2 2280 slot (M Key, PCI-E 3.0 x4) Supports Intel Optane Technology Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices Note: RAID function for PCIe mode SSD in M.2_1 is only available with Intel SSD Installed |
| Connectivity | 1 x Dragon RTL8125BG 2.5GbE LAN Supports Wake-On-LAN Supports PXE 1 x Intel I219V GbE LAN Supports Wake-On-LAN Supports PXE 1 x Intel 802.11ax WIFI 6E Module Dual Band 2x2 160MHz Supports Bluetooth 5.2 + High speed class II Supports MU-MIMO |
| Expansion Slots | 1 x PCI-E 4.0 x16 slot Note: PCI-E 3.0 x16 with 10th Gen Processors 1 x M.2 Verticle Socket (E Key, Occupied by WIFI module) |
| Power | 24-Pin ATX Power Connector 8-Pin 12V ATX Power Connector for CPU |

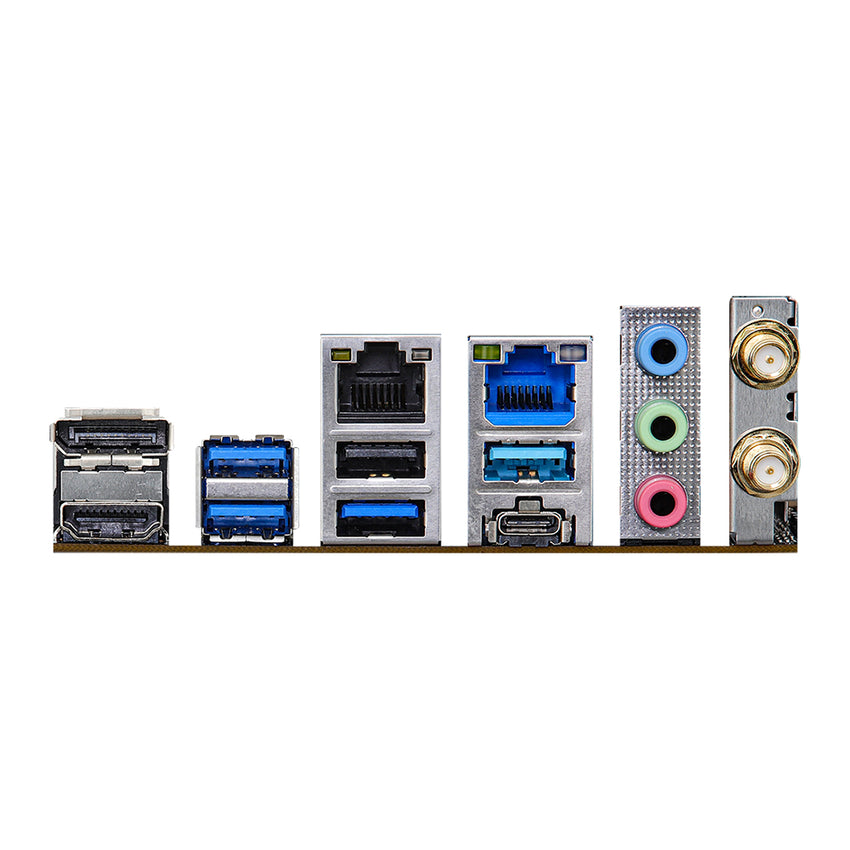

| Rear I/O | 1 x DisplayPort 1 x HDMI 4 x USB 3.2 (Gen2) Type-A 1 x RJ45 GbE LAN 1 x USB 2.0 1 x RJ45 2.5GbE LAN 1 x USB 3.2 (Gen2) Type-C 3 x Audio I/O 2 x Antenna Connectors |
| Onboard I/O Headers | 1 x RGB LED header (Supports 12V/3A, 36W LED Strip) 1 x ARGB LED header (Supports V/3A, 15W LED Strip) 1 x 4-Pin CPU Fan connector (12W) 1 x 4-Pin Chassis Fan connector (12W) 1 x 4-Pin Chassis/Water Pump Fan connector (Smart Fan Speed Control, 24W) 1 x Front Panel Audio connector 1 x USB 2.0 header (Supports up to 2 Ports) 1 x USB 3.2 (Gen1) header (Supports up to 2 Ports) 1 x USB 3.2 (Gen2) Type-C header |
| Form Factor | Mini ITX 6.7" x 6.7" (in inches) 170 x 170mm |
| Certifications | FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 1-Year Manufacturer's Limited Warranty |
PRODUCT ID: Z590M-ITX/ax

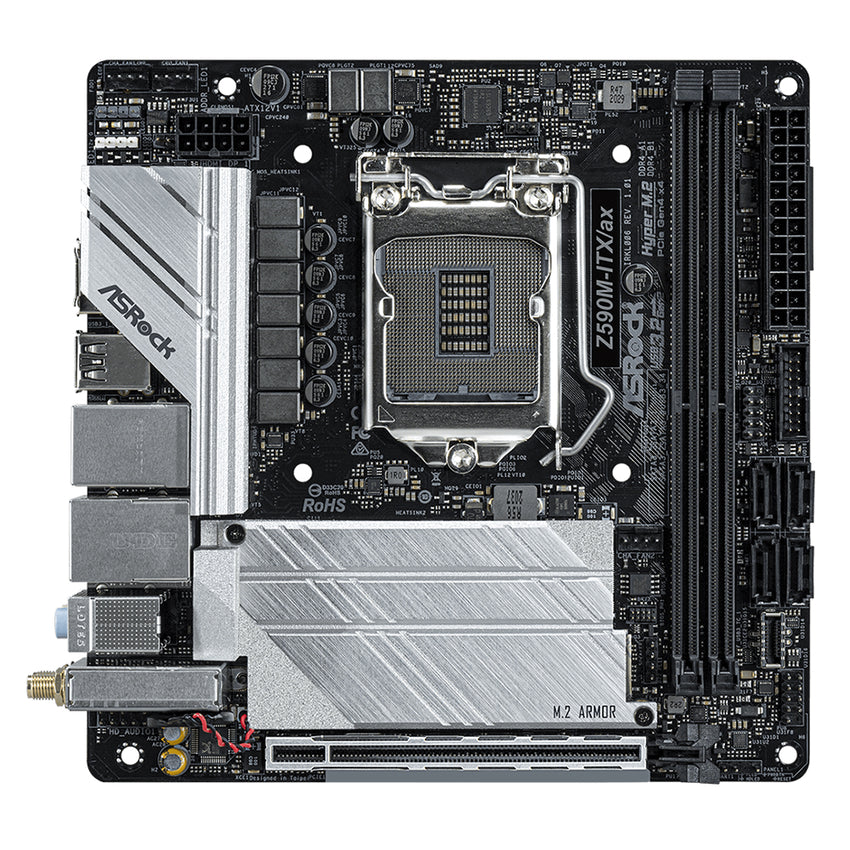

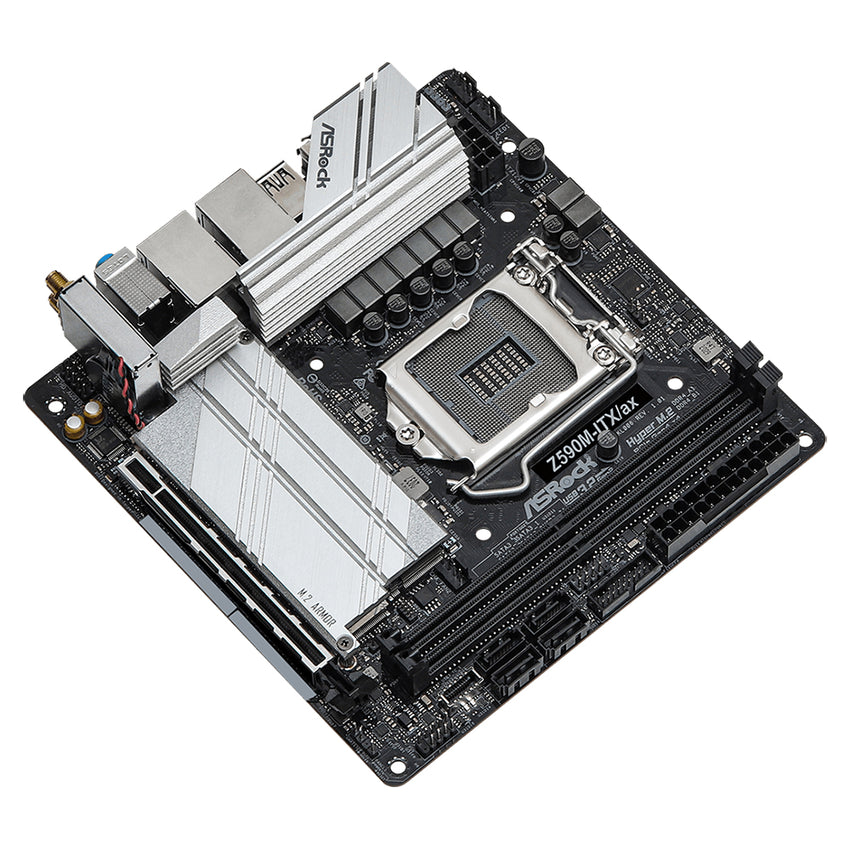

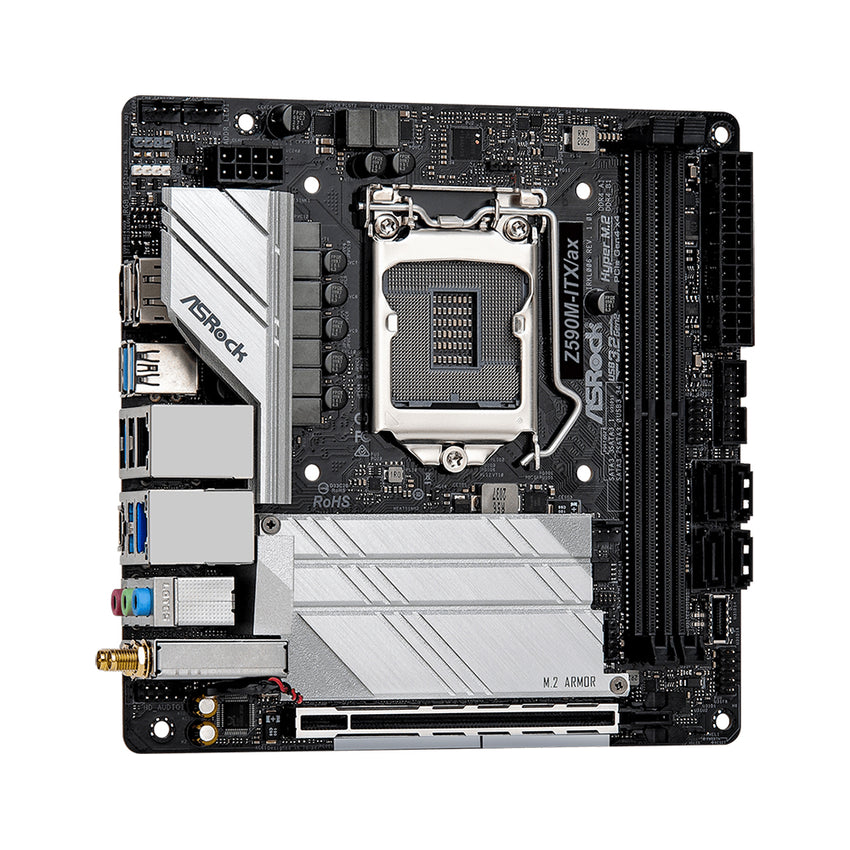

ASRock Z590M-ITX/AX 11th Gen Rocket Lake Mini ITX Motherboard, LGA1200
This product is discontinued!
