Manufacturer	ASRock
Part Number	Z490M-ITX/ac
CPU	Supports Intel 10th Gen Core Processors Socket 1200 Supports Intel K-Series Unlocked CPUs Supports Intel Turbo Boost Max 3.0 Technology
Chipset	Intel Z490
Memory	2 x DDR4 DIMM Slots Maximum 64GB Capacity Supports ECC UDIMM in Non-ECC mode Core i9/i7 supports up to 2933MHz Core i5/i3, Pentium and Celeron supports up to 2666MHz Dual Channel
Video	Intel HD Graphics (CPU Dependent) HDMI 1.4 Max Resolution: 4096x2160@30Hz DisplayPort 1.4 Max Resolution: 4096x2304@60Hz Supports Triple Display
Audio	Realtek ALC1200 Audio Codec 7.1 Channel HD Audio Supports Surge Protection PCB Isolate Shielding Nahimic Audio
Storage Technology	4 x SATA3 6Gb/s Ports Supports Software RAID 0, 1, 5, 10, Intel Rapid Storage Technology 17 1 x M.2 2280 slot: SATA or PCI-E 3.0 x4 (M Key) 1 x M.2 2280 slot: PCI-E 3.0x4 (M Key)
Connectivity	1 x Dragon RTL8125BG 2.5GbE LAN Supports Wake-On-LAN 1 x Intel I219V GbE LAN Supports PXE Supports Wake-On-LAN Intel 802.11ac WIFI Module Dual Band 2.4/5.0 GHz Wireless 802.11a/b/g/n/ac, Bluetooth 4.2
Expansion Slots	1 x PCI-E 3.0 x16 slot 1 x M.2 Vertical slot (occupied by wifi module)
Power	24-Pin ATX Power Connector 8-pin 12V Power Connector

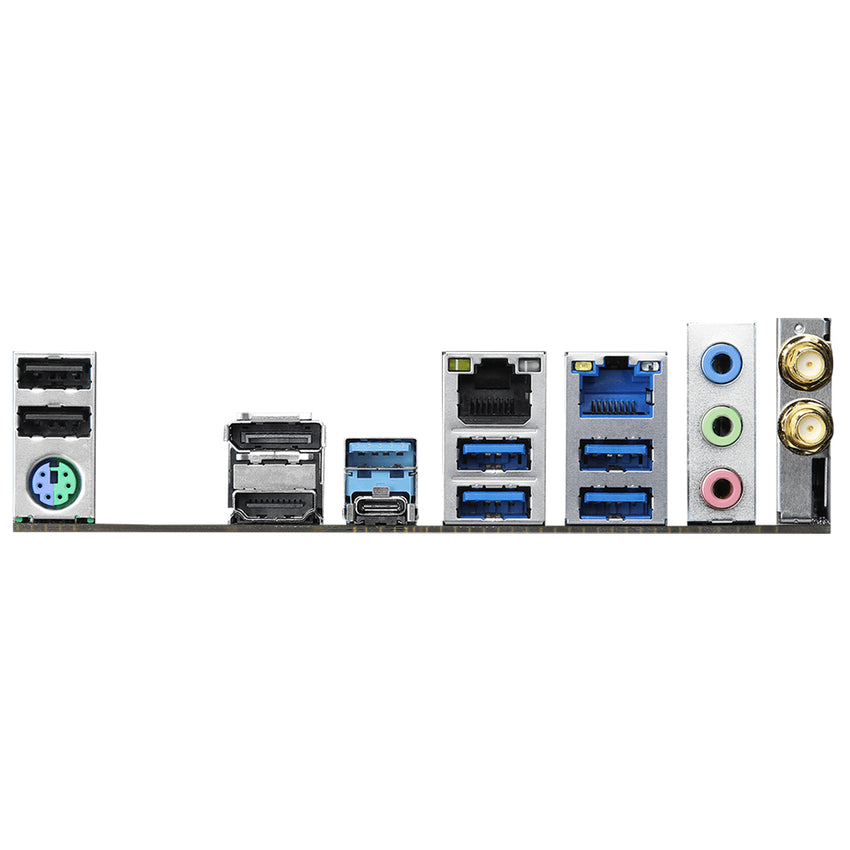

Rear I/O	2 x USB 2.0 1 x PS/2 1 x DisplayPort 1 x HDMI 1 x USB 3.2 Gen1 Type-A 1 x USB 3.2 Gen1 Type-C 1 x RJ45 GbE LAN 4 x USB 3.2 Gen2 (10 Gb/s) 1 x RJ45 2.5GbE LAN 3 x Audio I/O 2 x Antenna Connector
Onboard I/O Headers	1 x RGB LED header (Supports 12V/3A, 36W LED Strip) 1 x Adressable RGB LED header (Supports 5V/3A, 15W LED Strip) 1 x 4-Pin Chassis Fan header (1A, 12W) 1 x 4-Pin Chassis/Water Pump Fan connector (2A, 24W) 1 x Front Panel Audio Connector 1 x USB 2.0 header (Supports up to 2 ports) 1 x USB 3.2 Gen1 header (Supports up to 2 ports)
Form Factor	Mini-ITX 170 x 170mm 6.7" x 6.7" (in inches)
Cerifications	FCC, CE ErP/EuP ready (ErP/EuP ready power supply required)
Warranty	1-Year Manufacturer's Limited Warranty
