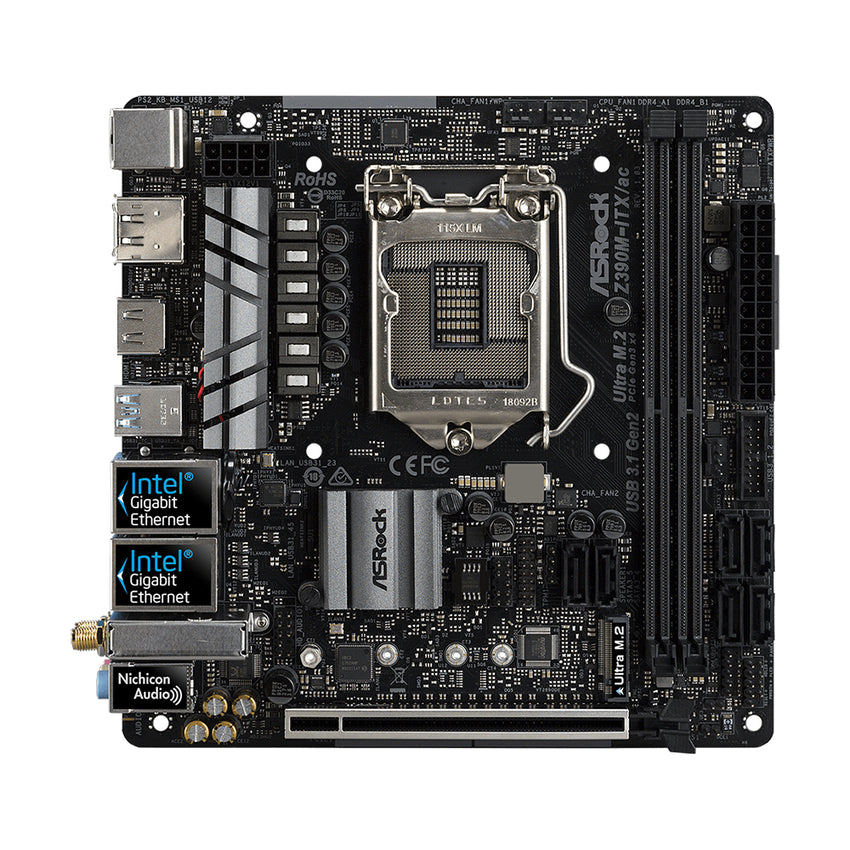

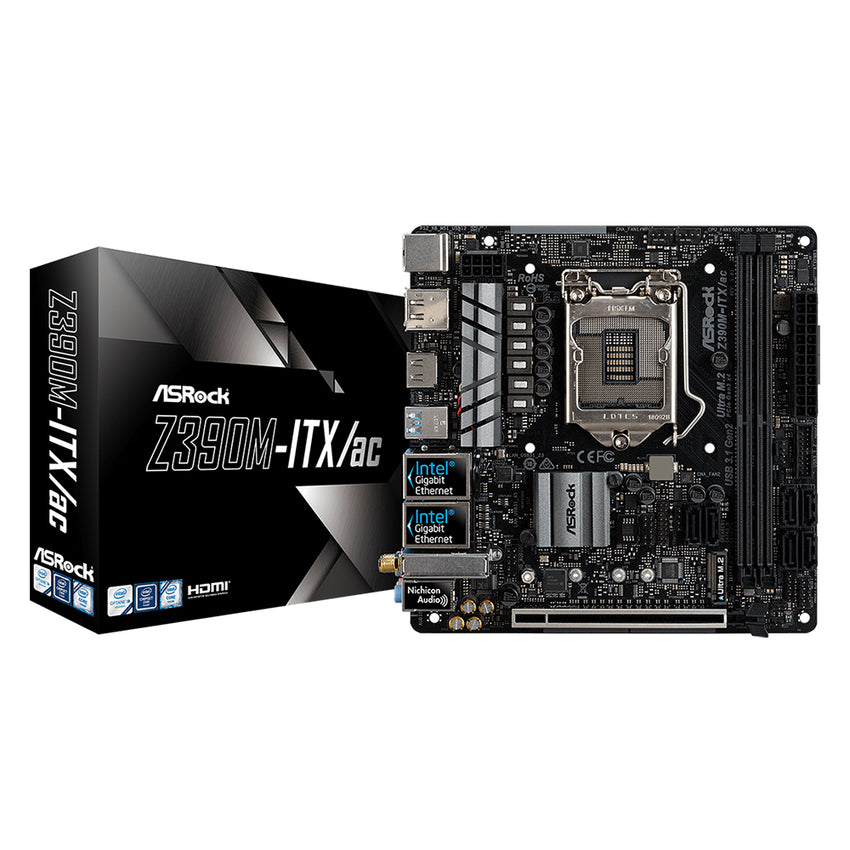

Manufacturer | ASRock |
Part Number | Z390M-ITX/ac |
CPU |
Supports Intel 8th/9th Gen Core Processor Socket LGA 1151 Digi Power Design 6 Power Phase design Supports Intel Turbo Boost 2.0 Technology Supports Intel K-Series unlocked CPUs Supports ASRock BCLK Full-range Overclocking |
Chipset | Intel Z390 |
Memory |
2 x DDR4 DIMM Slots Maximum 64GB Capacity 2133 MHz Minimum Dual Channel Supports Intel Extreme Memory Profile (XMP) 2.0 |
Video |
Intel HD Graphics (CPU Dependent) HDMI 1.4 Max Resolution: 4096x2160@30Hz DisplayPort 1.2 Max Resolution: 4096x2304@60Hz Supports Triple Displays |
Audio |
7.1 Channel HD Audio with Content Protection Realtek ALC892 Audio Codec Premium Blu-ray Audio support Supports Surge Protection Nichicon Fine Gold Series Audio Caps Note: 7.1 CH HD Audio requires HD Front Panel Audio and audio driver |
Storage Technology |
6 x SATA3 6Gb/s Ports Supports RAID 0, 1, 5, 10, Intel Rapdi Storage Technology 16 1 x M.2 2280/2260/2242/2230 slot (PCI-E 3.0 x4 or SATA, M Key) |
Connectivity |
1 x Intel I219V GbE LAN 1 x Intel I211AT GbE LAN Supports Wake-On-LAN Supports Lightnin/ESD Protection Supports Dual LAN with Teaming (Supported on Windows 10 RS2 and above) Supports Energy Efficient Ethernet 802.3az Supports PXE 1 x Intel 802.11ac WiFi Module Supports IEEE 802.11a/b/g/n/ac Supports Dual Band (2.4/5Ghz) Supports high speed wireless connection up to 433Mbps Supports Bluetooth 4.2 / 3.0 + High speed class II |
Expansion Slots |
1 x PCI-E 3.0 x16 slot 1 x M.2 (Verticle) slot (E Key, Occupied by WiFi Module) |
Power |
24-Pin ATX Power Connector 8-Pin 12V Power Connector for CPU |

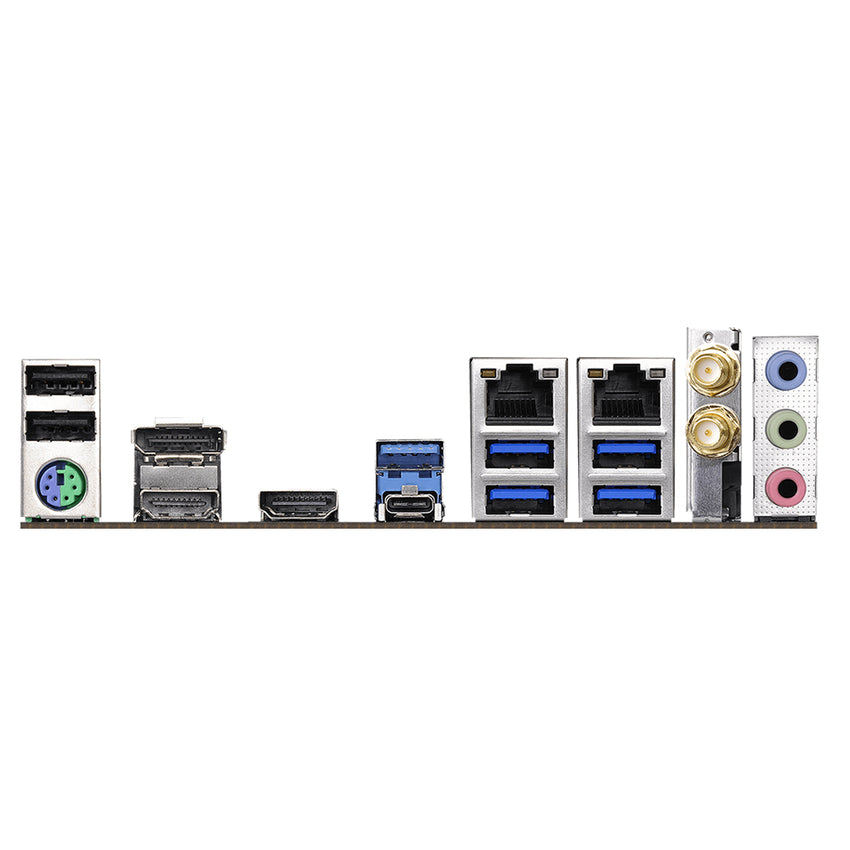

Rear I/O |
2 x USB 2.0 1 x PS/2 1 x DisplayPort 2 x HDMI 5 x USB 3.1 Gen2 (Type-A) 1 x USB 3.1 Gen2 (Type-C) 2 x RJ45 GbE LAN 2 x Antenna Connectors 3 x Audio I/O |
Onboard I/O Headers |
1 x TPM header 1 x Chassis Intrusion header 1 x 4-Pin Case Fan header 1 x 4-Pin Case Fan/Water Pump Fan header 1 x Front Panel Audio header 1 x USB 2.0 header (Supports up to 2 ports) 1 x USB 3.1 Gen1 header (Supports up to 2 ports) |
Form Factor |
Mini-ITX 170 x 170mm 6.7" x 6.7" (in inches) |
Warranty | 1-Year Manufacturer's Limited Warranty |
