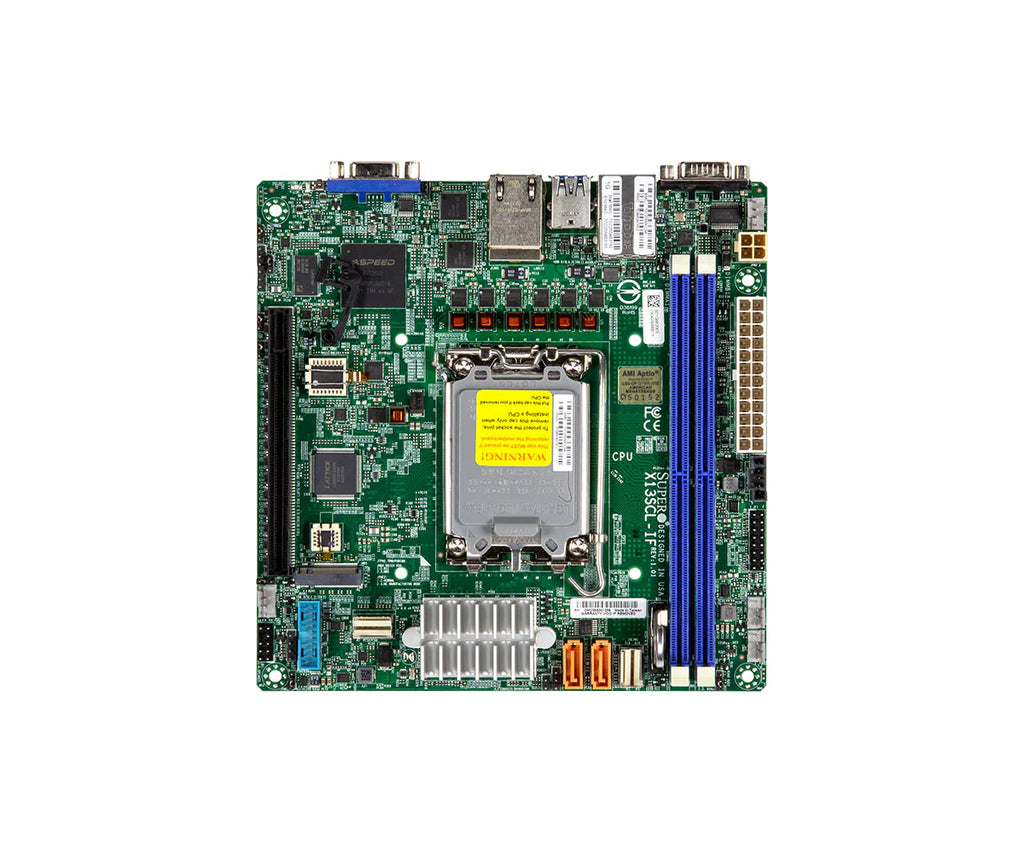

Manufacturer	Supermicro
Part Number	X13SCL-IF
CPU	Supports Intel Xeon 6300/E-2400 Series Processors Socket LGA 1700 Supports Maximum 95W TDP
Chipset	Intel C262
Memory	2 x DDR5 DIMM slots Maximum 64GB Capacity ECC UDIMM 4800 MT/s
Video	Aspeed AST2600
Audio	N/A
Storage Technology	2 x SATA3 6Gb/s Connectors 1 x SlimSAS x4 Connectors (PCI-E 4.0 x4 or 4 x SATA) 1 x SlimSAS x4 Connectors (PCI-E 4.0 x4) Supports RAID 01/5/10 1 x M.2 2280 slot (PCI-E 4.0 x4, M Key)
Connectivity	2 x Intel I210 GbE LAN 1 x Realtek RTL8211F GbE Dedicated IPMI LAN
Expansion Slots	1 x PCI-E 5.0 x16 slot
Power	1 x 24-Pin ATX Power Connector 1 x 12V 4-Pin ATX Power Connector for CPU
Rear I/O	1 x COM 1 x RJ45 GbE Dedicated IPMI LAN 2 x USB 3.2 (Gen1) 2 x USB 2.0 2 x RJ45 GbE LAN 1 x VGA
Onboard I/O Headers	1 x USB 3.2 (Gen1) header (Supports 2 Ports) 1 x TPM 2.0 header 4 x 4-pin Fan header 1 x Chassis Intrusion header
Form Factor	Mini ITX 6.7" x 6.7" 170 x 170mm
Environmental	Operating Temperature: -5°C to 55°C (23°F to 131°F) Non-Operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Humidity: 8% to 80% (non condensing) Storage Humidity: 8% to 80% (non condensing)
Warranty	1-Year Manufacturer's Limited Warranty
