Manufacturer |
Supermicro
|
Part Number |

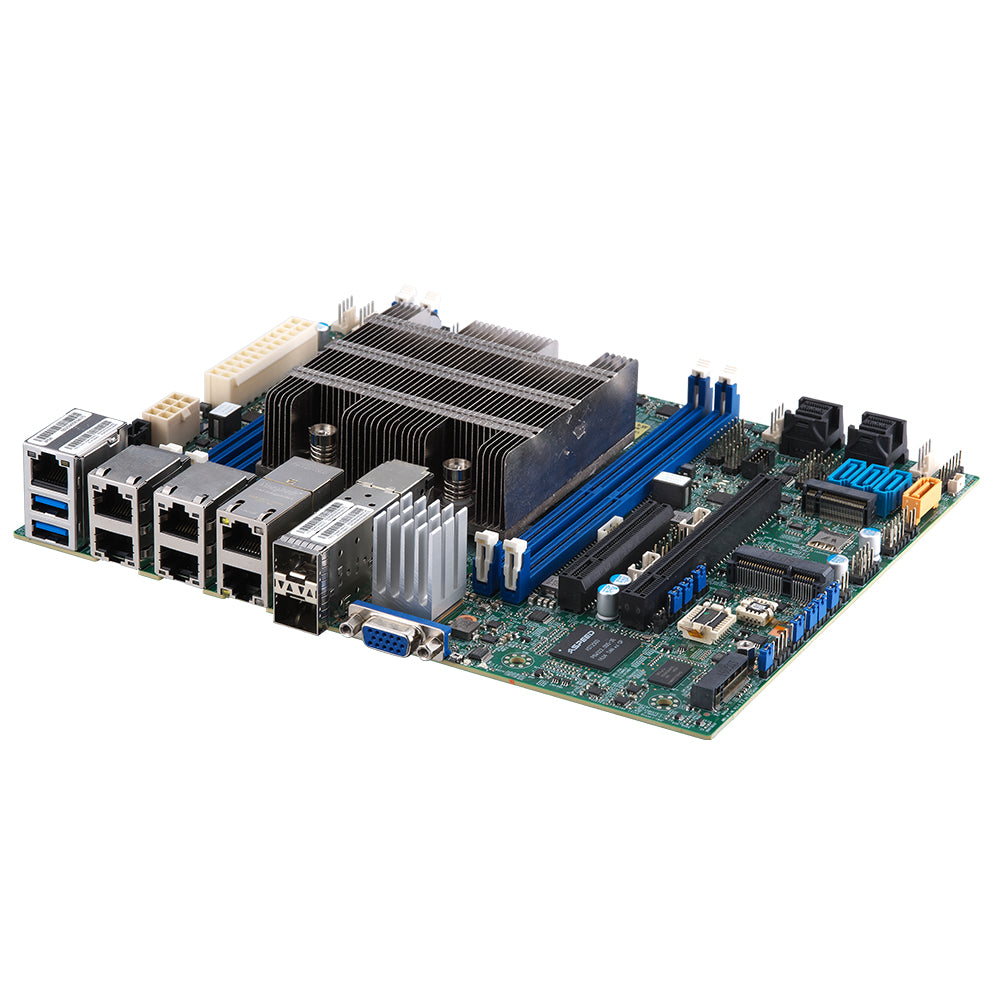

X11SDV-4C-TP8F
|
CPU |
Intel Xeon D-2123IT Processor
2.20 - 3.00 GHz
4 Cores / 8 Threads
60W TDP, 8 MB Cache
|
Chipset |
SoC
|
Memory |
4 x DDR4 DIMM Slots
Supports up to 256GB ECC RDIMM
Supports up to 512GB ECC LRDIMM
2666/2400/2133 MHz (Operates up to 2133MHz)
|
Video |
ASPEED AST2500
|
Storage Technology |
12 x SoC SATA3 6Gb/s ports
Supports Software RAID 0, 1, 5, 10
1 x M.2 2280 slot (PCI-E 3.0 x4, SATA, M-Key)
1 x M.2 3042 slot (PCI-E 3.0 x2, USB 3.0, SATA, B-Key)
|
Connectivity |
4 x Intel I350-AM4 GbE LAN
2 x SoC 10GBase-T LAN
2 x SoC 10G SFP+ LAN
1 x Realtek RTL8211F PHY Dedicated IPMI
|
Expansion Slots |
1 x PCI-E 3.0 x16 slot
1 x PCI-E 3.0 x8 slot
1 x Mini PCI-E with mSATA Support
|
Power |
24-Pin ATX Power Connector
8-Pin 12V Power
|
Rear I/O |
1 x RJ45 Dedicated IPMI
2 x USB 3.0
4 x RJ45 GbE LAN
2 x RJ45 10GBase-T LAN
2 x 10G SFP+ Ports
1 x VGA
|
Onboard I/O Headers |
2 x USB 2.0 headers
1 x COM Port header
1 x TPM header
|
Form Factor |
Flex ATX
9" x 7.25"
228.6mm x 184.15mm
|
Environmental |
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Operating Humidity: 8% to 90% (non condensing)
Non-Operating Humidity: 5% to 95% (non condensing)
|
Warranty |
1-Year Manufacturer's Limited Warranty
|
