| Manufacturer | Jetway |
| Part Number | UTX-ARS1-H8100210 |
| Model Name | UTX-ARS1-H810 |
| CPU | Intel Core Ultra Processors (Series 2), Arrow Lake-S Socket LGA 1851 Up to 125W TDP |
| Chipset | Intel H810 Onboard Nuvoton TPM v2.0 |
| Memory | 2 x DDR5 DIMM slots CUDIMM Suppo UDIMM Supports 5600 MT/s (Ultra 5 non-K) Supports up to 48GB per DIMM |
| Video | Intel HD Graphics (CPU Dependent) HDMI 2.1 Max Resolution: 3840x2160@60Hz DisplayPort 1.4a Max Resolution: 4096x2160@60Hz LVDS/eDP Max Resolution: 1920x1200@60Hz Supports Triple Displays |
| Audio | Realtek ALC897 HD Audio with 3W Amplifier |
| Storage Technology | 2 x SATA3 6Gb/s Connectors 1 x M.2 2280/2242 slot (SATA, M-Key) |
| Connectivity | 2 x Intel I226-V 2.5GbE LAN |
| Expansion Slots | 1 x PCI-E 5.0 x16 slot 1 x PCI-E 4.0 x4 slot 1 x PCI-E 4.0 x1 slot 1 x M.2 2230 slot (E-Key, USB 3.2/2.0, PCIe 4.0 x1, CNVI) 1 x Nano SIM slot |
| Power | 1 x 24-Pin ATX Power Connector 1 x 8-Pin 12V ATX Power Connector for CPU |

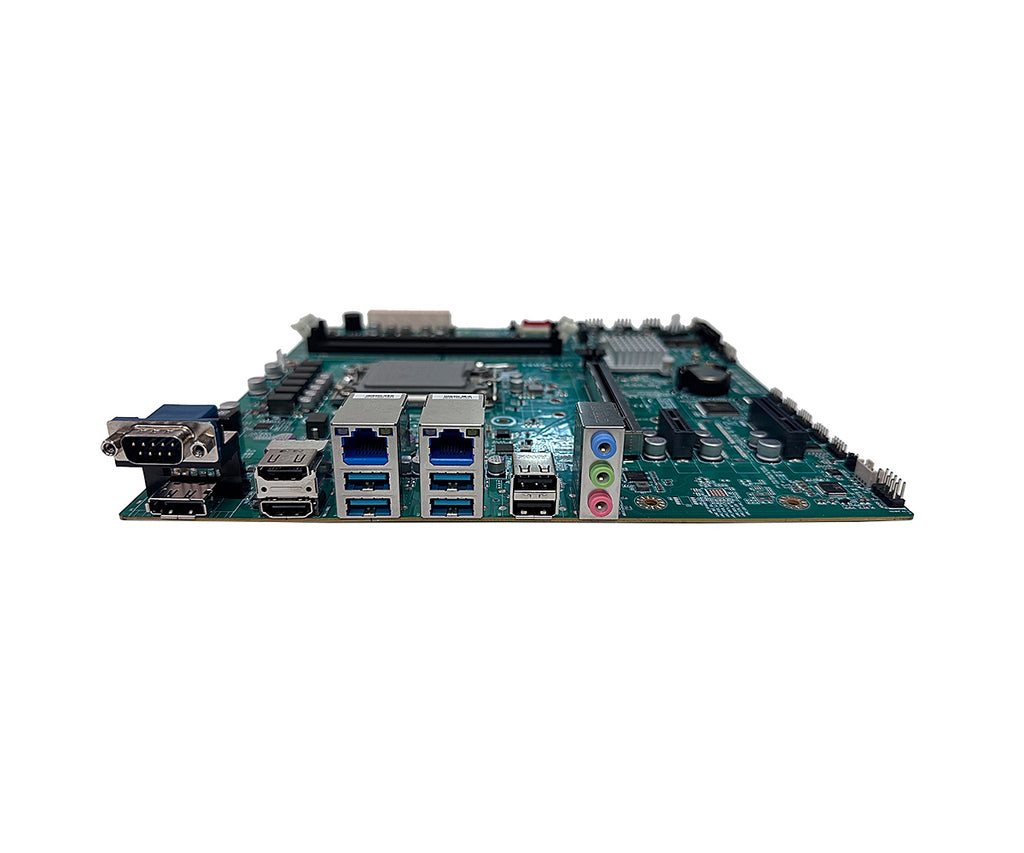

| Rear I/O | 1 x COM (RS232/422/485) 1 x DisplayPort 1.4a 2 x HDMI 2.1 TMDS 2 x RJ45 2.5GbE LAN 4 x USB 3.2 (Gen2x1) 2 x USB 2.0 3 x Audio I/O |
| Onboard I/O Headers | 1 x USB 3.2 (Gen1x1) header (Supports 2 ports) 3 x USB 2.0 headers (Supports 6 ports) 5 x COM headers (RS232) 1 x 24-bit Combo LVDS or eDP Connector 1 x 8-bit GPIO header 1 x AT/ATX Mode Jumper 1 x PS2 Keyboard/Mouse header 1 x 9-pin Front Audio header 1 x 5-pin SMBUS header 3 x Fan header |
| OS Support | Windows 11 (64-bit), Windows 11 IoT Enterprise (64-bit) CentOS 9, Debian 11.4, Fedora 36-1.5, OpenSUSE 15.4 Ubuntu 22.04, VMware ESXi 8, OpenBSD 7.1 |
| Form Factor | Micro ATX 244 x 244mm 9.6" x 9.6" (in inches) |
| Environmental | Operating Temperature: -20°C to 60°C (-4°F to 140°F) Non-Operating Temperature: -20°C to 85°C (-4°F to 185°F) Humidity: 10% to 90% (non condensing) Opereating Vibration: 1 Grms/5~500Hz |
| Warranty | 1-Year Manufacturer's Limited Warranty |
PRODUCT ID: UTX-ARS1-H8100210
