Manufacturer	GigaIPC
Part Number	uATX-Q870A
CPU	Supports Intel 15th Gen Core Ultra Series 2 Processors, Arrow Lake-S Socket LGA 1851 Maximum 65W TDP
Chipset	Intel Q870 Onboard TPM 2.0 Infineon SLB9670VQ2.0
Memory	4 x DDR5 DIMM slots Maximum 192GB Capacity UDIMM: 5600 MHz (Non-ECC, Un-buffered) CUDIMM: 6400 MHz (Clocked Un-buffered) Dual Channel
Video	Intel UHD Graphics (CPU Dependent) HDMI Max Resolution: 7680x4320@60Hz DisplayPort Max Resolution: 4096x2160@60Hz VGA Max Resolution: 1920x1080@60Hz LVDS Max Resolution: 1920x1200@60Hz Supports Quad Displays
Audio	Realtek ALC897
Storage Technology	4 x SATA Connectors Supports RAID 0/1/5/10 1 x M.2 2280/2242 slot (PCI-E 4.0 x4)
Connectivity	1 x Intel I226LM 2.5GbE LAN 3 x Intel I226V 2.5GbE LAN
Expansion Slots	1 x PCI-E 5.0 x16 slot (x16 or x8/x8 with slot2) 1 x PCI-E 5.0 x16 slot (x8 bandwidth shared withe slot1) 1 x PCI-E 4.0 x1 1 x PCI-E 4.0 x4 1 x M.2 2230 slot (E Key)
Power	1 x 24-Pin ATX Power Connector 1 x 12V 8-Pin ATX Power Connector for CPU

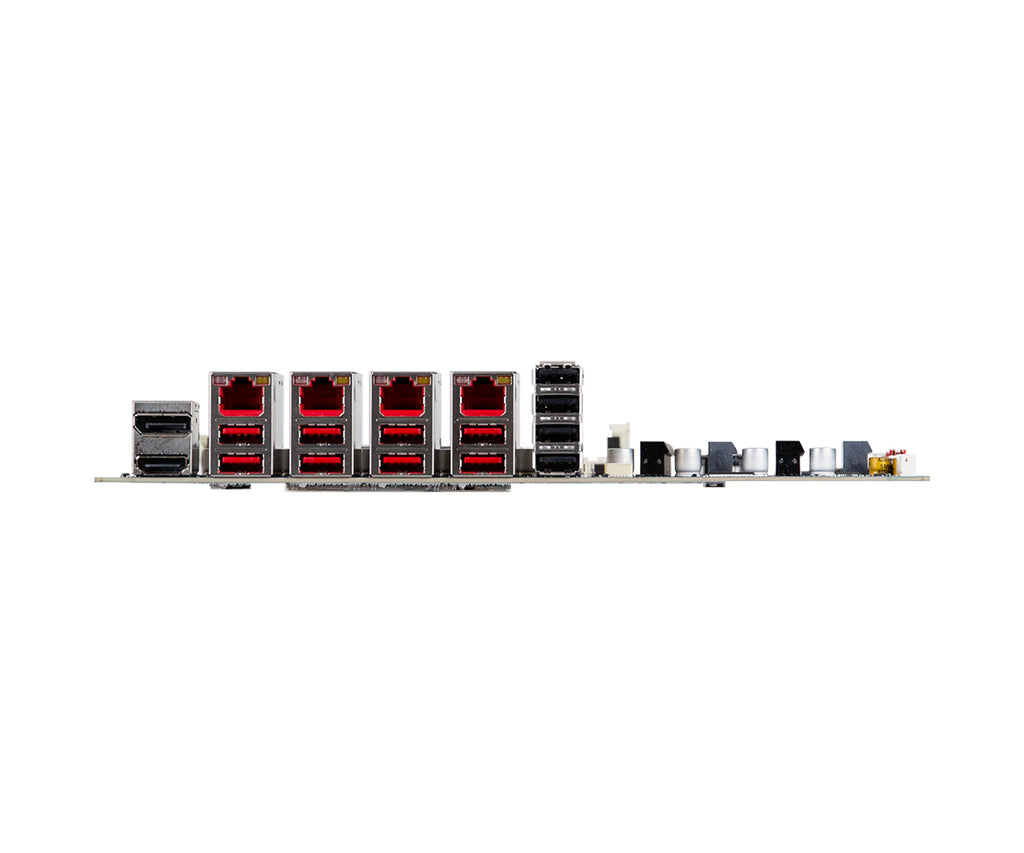

Rear I/O	1 x DisplayPort 1 x HDMI 4 x RJ45 2.5GbE LAN 8 x USB 3.2 (Gen2x1) 4 x USB 2.0
Onboard I/O Headers	1 x CPU Fan header 2 x System Fan header 1 x Front Panel header 1 x Front Panel Audio header 1 x Speaker Out header 1 x VGA header 4 x USB 2.0 headers 2 x COM header (RS232/422/485, RI/5V/12V) 2 x COM header (RS232) 1 x 8-bit GPIO and SMBus header 1 x Backlight Control header 1 x Clear CMOS jumper 1 x AT/ATX Mode Select jumper
OS Support	Windows 11 IoT Enterprise LTSC 2024 24H2 (64bits) Windows 11 Windows 10
Form Factor	Micro ATX 9.6" x 9.6" 244 x 244mm
Environmental	Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 20% to 90% @ 60°C (non condensing) Storage Humidity: 85% (non condensing)
Warranty	2-Year Manufacturer's Limited Warranty
