Manufacturer	ASRock Rack
Part Number	TURIND8X-2T/500W
CPU	Supports AMD EPYC 9005 / 9004 Series Processors Supports AMD 97x4 Series Processors Socket SP5 (LGA 6096) AMD 3D V-Cache™ Technology Max CPU TDP up to 500W
Chipset	SoC (System on Chip)
Memory	8 x DDR5 288-pin DIMM slots (1DPC) Max 128GB Capacity per RDIMM Max 256GB Capacity per RDIMM-3DS Up to 6400 MHz 1.1V / ECC Supported
Video	ASPEED AST2600 DDR4 512MB VRAM
Storage Technology	1 x M.2 22110/2280 slot (PCIe 5.0 x4 or 4 x SATA 6Gb/s, M Key) 1 x M.2 22110/2280 slot (PCIe 5.0 x4, M Key)** 2 x MCIO (PCIe 5.0 x4 or 4 x SATA 6Gb/s)*** 1 x MCIO (PCIe 5.0 x4 or 4 x SATA 6Gb/s) 1 x MCIO (PCIe 5.0 x4)** Notes: Up to 16 x SATA 6Gb/s total (3 x MCIO + 4 x SATA via optional M2U2_HD_G4 M.2 device). **SLOT1 shares lanes with 1 x MCIO and 1 x M.2 slot; auto-switches to PCIe 5.0 x8 if either is populated. ***SLOT7 shares lanes with 2 x MCIO. When SLOT7 is occupied, 1 x MCIO will not function and 1 x MCIO can be enabled by jumper setting (SLOT7 switches to PCIe x4).
Expansion Slots	4 x PCIe 5.0 / CXL 2.0 x16 slots (SLOT0, SLOT2, SLOT4, SLOT6)* 3 x PCIe 5.0 x16 slots (SLOT1**, SLOT3, SLOT5)  1 x PCIe 5.0 x8 slot (SLOT7***) Notes: * Supports CXL 1.1 when paired with AMD EPYC 9004/97x4 series processors. ** SLOT1 shared lanes with 1 MCIO and 1 M.2. SLOT1 auto-switch to PCIe5.0 x8 when either 1 MCIO or 1 M.2 populated. ***SLOT7 share lanes with 2 MCIO. When SLOT7 occupied, 1 MCIO will not function and 1 MCIO can be enabled by jumper setting. When selecting 1 MCIO, SLOT7 will switch to PCIex4.
Connectivity	2 x Broadcom BCM57416 10GbE LAN 1 x Realtek RTL8211F Dedicated Management LAN
Power	1 x 24-Pin ATX Main Power Connector 3 x 8-Pin 12V ATX Power Connectors

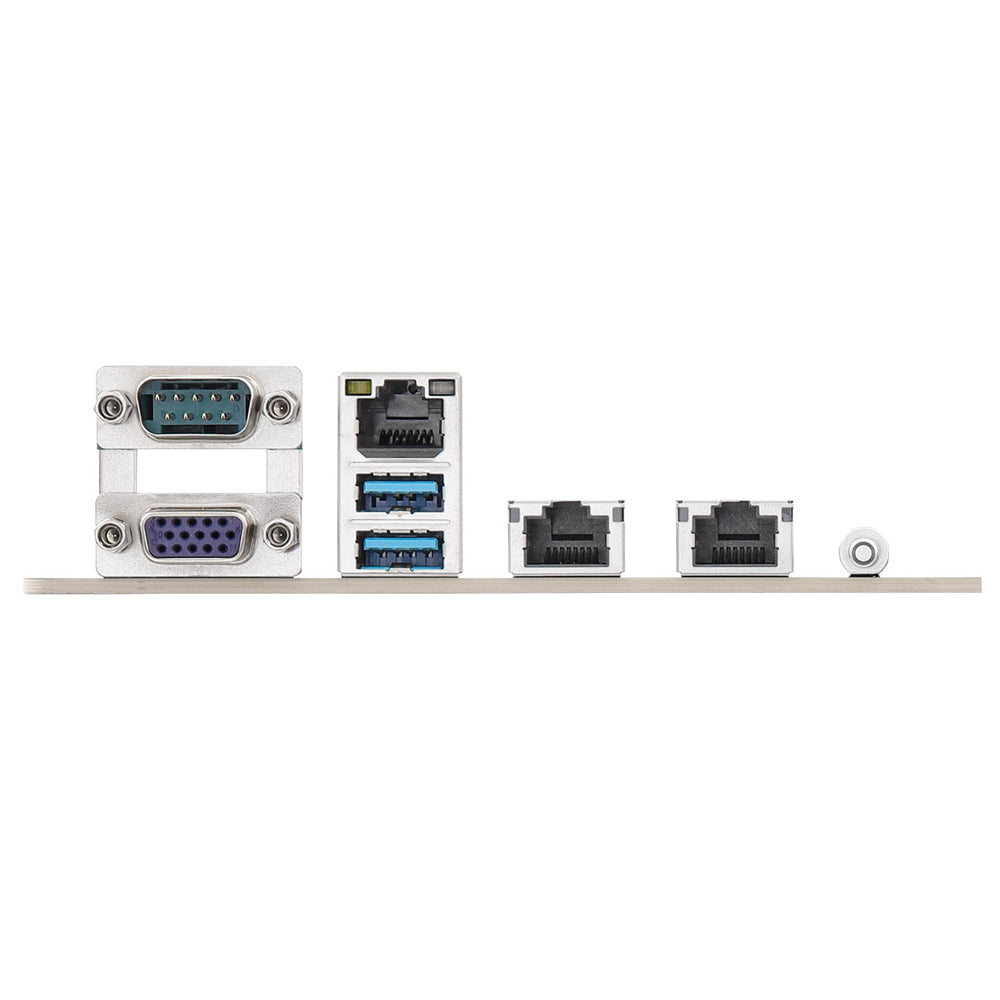

Rear I/O	1 x DB9 (COM) 1 x DB15 (VGA) 1 x RJ45 Dedicated Management LAN 2 x USB 3.2 Gen1 (Type-A) 2 x RJ45 10G LAN 1 x UID Button w/ LED
Onboard I/O Headers	1 x 18-pin Auxiliary Panel header (Chassis Intrusion, System Fault LED, LAN1/LAN2 Activity, Locate, SMBus) 1 x 9-pin System Panel (Power Switch, Reset Switch, System Power LED, HDD LED) 1 x COM header 1 x VGA header 1 x 4-pin Speaker header 8 x 6-pin Fan headers 1 x Thermal Sensor header 1 x 13-Pin SPI TPM header 1 x SMBus header 1 x PMBus header 1 x IPMB header 1 x Clear CMOS (contact pads) 1 x USB 3.2 (Gen1) header (supports 2 ports) 1 x NMI header 1 x BMC_SMB header
OS Support	Microsoft® Windows: (for EPYC 9004) - Server 2019 (64 bit) - Server 2022 (64 bit) Microsoft® Windows: (for EPYC 9005) - Server 2019 (64 bit) - Server 2022 (64 bit) - Server 2025 (64 bit) Linux: (for EPYC 9004) - RedHat Enterprise Linux Server 8.6 (64bit) / Server 8.7 (64 bit) / Server 9.0 (64 bit) / Server 9.1 (64 bit) - SUSE SLES 15.4 (64 bit) - UBuntu 20.04.5 (64 bit) / 22.04 (64 bit) / 22.10 (64 bit) Linux: (for EPYC 9005) - RedHat Enterprise Linux Server 8.10 (64bit) / Server 9.4 (64 bit) - SUSE SLES 15.6 (64 bit) - UBuntu 22.04.5 (64 bit) / 24.04.2 (64 bit) Hypervisor: (for EPYC 9004) - VMWare® ESXi 8.0 Hypervisor: (for EPYC 9005) - VMWare® ESXi 9.0
Form Factor	EEB 12.63" x 13"
Environmental	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-Operating Humidity: 20% to 90% (Non-condensing)
Warranty	1-Year Manufacturer's Limited Warranty
