Manufacturer	ASRock
Part Number	TRX40 Creator
CPU	Supports AMD Ryzen Threadripper, Socket TR4
Chipset	AMD TRX40
Memory	8 x DDR4 DIMM slots Supports up to 256GB ECC/Non-ECC UDIMM 2133MHz Minimum Quad Channel Memory Technology
Video	N/A
Audio	Realtek ALC4050H+ALC1220 7.1 CH HD Audio
Storage Technology	8 x SATA3 6.0Gb/s Connectors Support RAID 0, RAID 1, RAID 10 NCQ, AHCI and Hot Plug 2 x Hyper M.2 Sockets: PCI-E 4.0 x4 1 x Hyper M.2 Socket: SATA3 6.0Gb/s and PCI-E 4.0 x4 Supports NVMe SSD as boot disks
Connectivity	1 x Aquantia Marvell AQC107 10GbE LAN Supports Lightning/ESD Protection Supports PXE 1 x Dragon RTL8125AG 2.5GbE LAN Supports Dragon 2.5G LAN Software Supports Wake-On-LAN Supports Lightning/ESD Proection Supports Energy Efficient Ethernet 802.3az Supports PXE 1 x Intel 802.11ax WIFI Module Supports IEEE 802.11a/b/g/n/ax Supports Dual Band (2.4/5GHz) Supports WIFI6 802.11ax (2.4Gbps) Supports Bluetooth 5.0 + High speed class II Supports MU-MIMO
Expansion Slots	4 x PCI-E 4.0 x16 slots (x16/x8/x16/x8)
Power	1 x 24-Pin ATX Power Connector 2 x 8-Pin 12V ATX Power Connector for CPU 1 x 6-pin 12V Power Connector

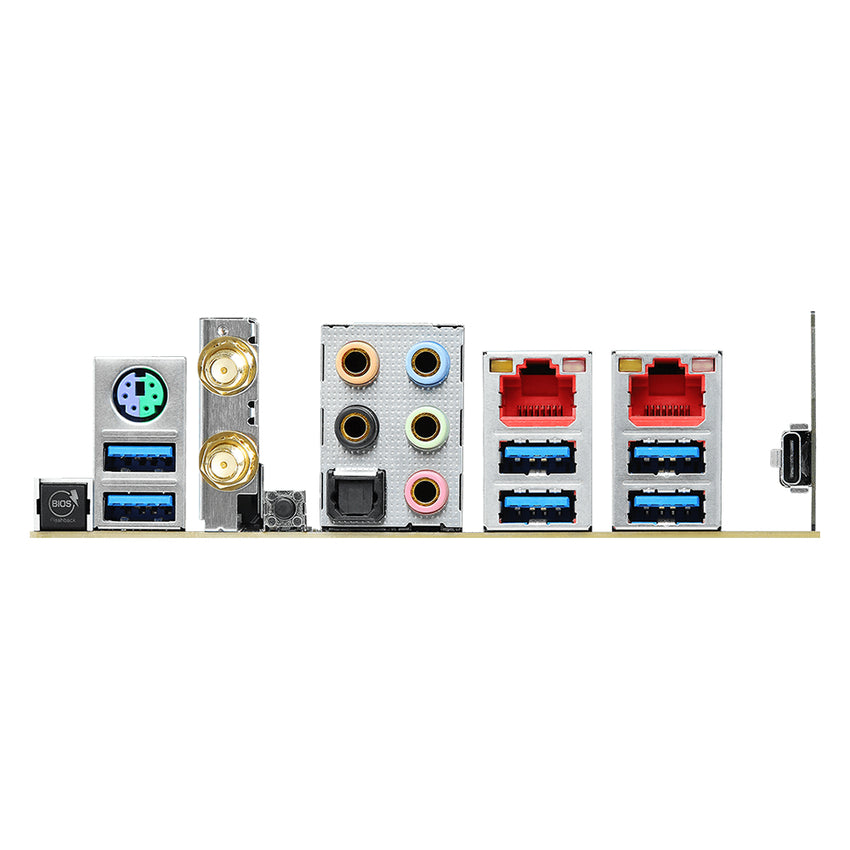

Rear I/O	1 x BIOS Flashback Button 1 x PS/2 Keyboard/Mouse Port 2 x USB 3.2 (Gen 2) Type-A 2 x Antenna Connectors 1 x Clear CMOS Button 5 x Audio I/O 1 x Optical SPDIF Out Port 1 x RJ45 2.5GbE LAN 4 x USB 3.2 (Gen1) Type-A 1 x RJ45 10G LAN 1 x USB 3.2 (Gen2x2) Type-C
Onboard I/O Headers	1 x TPM Header 1 x Power LED and Speaker Header 2 x RGB LED Headers (Support in total up to 12V/3A, 36W LED Strip) 2 x Addressable LED Headers (Support in total up to 5V/3A, 15W LED Strip) 1 x 4-Pin CPU Fan Connector (Supports maximum 1A 12W) 1 x 4-Pin CPU/Water Pump Fan Connector (Supports maximum 2A 24W) 3 x 4-Pin Chassis/Water Pump Fan Connectors (Supports maximum 2A 24W) 1 x Front Panel Audio Connector 1 x Right Angle Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) 1 x Dr. Debug with LED 1 x Power Button 1 x Reset Button 1 x CPU Xtreme OC Switch
Form Factor	ATX 12" x 9.6" 305 x 244mm
Certifications	FCC, CE ,br. ErP/EuP Ready (ErP/EuP ready power supply is required)
Warranty	1-Year Manufacturer's Limited Warranty
