| Manufacturer | Supermicro |
| Product ID | SYS-E50-9AP-WIFI |
| CPU | Intel Atom x5-E3940 Processor 1.60 - 1.80 GHz 4 core / 4 Threads 9.5W TDP, 2MB L2 Cache |
| Chipset | SoC |
| Memory | 1 x DDR3L SODIMM slots Maximum 8GB capacity 1866MHz non-ECC, Unbuffered Memory Only Requires Low Voltage 1.35V |
| Video | Intel HD Graphics 500 400 - 600 MHz 2GB Max Graphics Video Memory HDMI Max Resolution: 3840x2160@30Hz |
| Audio | ALC 888S HD Audio |
| Storage Technology | SATA3 6.0Gb/s M.2: SATA |
| Connectivity | 2 x Intel I210-IT GbE LAN Dual Band Wireless 802.11ac and Bluetooth 4.2 |
| Expansion Slots | 1 x M.2 2230 slot (E Key, Occupied by WIFI Module) 1 x Mini PCI-E slot (Full Sized) 1 x Mini PCI-E slot (Half Sized) |

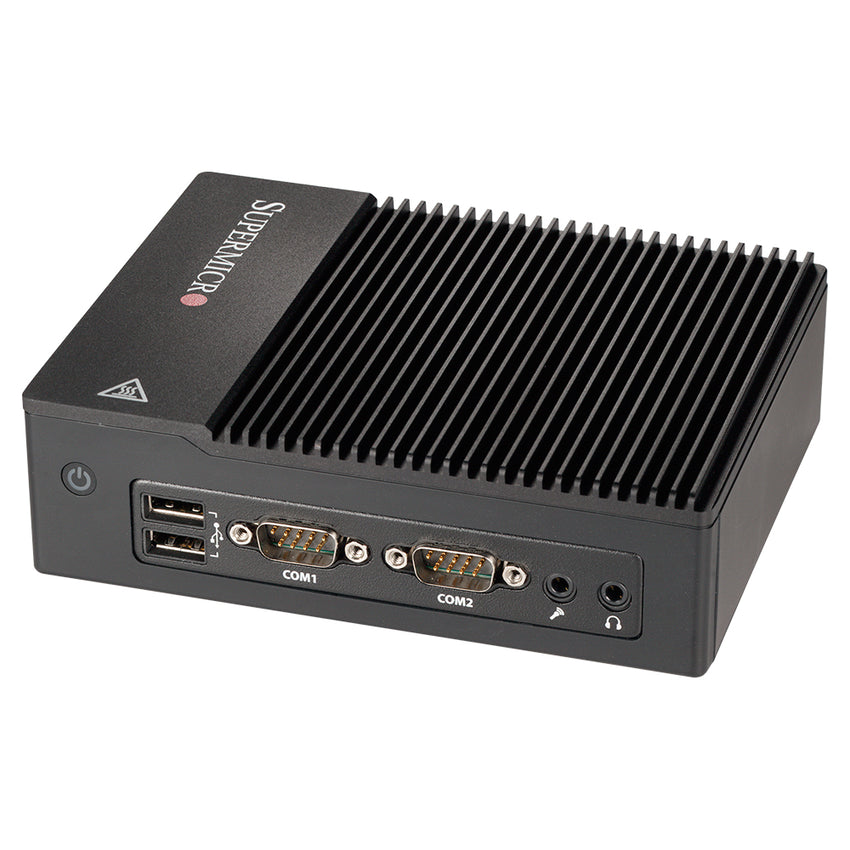

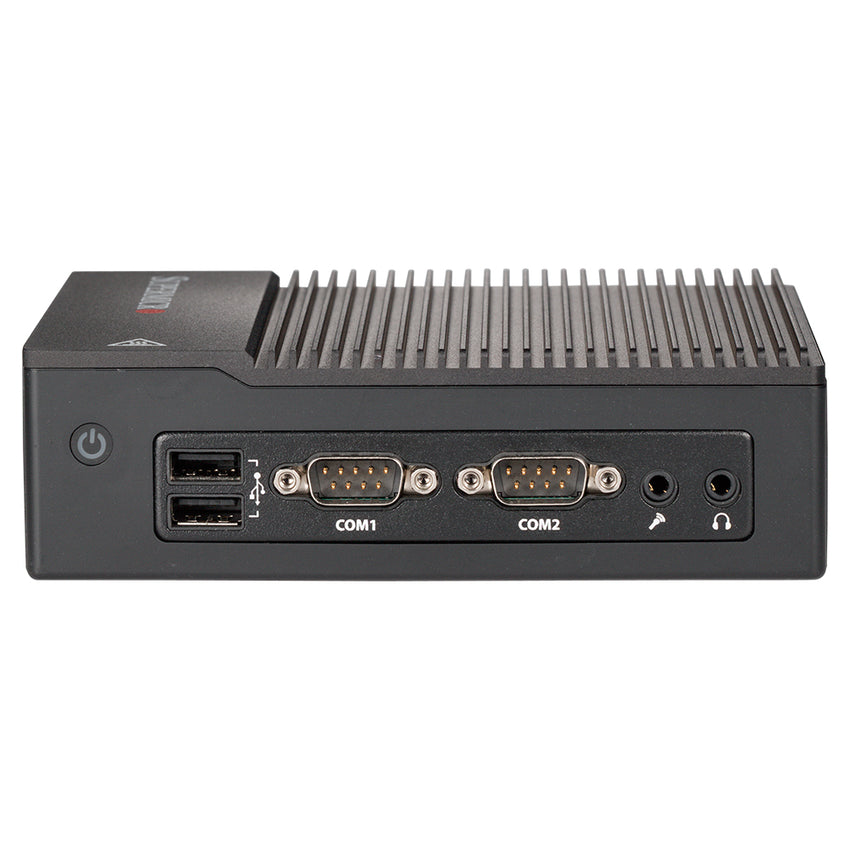

| Front Panel I/O | 1 x Power Button 2 x USB 2.0 2 x COM Ports (RS232/422/485) 2 x Audio I/O |

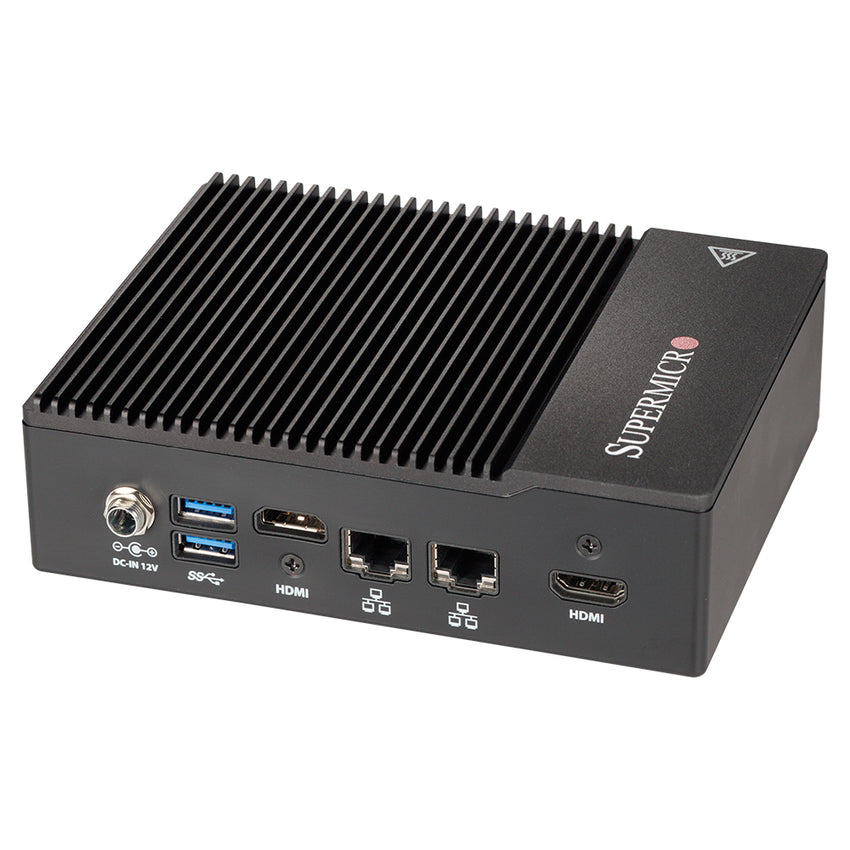

| Rear Panel I/O | 1 x 12V DC-IN 2 x USB 3.0 2 x HDMI 2 x RJ45 GbE LAN |
| Drive Support | 1 x 2.5" SATA Drive Bay (7mm Max Height) 1 x M.2 SATA slot (2242, B Key) |
| Power Supply | 12V DC-IN 40W 12V Locking Power Supply |
| Case Dimensions | 118 x 44 x 148mm 4.64" x 1.72" x 5.82" (in inches) Weight: 2.2 lbs, 1 kg |
| Environmental | Operating Temperature: -20°C to 50°C (-4°F to 122°F) Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidty: 8% - 90% (non-condensing) Non-Operating Humidity: 5% - 95% (non-condensing) |
| Compliance | RoHS Compliant |
| Warranty | 1-Year Manufacturer's Limited Warranty on Parts 3-Year Manufacturer's Limited Warranty on Labor |
PRODUCT ID: SYS-E50-9AP-WIFI
