| Product ID | SYS-E302-9D |
| CPU | Intel Xeon D-2123IT Processor 2.2 - 3.0 GHz 4 Cores / 8 Threads 60W TDP, 8MB Cache |
| Chipset | SoC |
| Memory | 4 x DDR4 DIMM slots Supports up to 512GB ECC LRDIMM Supports up to 256GB DDR4 ECC/Non-ECC RDIMM |
| Video | Aspeed AST 2500 BMC |
| Storage Technology | 4 x SATA3 6Gb/s Connectors 2 x Mini SAS HD Ports support for 2 NVMe U.2 or 8 x SATA |
| Connectivity | 2 x SoC 10G SFP+ Ports 2 x Intel X557 10GBase-T LAN Ports 4 x Intel I350-AM4 GbE LAN Ports |
| Expansion Slots | 1 x PCI-E 3.0 x8 slot Note: Space shared with 2.5" Drive bay |

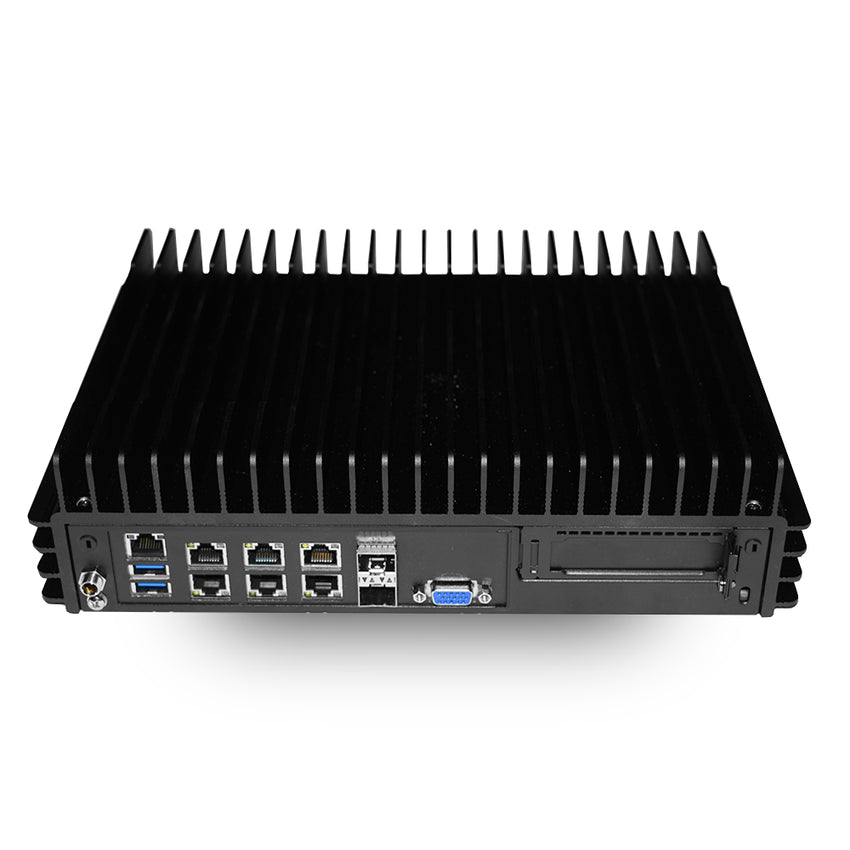

| Rear Panel I/O | 1 x 12V DC-IN 1 x RJ45 Dedicated IPMI 2 x USB 3.0 4 x RJ45 GbE LAN 2 x RJ45 10GBase-T LAN 2 x SFP+ 10G Ports 1 x VGA |
| Front Panel I/O | 1 x Power Button w/ LED |
| Drive Support | 1 x 2.5" Drive Bay (Space shared with PCI-E Expansion, Requires additional cable) 1 x M.2 2280 slot (PCI-E 3.0 x4, M Key) 1 x M.2 2242 slot (PCI-E 3.0 x2 or SATA, B Key) |
| Fan Support | N/A |
| Power Supply | 12V DC-IN 150W 12V AC-DC Adapter |
| Case Dimensions | 206 x 76 x 295mm 8.1" x 3" x 11.6" (in inches) |
| Mounting | Optional Wall Mount Kit |
| Environmental | Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 8% to 90% (non-condensing) Non-operating Humidty: 5% to 95% (non-condensing) |
| Compliance | RoHS |
| Warranty | 1-Year Manufacturer's Limited Warranty on Parts 3-Year Manufacturer's Limited Warranty on Labor |
PRODUCT ID: SYS-E302-9D
