| Product ID | SYS-E302-9A |
| CPU | Intel Atom C3558 Processor 2.2 GHz 4 Cores / 4 Threads 16W TDP, 8MB Cache |
| Chipset | SoC |
| Memory | 4 x DDR4 DIMM slots Supports up to 256GB ECC RDIMM Supports up to 64GB DDR4 ECC/Non-ECC UDIMM |
| Video | Aspeed AST 2400 BMC |
| Storage Technology | 2 x SATA3 6Gb/s Connectors |
| Connectivity | 4 x Intel SoC C3000 GbE LAN Ports 1 x Realtek RTL8211F Dedicated IPMI |
| Expansion Slots | Note: PCI-E slot not available |

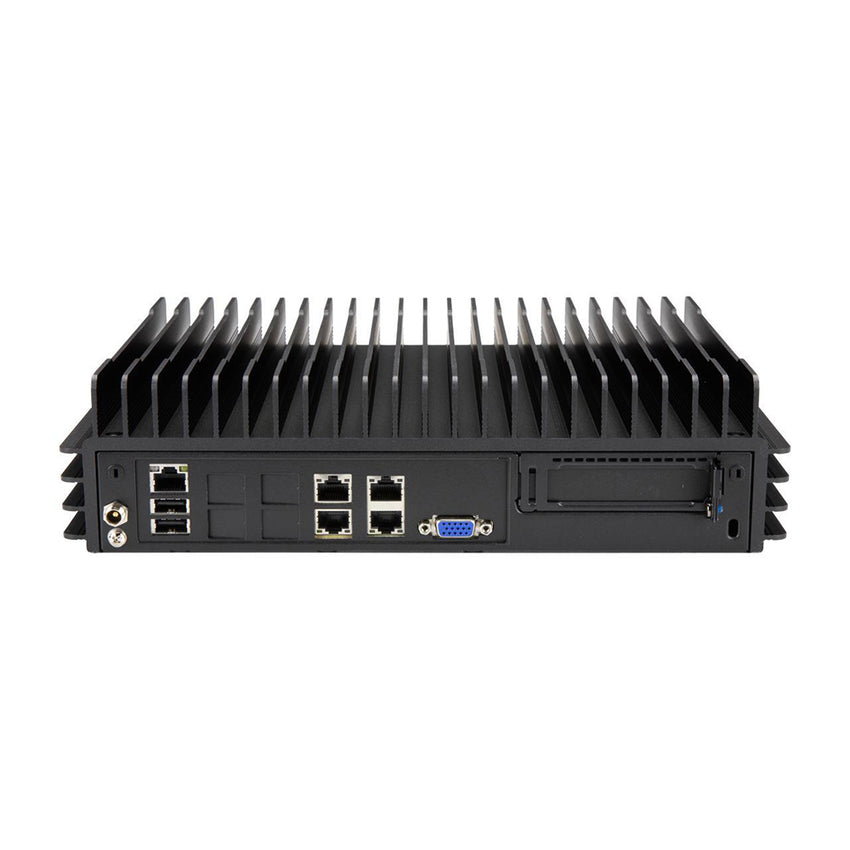

| Rear Panel I/O | 1 x 12V DC-IN 1 x RJ45 Dedicated IPMI 2 x USB 2.0 4 x RJ45 GbE LAN 1 x VGA |
| Front Panel I/O | 1 x Power Button w/ LED |
| Drive Support | 2 x 2.5" Drive Bay 1 x M.2 2242/2280 slot (PCI-E 3.0 x2 and SATA, M Key) |
| Power Supply | 12V DC-IN 60W 12V AC-DC Adapter |
| Case Dimensions | 206 x 76 x 295mm 8.1" x 3" x 11.6" (in inches) |
| Mounting | Optional Wall Mount Kit |
| Environmental | Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 8% to 90% (non-condensing) Non-operating Humidty: 5% to 95% (non-condensing) |
| Compliance | RoHS |
| Warranty | 1-Year Manufacturer's Limited Warranty on Parts 3-Year Manufacturer's Limited Warranty on Labor |
PRODUCT ID: SYS-E302-9A
