Manufacturer	Supermicro
Product ID	SYS-E300-12D-4CN6P
CPU	Intel Xeon D-1718T Processor 4 Cores / 8 Threads 2.6 - 3.5 GHz 46W TDP, 10MB Cache
Chipset	SoC
Memory	4 x DDR4 DIMM slots Maximum 256GB RDIMM Capacity Maximum 128GB UDIMM Capacity Supports ECC RDIMM, ECC/Non-ECC UDIMM 2933/2666/2400 MHz
Video	Aspeed AST2600 BMC
Audio	N/A
Storage Technology	2 x SoC SATA3 6Gb/s Ports 2 x SlimSAS (8 x SATA or 2 x PCI-E 3.0 x4) Supports RAID 0, 1, 5, 10 M.2 M-Key: PCI-E 3.0 x4 or SATA
Connectivity	2 x Intel SoC 25GBbE LAN 2 x Intel i210-AT GbE LAN 2 x Intel I350-AM2 GbE LAN 1 x Realtek RTL8211F Dedicated IPMI
Expansion Slots	1 x PCI-E 4.0 x16 slot (Low Profile) 1 x M.2 2230 slot (E Key, PCI-E 3.0 x1/USB 2.0) 1 x M.2 2280/3042/3052 slot (PCI-E 3.0 x2/SATA/USB 3.0)

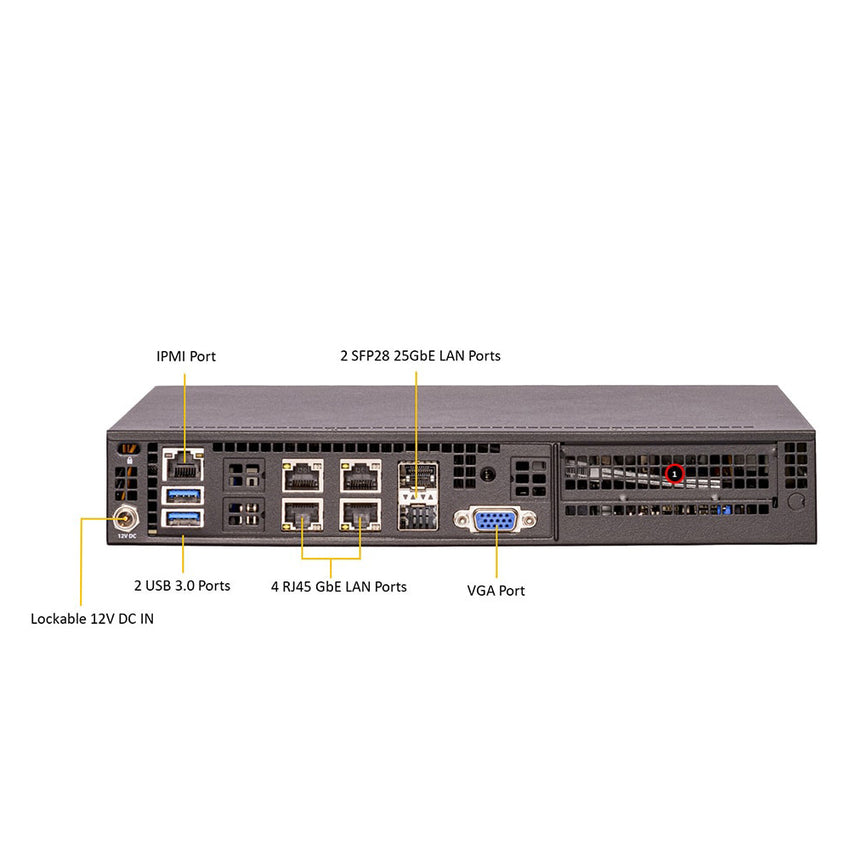

Rear Panel I/O	1 x 12V DC-IN 1 x RJ45 GbE Dedicated IPMI 2 x USB 3.0 4 x RJ45 GbE LAN 2 x SFP28 25G LAN Ports 1 x VGA

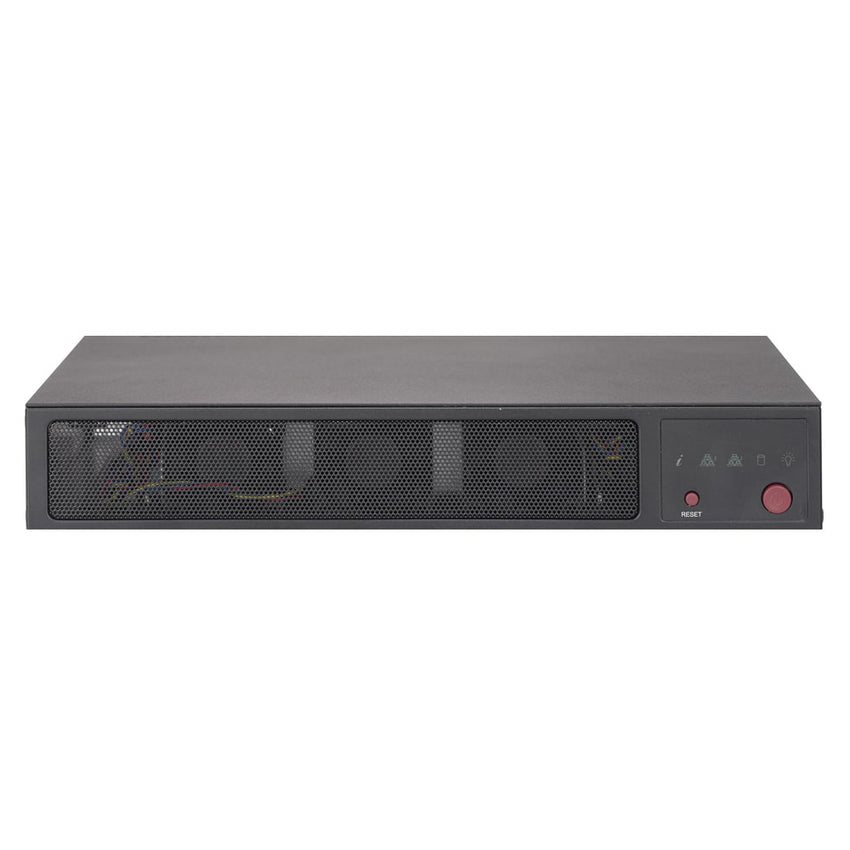

Front Panel I/O	5 x Status LED (Power, LAN, HDD, BMC) 1 x Reset Button 1 x Power Button
Drive Support	1 x M.2 2280 slot (PCI-E 3.0 x4 or SATA) 1 x 2.5" Drive Bay (Shared with PCI-E slot)
OS Support	Windows Server 2019, Windows Server 2022 RHEL 8.4, Oracle Linux 8.3
Cooling	Supports 3 x 40x28mm Fans Includes 2 x 40x28mm 13K RPM Fans
Power Supply	180W 12V Lockable DC Power Supply 100-240Vac / 15A Max / 47-63Hz
Case Dimensions	8.9" x 10" x 1.7" (in inches) 226 x 254 x 43mm
Mounting	Optional 1U Rackmount Kit
Environmental	Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 8% to 90% (non-condensing) Non-operating Humidty: 5% to 95% (non-condensing)
Warranty	1-Year Manufacturer's Limited Warranty
