| Manufacturer | Supermicro |
| Product ID | SYS-E102-13R-E |
| CPU |
Intel Core i5-1350PE Processor 4 P-Cores / 8 E-Cores / 16 Threads 1.80 - 4.60 GHz 20W-64W TDP, 12 MB Intel Smart Cache |
| Chipset |
SoC Onboard TPM 2.0 Infineon SLB9670V |
| Memory |
2 x DDR5 SODIMM slots 4800 MHz Maximum 64GB Capacity |
| Video |
Intel Iris Xe Graphics 1.40 GHz 80 Execution Units HDMI 2.0b Max Resolution: 4096x2304@60Hz HDMI 1.4 Max Resolution: 4096x2160@30Hz DisplayPort Max Resolution: 7680x4320@60Hz Supports 4 Displays |
| Audio | ALC 888S HD Audio |
| Storage Technology |
1 x SATA3 6Gb/s Connector 1 x M.2 2280 slot: PCI-E 4.0 x4 (M-Key) |
| Connectivity |
2 x Intel I226-IT 2.5GbE LAN Supports IPMI 2.0 with virtual media over LAN and KVM-over-LAN |
| Expansion Slots |
1 x M.2 2230 slot (E-Key) 1 x M.2 2242/3042/2280 slot (B Key) 1 x Nano SIM |

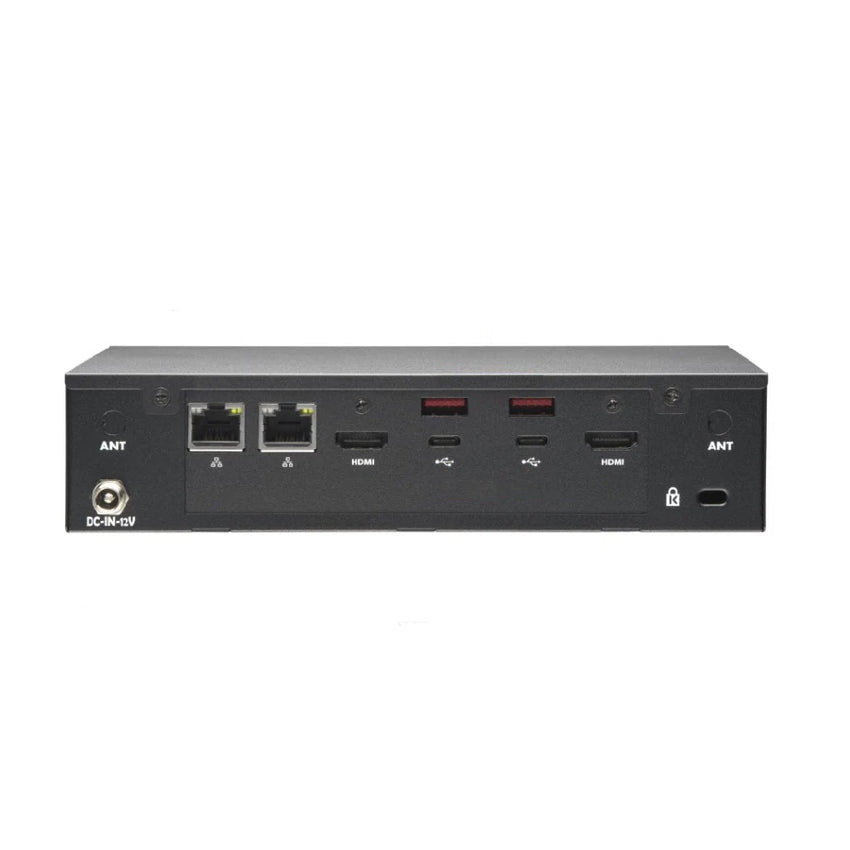

| Rear Panel I/O |
1 x 12V DC-IN 2 x RJ45 2.5GbE LAN 1 x HDMI 1.4 2 x USB 3.2 (Gen2) 2 x USB 3.2 (Gen2) Type-C (Supports DisplayPort 1.4A) 1 x HDMI 2.0b 1 x Kensington Lock 1 x Antenna Cutout |

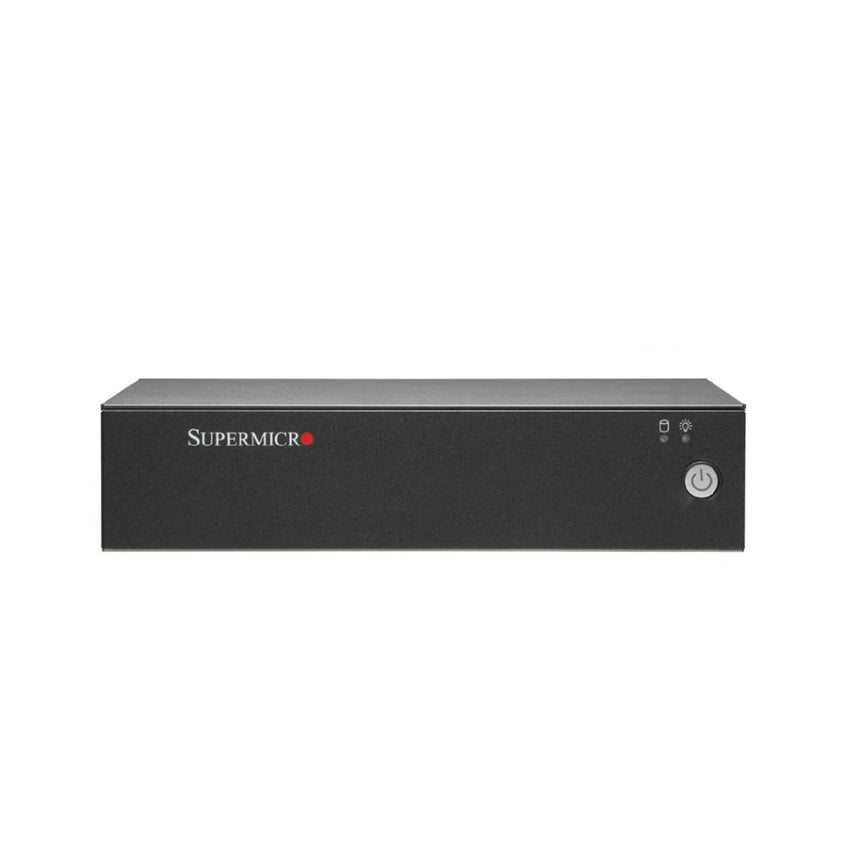

| Front Panel I/O |
2 x Status LED (Power, HDD) 1 x Power Button |
| Drive Support |
1 x 2.5" SATA Drive Bay 1 x M.2 2280 slot (PCI-E 4.0 x4, M-Key) |
| OS Support |
Windows 10 Windows 11 |
| Power Supply |
12V DC-IN 84W AC-DC Adapter 100-240Vac / 47-63 Hz |
| Case Dimensions |
120 x 190 x 44mm 4.72" x 7.48" x 1.72" (in inches) |
| Cooling |
1 x 40x15mm PWM Fan |
| Mounting |
Optional Dual System Tray Optional Sliding Rail Kit Optional Mounting Clip for DIN Rail Optional Wall/VESA Mount |
| Environmental |
Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 8% to 90% (non-condensing) Non-Operating Humidity: 5% to 95% (non-condensing) |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: SYS-E102-13R-E
