| Manufacturer | Supermicro |
| Product ID | SYS-E100-9W-H |
| CPU | Intel Core i7-8665UE 1.70 - 4.40 GHz 4 Cores / 8 Threads 15W TDP, 8MB Cache |
| Chipset | SoC |
| Memory | 2 x DDR4-2400MHz SODIMM slots Supports up to 64GB Capacity Non-ECC, Unbuffered Memory Only |
| Video | Intel UHD Graphics 620 300 MHz - 1.15 GHz HDMI Max Resolution: 4096x2160@30/24Hz DisplayPort Max Resolution: 4096x2304@60Hz |
| Audio | ALC 888S HD Audio |
| Storage Technology | M.2: NVME or SATA3 |
| Connectivity | 1 x Intel I210IT GbE LAN 1 x Intel PHY I219LM GbE LAN |
| Expansion Slots | 1 x M.2 2280/2242 slot (M-Key, PCI-E x4 or SATA) 1 x M.2 2242/3042 slot with nano SIM holder (B-Key, SATA, USB3, USB2) 1 x M.2 2230 slot (E-Key, CNVi, PCI-E x1, USB2) |

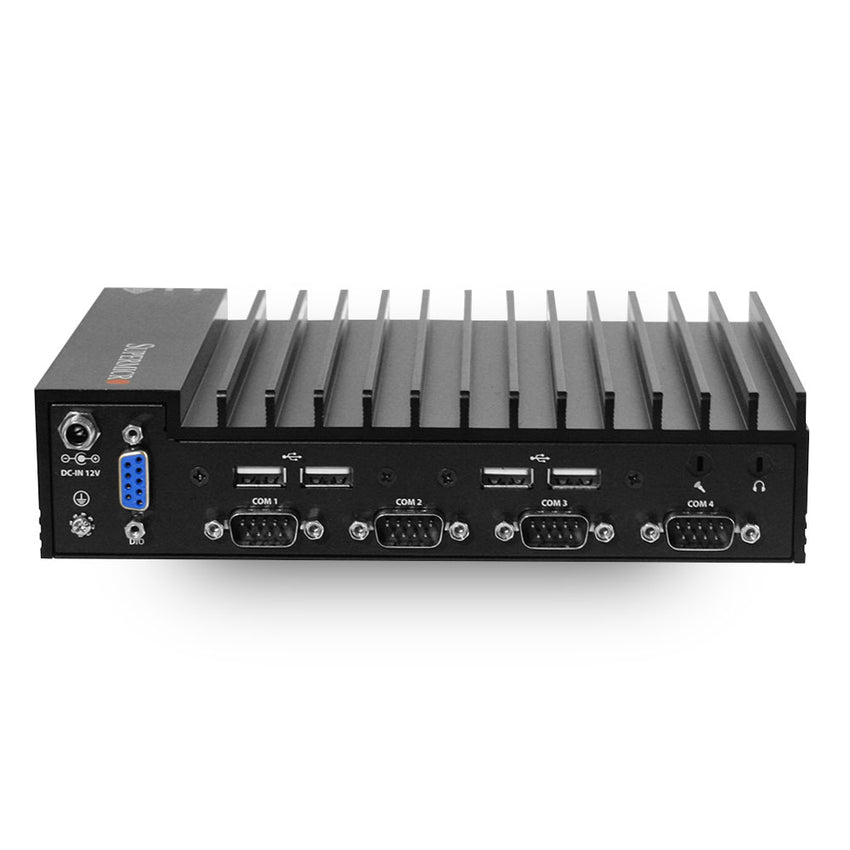

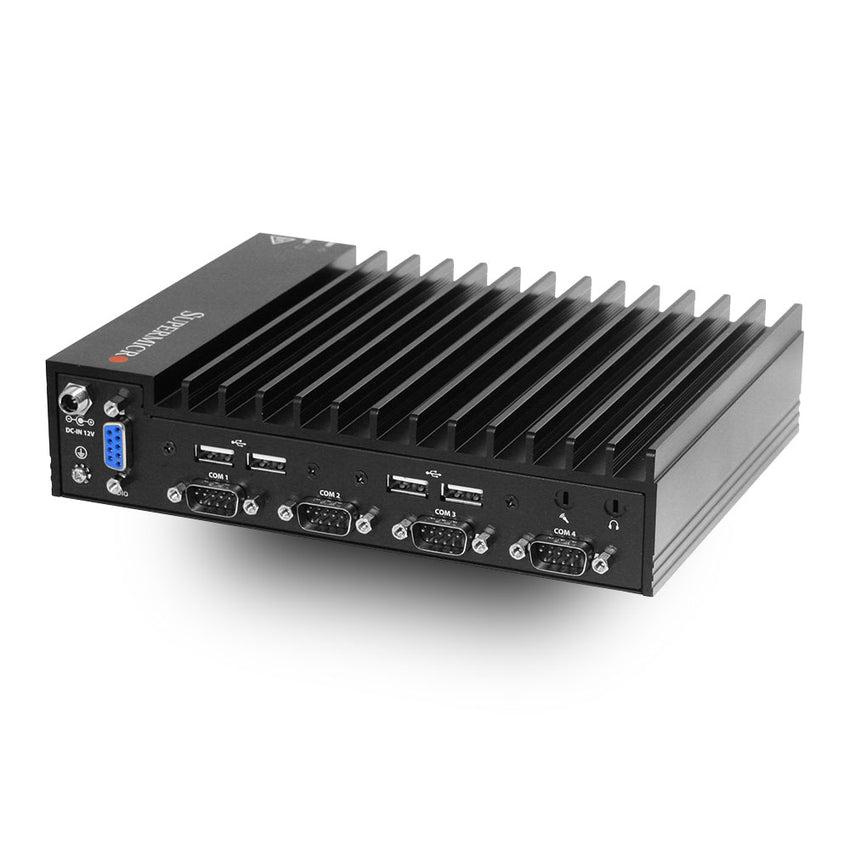

| Rear Panel I/O | 1 x 12-24V DC-IN 1 x GND Connector 1 x DIO via DB9 4 x USB 2.0 2 x COM (RS232) 2 x COM (RS232/422/485, 485 supports auto flow control) |

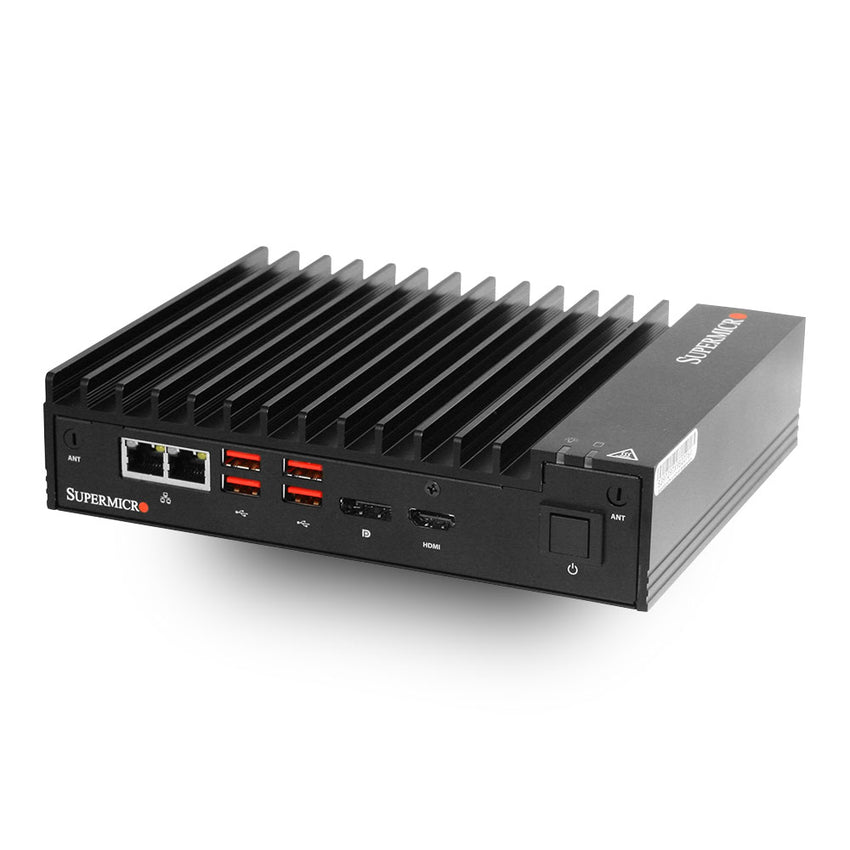

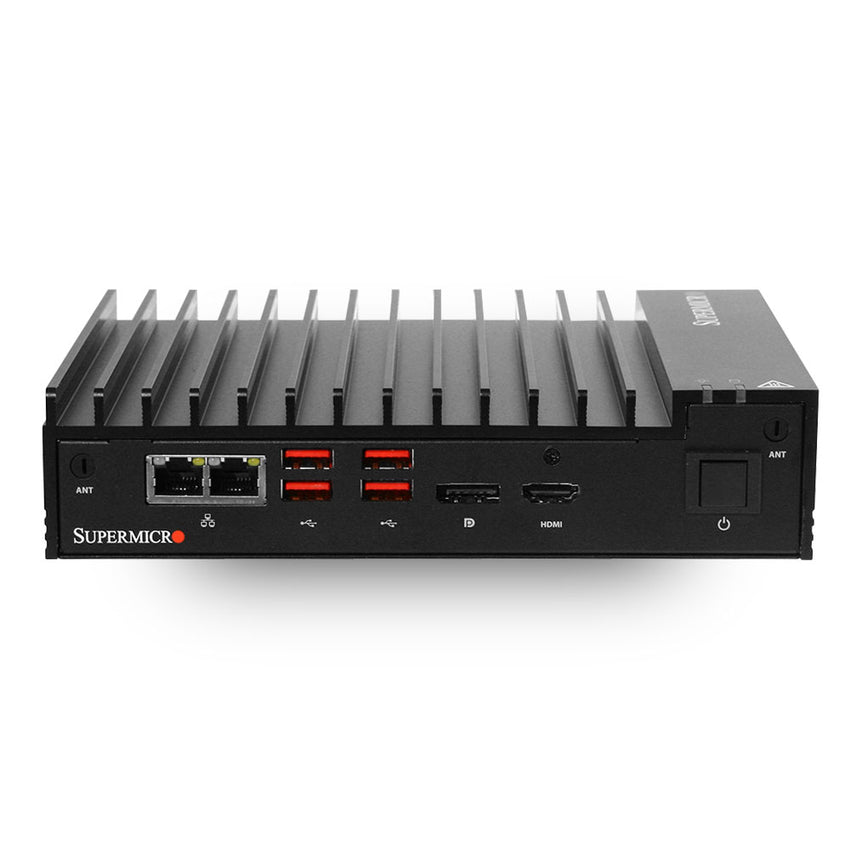

| Front Panel I/O | 2 x RJ45 GbE LAN 4 x USB 3.1 Type-A (Gen2) 1 x DisplayPort 1 x HDMI 1 x Power Button |
| Drive Support | 1 x M.2 2280/2242 slot (SATA or NVMe) 1 x M.2 3042/2242 slot (SATA only) |
| Power Supply | 12-24V DC-IN 60W 12V AC DC Power Adapter |
| Environmental | Operating Temperature: 0°C to 70°C (32°F to 158°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 8% to 90% (non-condensing) Non-Operating Humidity: 10% to 95% (non-condensing) |
| Case Dimensions | 151 x 44 x 195mm 5.94" x 1.73" x 7.68" (in inches) |
| Mounting | Wallmount Brackets |
| Warranty | 1-Year Manufacturer's Limited Warranty |
