| Manufacturer |
Supermicro |
| Product ID |

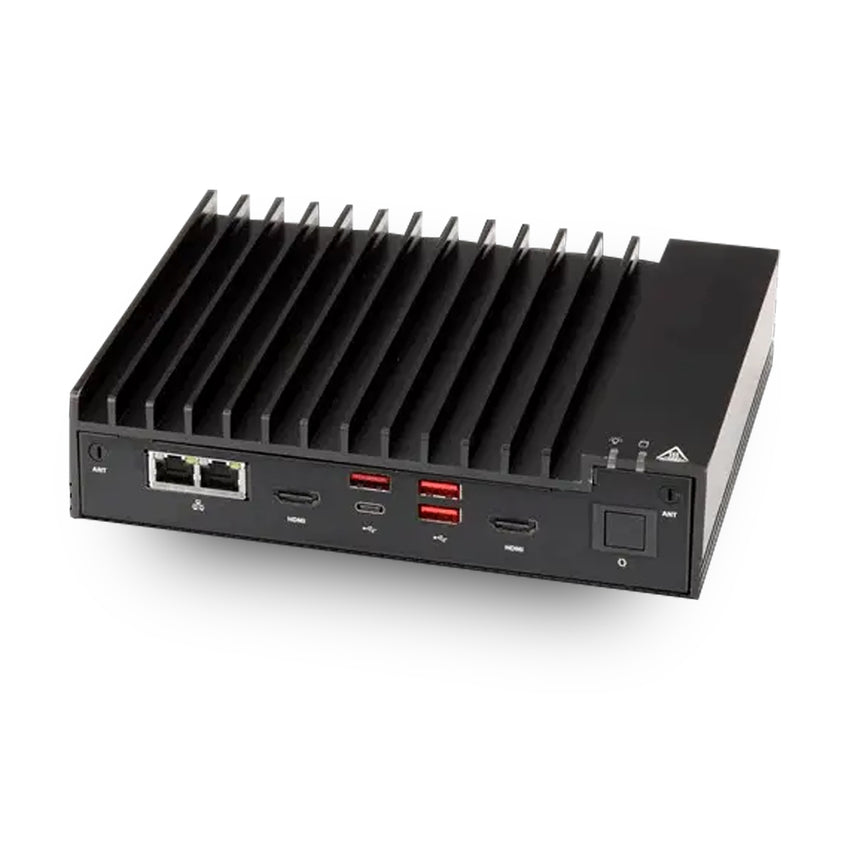

SYS-E100-12T-L |
| CPU |
Intel Core i3-1115GRE
2 Cores / 4 Threads
2.20 - 3.90 GHz
15W TDP, 6MB Intel SmartCache
|
| Chipset |
SoC |
| Memory |
2 x DDR4 SODIMM slots
Maximum 64GB Capacity
Up to 3200 MHz
Non-ECC, Unbuffered Memory Only |
| Video |
Intel UHD Graphics for 11th Gen Intel Processors
1.25 GHz
HDMI 2.0 Max Resolution: 4096x2304@60Hz
HDMI 1.4 Max Resolution: 4096x2160@24Hz
|
| Audio |
ALC 888S HD Audio |
| Storage Technology |
M.2 2242/3042/2280 (B Key) slot: PCIe 3.0 x1, USB3.0/USB2.0, SATA with nano SIM holder
M.2 2242/2280 (M Key) slot: PCI-E 4.0 x4 NVMe Support
|
| Connectivity |
2 x Intel I225-IT 2.5GbE LAN
|
| Expansion Slots |
1 x M.2 2230 (E Key) slot (PCI-E 3.0 x1, USB2, CNVi)
|

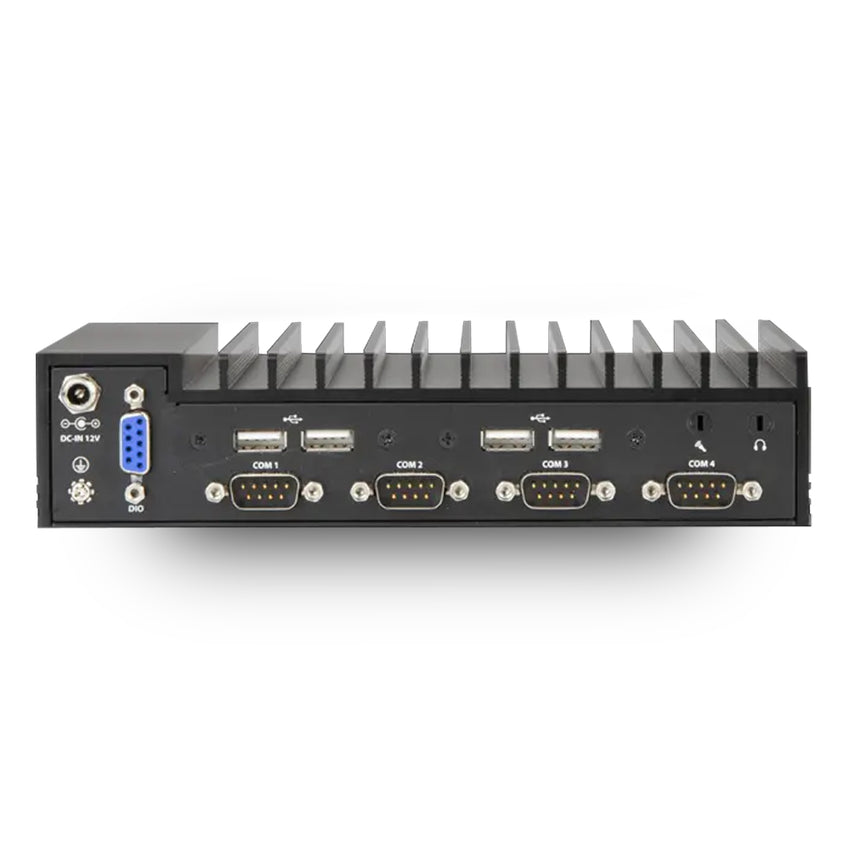

| Rear Panel I/O |
1 x 12V DC-IN
1 x DIO via DB9
4 x USB 2.0
2 x RS232 COM
2 x RS232/422/485 COM Port (RS485 Supports Auto Flow Control) |

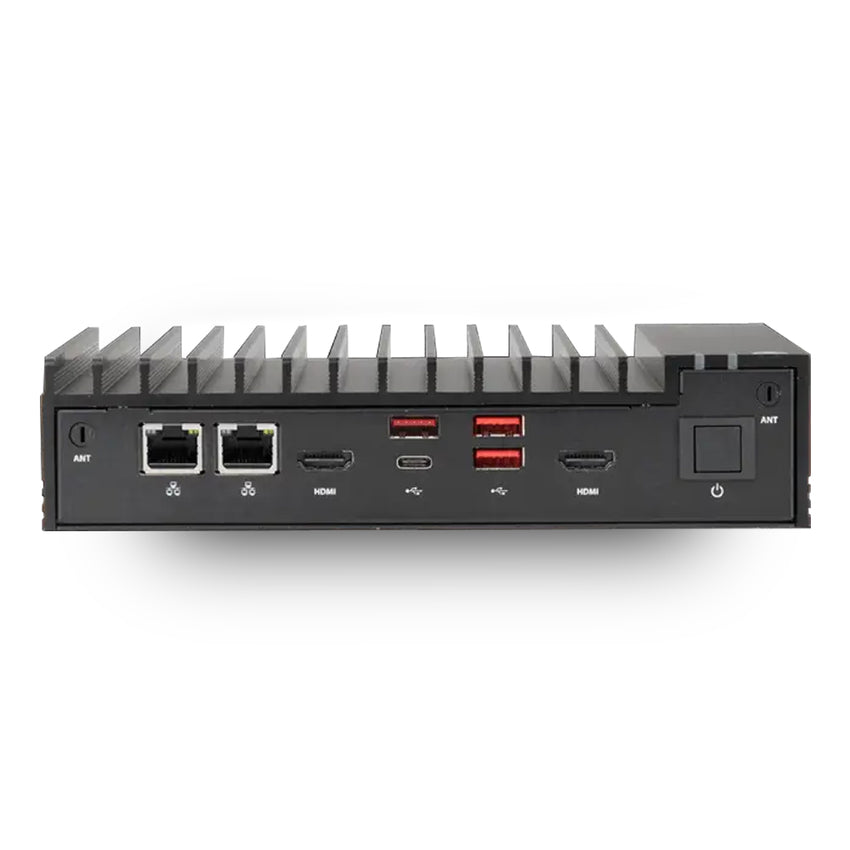

| Front Panel I/O |
2 x RJ45 2.5GbE LAN
1 x HDMI 2.0
3 x USB 3.2 Type-A
1 x USB 3.2 Type-C
1 x HDMI 1.4
1 x Power Button |
| Drive Support |
1 x M.2 2242/2280 slot (M Key, PCI-E x4)
1 x M.2 2242/3042/2280 slot (B Key, SATA, USB3, USB2, PCI-E x1) with Nano SIM Slot |
| Power Supply |
12-24V DC Wide Input
Lockable 84W 12V AC-DC Adapter |
| Case Dimensions |
7.68" x 5.94" x 1.73" (in inches)
195 x 151 x 44mm |
| Environmental |
Operating Temperature: -30°C to 50°C (-22°F to 122°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 8% to 90% (non-condensing)
Non-operating Humidty: 5% to 95% (non-condensing) |
| Compliance |
RoHS
|
| Warranty |
1-Year Warranty on Parts and Labor |
