| Manufacturer | Supermicro |
| Product ID | SYS-741P-TR |

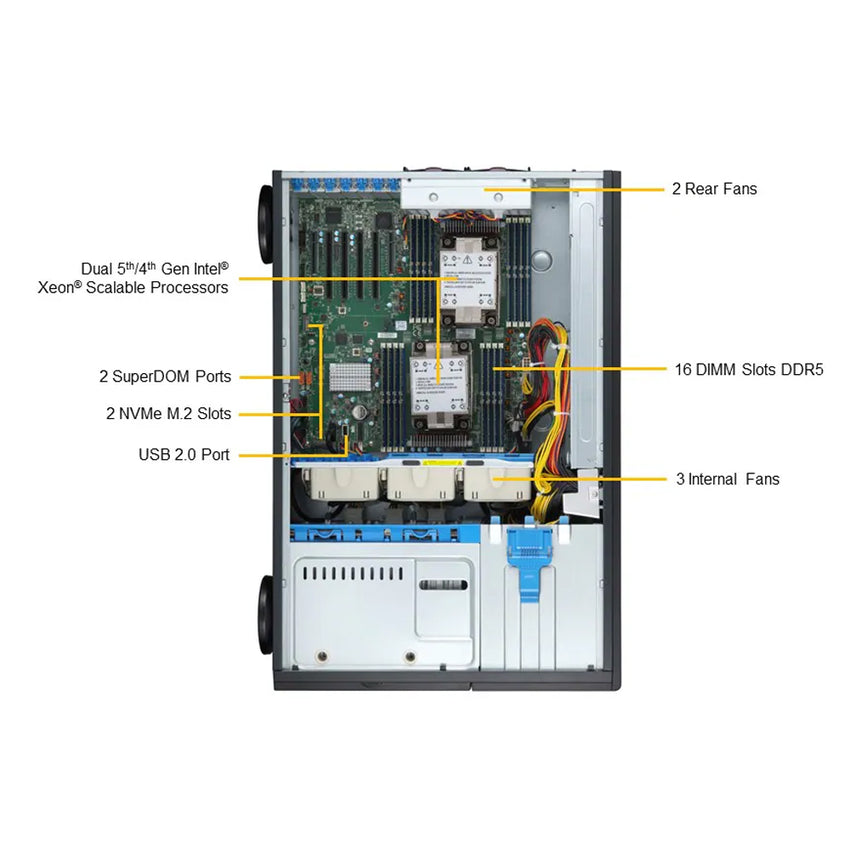

| CPU |
Supports 2 x Intel 5th/4th Gen Xeon Scalable Processors LGA 4677 Supports up to 300W TDP |
| Chipset | Intel C741 |
| Memory |
16 x DDR5 DIMM slots (8 per CPU) 5600 MHz Supports ECC RDIMM |
| Video | Aspeed AST2600 |
| Storage Technology |
2 x SATA Connectors 1 x SlimSAS x8 (Supports 8 SATA) 3 x MCIO (PCI-E 5.0 x8, Supports 6 NVMe) 2 x M.2 2280/22110 slot (PCI-E 4.0 x2) |
| Connectivity |
1 x RJ45 Dedicated IPMI 2 x Broadcom 5720 GbE LAN |
| Expansion |
4 x PCI-E 5.0 x16 slots (Full Height, Full Length) 2 x PCI-E 5.0 x8 slots (Full height, Full Length) |

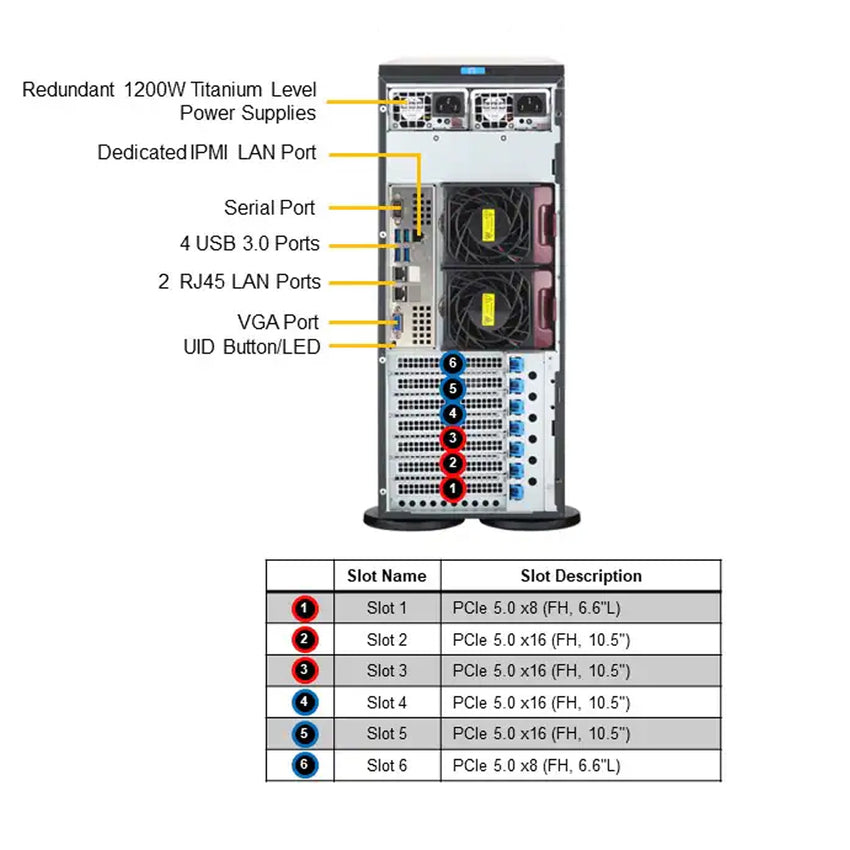

| Rear I/O |
1 x Serial Port 1 x RJ45 Dedicated IPMI 4 x USB 3.0 2 x RJ45 GbE LAN 1 x VGA 1 x UID Button/LED |

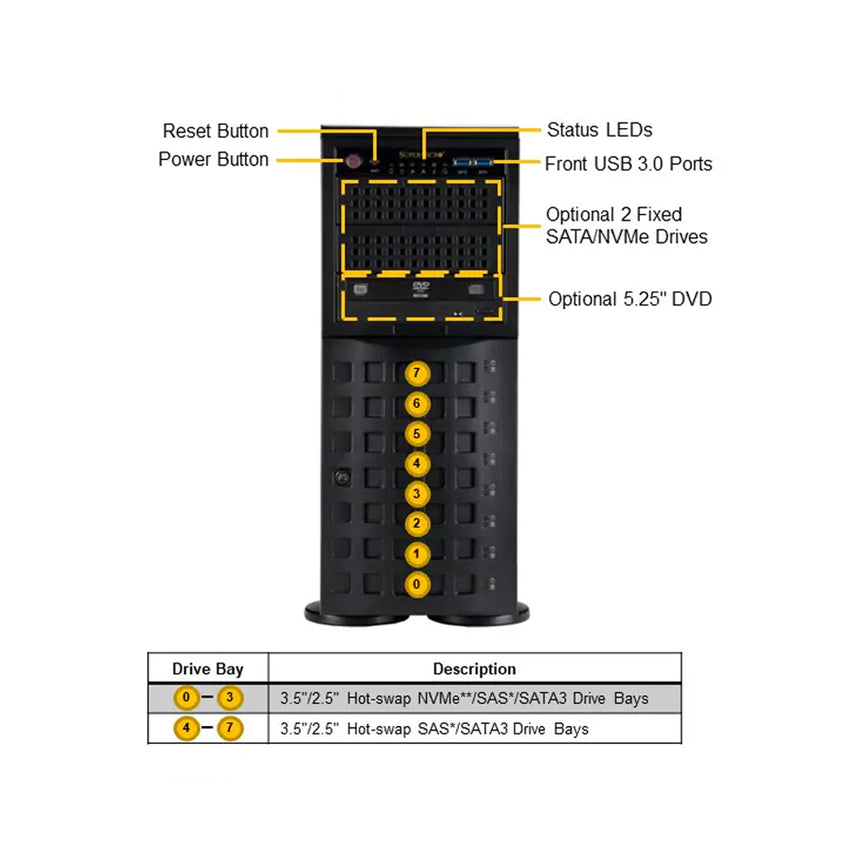

| Front Panel I/O |
1 x Power Button 1 x Reset Button 5 x Status LED (Power, HDD, LAN, System) 2 x USB 3.0 |
| Drive Support |
4 x 3.5"/2.5" NVMe/SATA Hotswap Drive Bays 4 x 3.5"/2.5" SATA Hotswap Drive Bays 2 x M.2 2280/22110 slots (PCI-E 4.0 x2) |
| Power Supply |
1+1 80-PLUS Titanium Redundant Power Supply 100-127Vac: 1000W 200-240Vac: 1200W 200-240Vdc: 1200W (for CCC only) |
| Cooling |
3 x 80x38mm Case Fans 2 x 80x38mm Rear Fans |
| Case Dimensions |
4U Rackmount or Tower 647 x 178 x 452mm 25.5" x 7" x 17.8" (in inches) |
| Environmental |
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) Operating Humidity: 8% to 80%(non-condensing) Non-Operating Humidity: 8% to 90% (non-condensing) |
| Compliance | RoHS Compliant |
| Warranty | 1 Year Manufacturer's Limited Warranty |
PRODUCT ID: SYS-741P-TR
