| Manufacturer | Supermicro |
| Product ID | SYS-511R-ML |
| CPU | Supports Intel Xeon 6300/E-2400 Series Processor Socket LGA 1700 Supports up to 95W TDP (Air Cooled) |
| Chipset | Intel C266 |
| Memory | 4 x DDR5 DIMM slots Supports ECC UDIMM Only Dual Channel |
| Video | Aspeed AST2600 |
| Storage Technology | SlimSAS for 8 x SATA (Supports RAID 0/1/5/10) 2 x M.2 22110/2280 slots (PCI-E 4.0 x4) |
| Connectivity | 2 x Intel I210 GbE LAN 1 x Realtek RTL8211F-CG GbE LAN (Dedicated IPMI) |
| Expansion | 1 x PCI-E 5.0 x16 slot (Full Height, Half Length) |

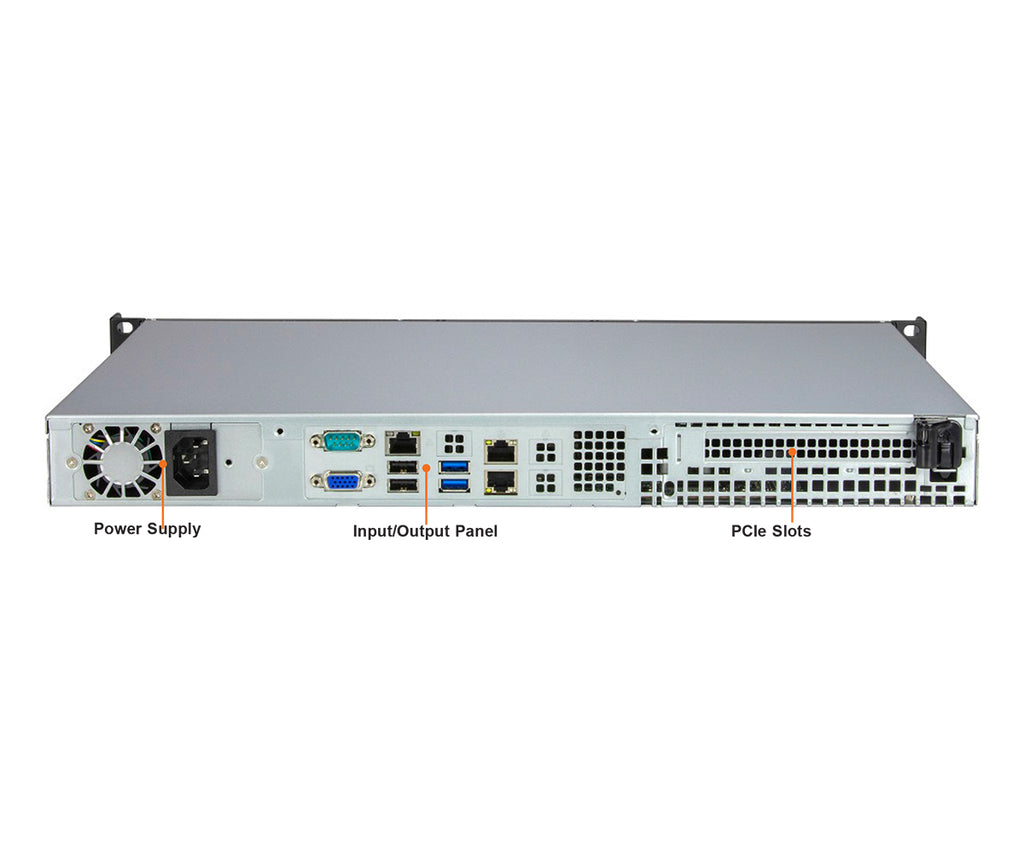

| Rear I/O | 1 x COM 1 x VGA 1 x RJ45 GbE LAN Dedicated IPMI 2 x USB 2.0 2 x USB 3.2 (Gen1) 2 x RJ45 GbE LAN |

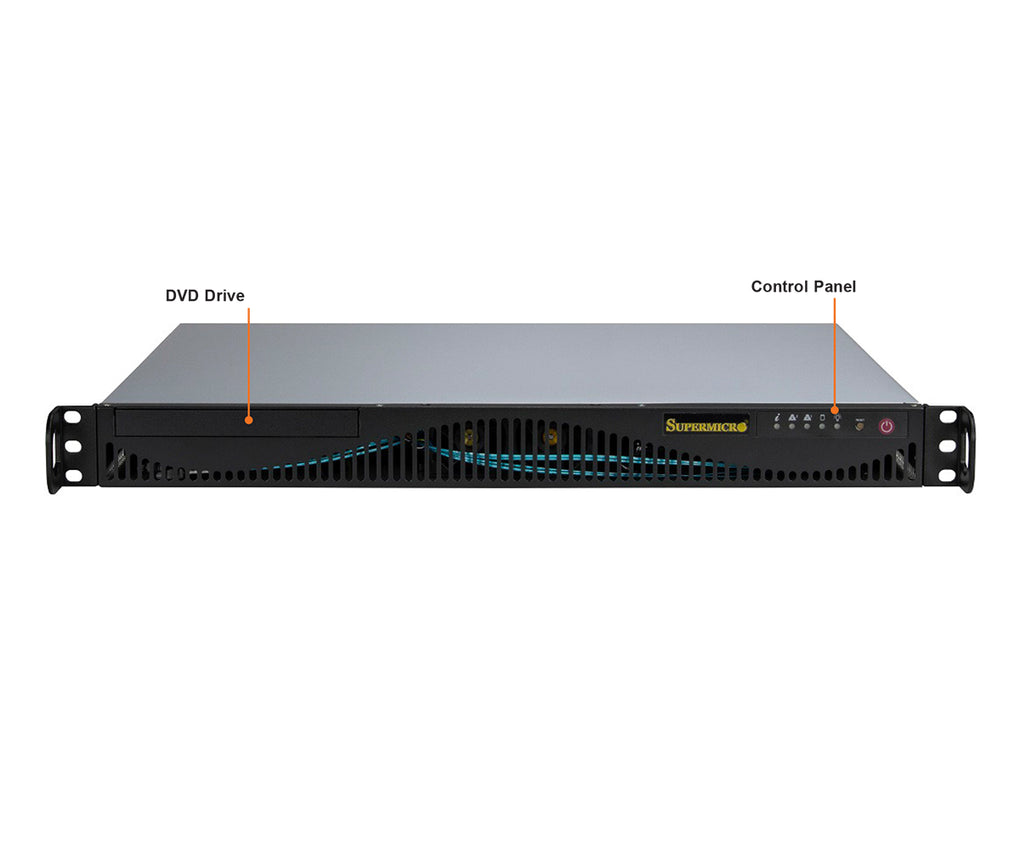

| Front Panel I/O | 5 x Status LED (Information, LAN, HDD, Power) 1 x Reset Button 1 x Power Button |
| Drive Support | 2 x M.2 2280/22110 slots (PCI-E 4.0 x4) 2 x 3.5" SATA Drive Bays or 3 x 2.5" Drive Bays Note: 2 x 2.5" requires additional brackets |
| Power Supply | 350W 80+ Platinum Power Supply 100-240Vac / 50-60Hz |
| Cooling | 2 x 40x56mm Fans |
| Case Dimensions | 1U Rackmount 14.5" x 17.2" x 1.7" (in inches) 368 x 437 x 43mm |
| Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Humidity: 8% to 80%C (non-condensing) Non-Operating Humidity: 8% to 90% (non-condensing) |
| Warranty | 1 Year Manufacturer's Limited Warranty |
PRODUCT ID: SYS-511R-ML
