| Manufacturer | Supermicro |

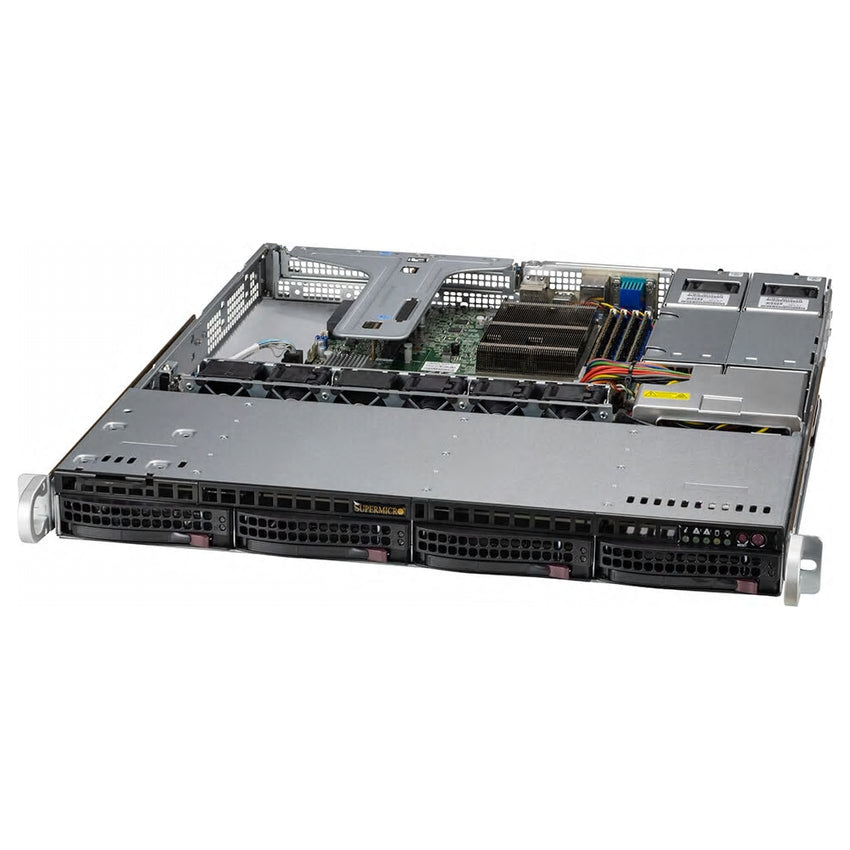

| Product ID | SYS-510T-MR |
| CPU | Supports Intel Xeon E-2300 Series Processors Supports Intel 10th Gen Pentium Processors LGA1200 Supports up to 95W TDP |
| Chipset | Intel C256 |
| Memory | 4 x DDR4 DIMM Slots Supports up to 128GB ECC UDIMM 3200/2933/2666MHz |
| Video | ASPEED AST2600 BMC |
| Storage Technology | 8 x SATA3 6Gb/s Ports Supports RAID 0, 1, 5, 10 1 x M.2 22110/2280 slot: PCI-E 3.0 x4 Backplane supports SAS3: Requires add-on card |
| Connectivity | 2 x Intel i210 GbE LAN 1 x Realtek RTL8211F-CG Dedicated IPMI |
| Expansion | 1 x PCI-E 4.0 x16 or x8 slot (Full Height, Half Length) 1 x PCI-E 4.0 x0 or x8 slot (Low Profile, shared with PCI-E slot 1) 1 x PCI-E 3.0 x8 Dedicated Internal HBA slot Note: Pentium CPUs provide PCI-E 3.0 speeds only |
| Rear I/O | 1 x Serial Port 1 x VGA 1 x RJ45 Dedicated IPMI 2 x USB 2.0 2 x USB 3.2 (Gen1) 2 x RJ45 GbE LAN |
| Front Panel I/O | 5 x Status LED (Power, HDD, LAN, Information) 1 x Reset Button 1 x Power Button |
| Drive Support | 4 x 3.5" SATA Hotswap Drive Bays Note: 2.5" Support Requires Converter Drive Tray 1 x M.2 22110/2280 slot (PCI-E 3.0 x4, M Key) |
| Power Supply | 1+1 Redundant 400W 80-PLUS Platinum Power Supply AC Input: 100-240Vac / 3A-6A / 50-60Hz |
| Cooling | Includes 4 x 40x28mm PWM Fans Supports 6 x 40x28mm Case Fans |
| Case Dimensions | 1U Form Factor 19.98" x 17.2" x 1.7" (in inches) 507 x 437 x 43mm Net Weight: 17.6 lbs (8 kg) Gross Weight: 30.4 lbs (13.8 kg) |
| Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-Operating Humidity: 5% to 95% (non-condensing) |
| Warranty | 1 Year Manufacturer's Limited Warranty |
PRODUCT ID: SYS-510T-MR
