Manufacturer	Supermicro

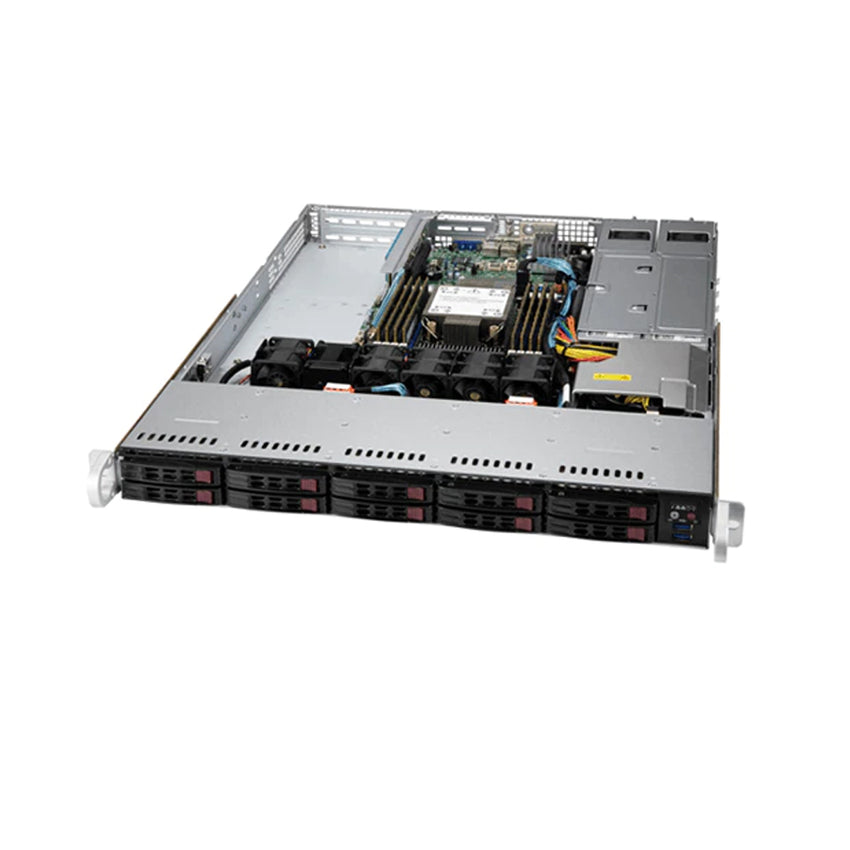

Product ID	SYS-110P-WTR
CPU	Supports Intel 3rd Gen Xeon Scalable Processors Ice Lake Socket P+ (LGA 4189) Support CPU TDP 270W
Chipset	Intel C621A
Memory	8 x DDR4 DIMM Slots Up to 2TB ECC RDIMM/LRDIMM 3200/2933/2666 MHz Supports Intel Optane Persistent Memory 200 Series
Video	ASPEED AST2600 BMC
Storage Technology	10 x SATA3 6Gbps Ports Supports SoC RAID 0, 1, 5, 10 M.2: PCI-E 3.0 x4 and SATA
Connectivity	2 x Intel X550 10GBase-T LAN 1 x Realtek RTL8211FS-VS-CG Dedicated IPMI
Expansion	2 x PCI-E 4.0 x16 (Full Height, Full Length) 1 x PCI-E 4.0 x16 (Low Profile)
Rear I/O	1 x Serial Port 1 x RJ45 Dedicated IPMI 2 x USB 2.0 2 x USB 3.2 (Gen1) 2 x RJ45 10GbE LAN 1 x VGA
Front Panel I/O	1 x Power Button 1 x Reset Button 5 x Status LED (Power, HDD, LAN, BMC) 2 x USB 3.2 (Gen1)
Drive Support	10 x 2.5" Hotswap SATA Drive Bays (Supports 4 x NVMe) 1 x M.2 22110/2280 slot (PCI-E 4.0 x4 or SATA)
Power Supply	Redundant 750W 80 PLUS Titanium Power Supply 100-140V, 200-240V 50-60Hz
Cooling	Includes 5 x 40x56mm Case Fans Supports 6 x 40x56mm Cooling Fans
Case Dimensions	1U Rackmount 23.5" x 17.2" x 1.7" (in inches) 597 x 437 x 43mm
Environmental	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 8% to 90% (non-condensing) Non-Operating Humidity: 5% to 95% (non-condensing)
Warranty	1 Year Manufacturer's Limited Warranty
