| Manufacturer | Supermicro |
| Product ID | SYS-1019C-FHTN8 |
| CPU | Supports Intel Xeon E-2100 Processors Supports Intel 8th Core i3 Processors LGA 1151 Supports up to 80W TDP |
| Chipset | Intel C246 |
| Memory | 4 x DDR4 DIMM slots Supports ECC UDIMM Supports up to 128 GB Capacity Supports up to 2666 MHz |
| Video | Aspeed AST2500 BMC |
| Storage Technology | 5 x SATA3 6Gb/s Ports 1 x M.2: SATA/PCI-E 3.0 x4 1 x M.2: PCI-E 3.0 x4 |
| Connectivity | 1 x Realtek RTL8211F-CG Dedicated IPMI 8 x Intel I210-AT GbE LAN |
| Expansion | 1 x PCI-E 3.0 x16 slot (Full Height, Full Length) |

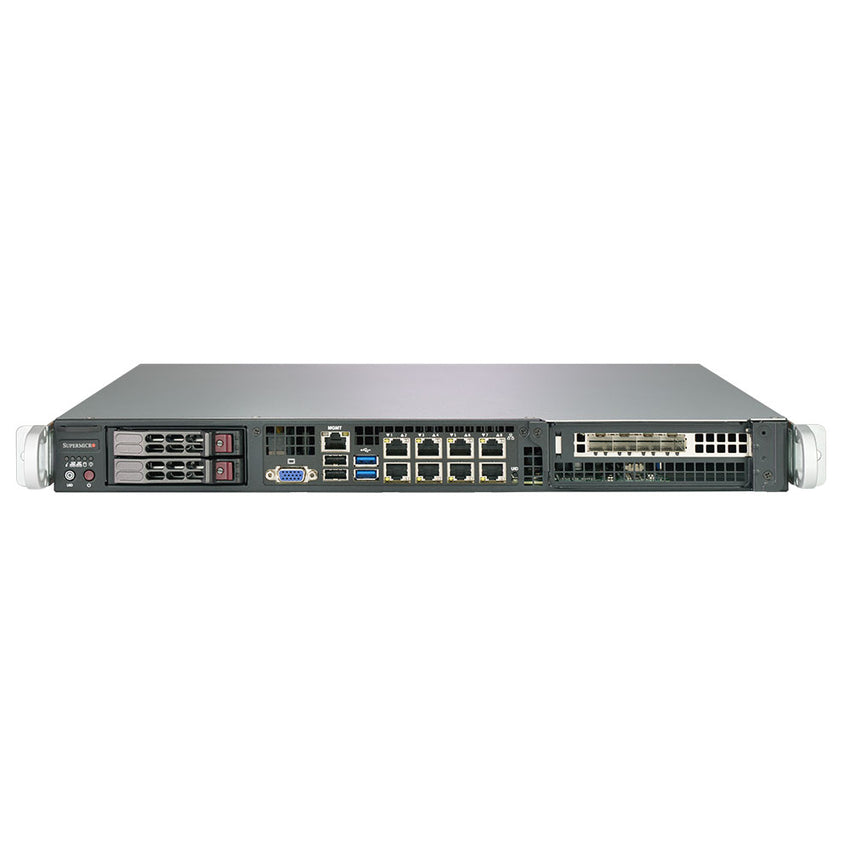

| Front Panel I/O | 5 x Status LED (Power, HDD, LAN, System) 1 x Reset Button 1 x Power Button 1 x VGA 1 x RJ45 Dedicated IPMI 2 x USB 2.0 2 x USB 3.0 8 x RJ45 GbE LAN |
| Drive Support | 1 x M.2 slot (2280/22110, SATA/PCI-E 3.0 x4) 1 x M.2 slot (2280/22110, PCI-E 3.0 x4) 2 x 2.5" Hot Swap Drive Bays 2 x 2.5" Internal Drive Bays |
| Power Supply | 350W 80 PLUS Platinum Power Supply with PFC 100-240Vac, 50-60Hz, 4.2-1.8 Amp |
| Case Dimensions | 1U Form Factor 381 x 437 x 43mm 15.0" x 17.2" x 1.7" (in inches) |
| Environmental | Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 8% to 90% (non-condensing) Non-operating Humidity: 5% to 95% (non-condensing) |
| Cooling | 4 x 40x28mm Case Fans Supports Up to 6 x 40x28mm Case Fans |
| Compliance | RoHS |
| Warranty | 1 Year Manufacturer's Limited Warranty on Parts 3 Year Manufactuere's Limited Warranty on Labor |
PRODUCT ID: SYS-1019C-FHTN8
