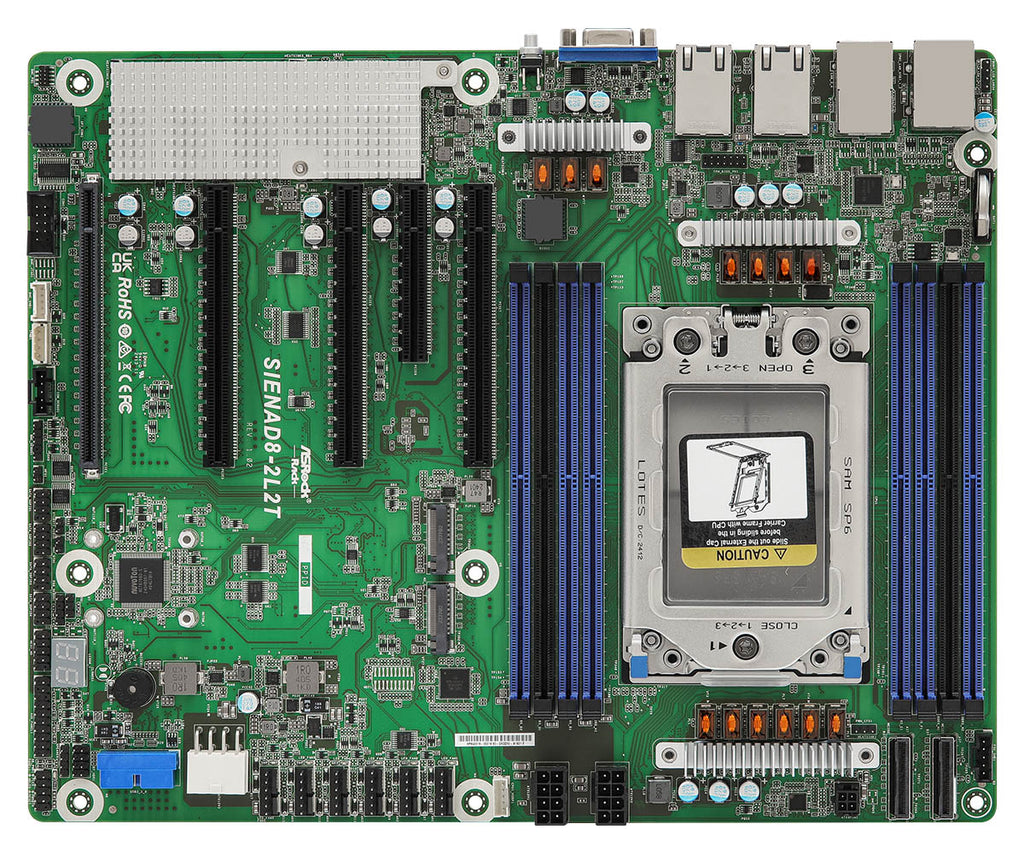

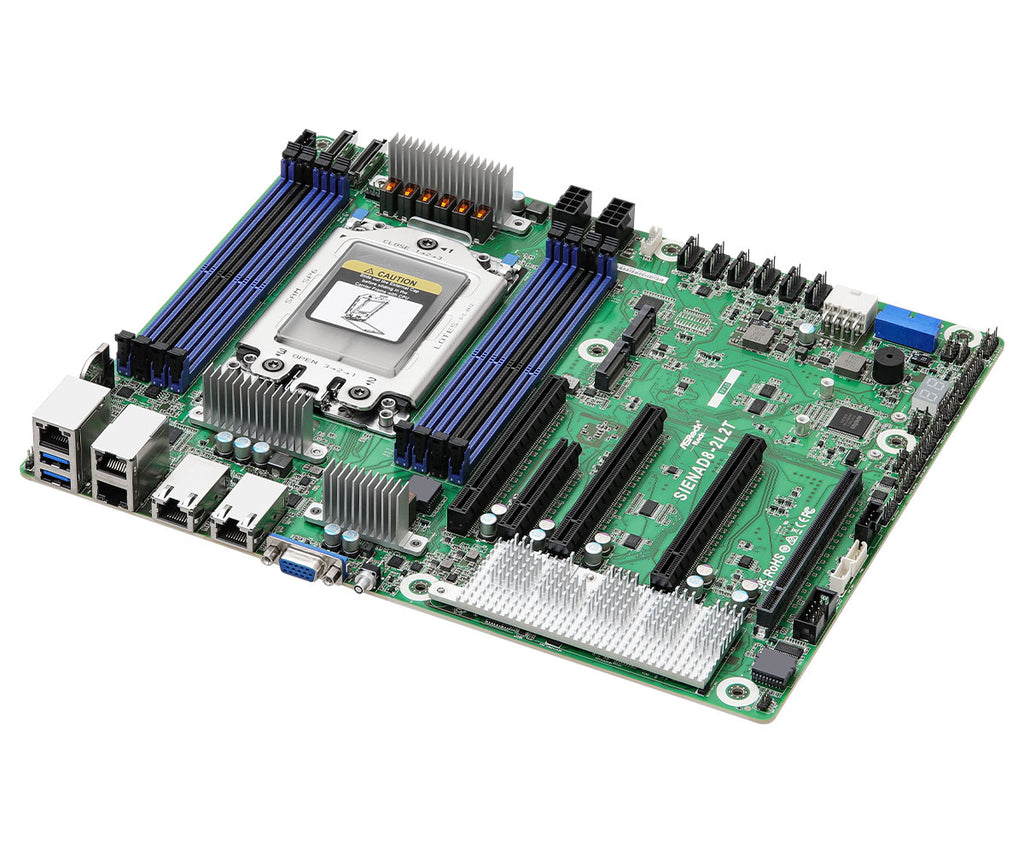

Manufacturer	ASRock Rack
Part Number	SIENAD8-2L2T
CPU	Supports AMD EPYC 8004 Series Processors Socket SP6
Chipset	SoC
Memory	8 x DDR5 DIMM slots ECC RDIMM Maximum 96GB Capacity per DIMM slot 4800 MHz
Video	ASPEED AST2600
Storage Technology	2 x MCIO (PCI-E 5.0 x8) 2 x M.2 22110/2280 slots (PCI-E 5.0 x4)
Connectivity	2 x Intel X710-AT2 10G LAN 2 x Intel I210 GbE LAN 1 x Realtek RTL8211F Dedicated Management LAN
Expansion Slots	3 x PCI-E 5.0 / CXL1.1 x 16 slots 1 x PCI-E 5.0 x16 slot 1 x PCI-E 5.0 x8 slot
Power	1 x 4-Pin ATX PSU signal with ATX 24-pin Adapter Cable 2 x 8-pin ATX 12V Connectors

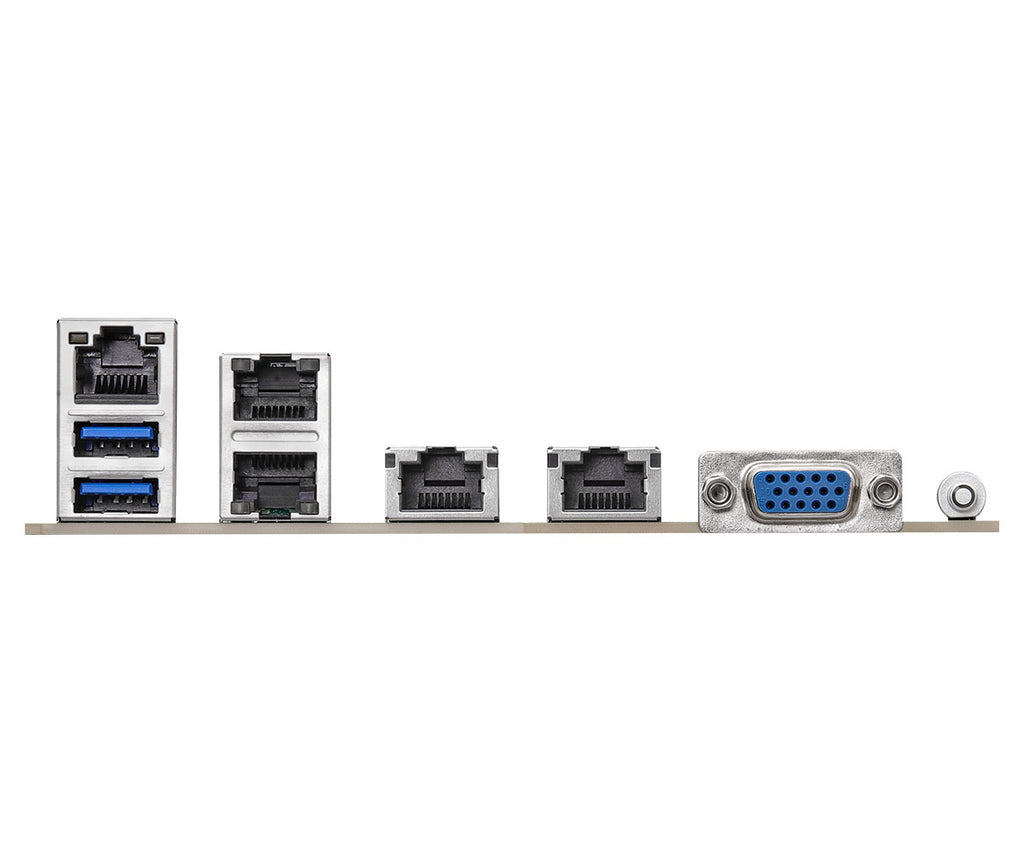

Rear I/O	1 x RJ45 GbE Dedicated Management LAN 2 x USB 3.2 (Gen1) 2 x RJ45 GbE LAN 2 x RJ45 10G LAN 1 x VGA 1 x UID Button with LED
Onboard I/O Headers	1 x 18-pin header (Chassis Intrusion, System Fault LED, LAN LED, Locate, SMBus 1 x 9-pin System Panel header (Power Switch, Reset Switch, System Power LED, HDD LED) 1 x COM header 1 x 4-pin Speaker header 1 x Buzzer 6 x 6-pin Fan header 1 x Thermal Sensor header 1 x TPM SPI header (13-pin) 1 x SMBus header 1 x PMBus header 1 x IPMB header 1 x Clear CMOS (contact pads) 1 x 9-pin NCSI header 1 x USB 3.2 (Gen1) header (Supports 2 ports) 1 x NMI header
Form Factor	ATX 12" x 9.6" (in inches)
Environmental	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F) Storage Humidity: 20% to 90% (non condensing)
Warranty	1-Year Manufacturer's Limited Warranty
