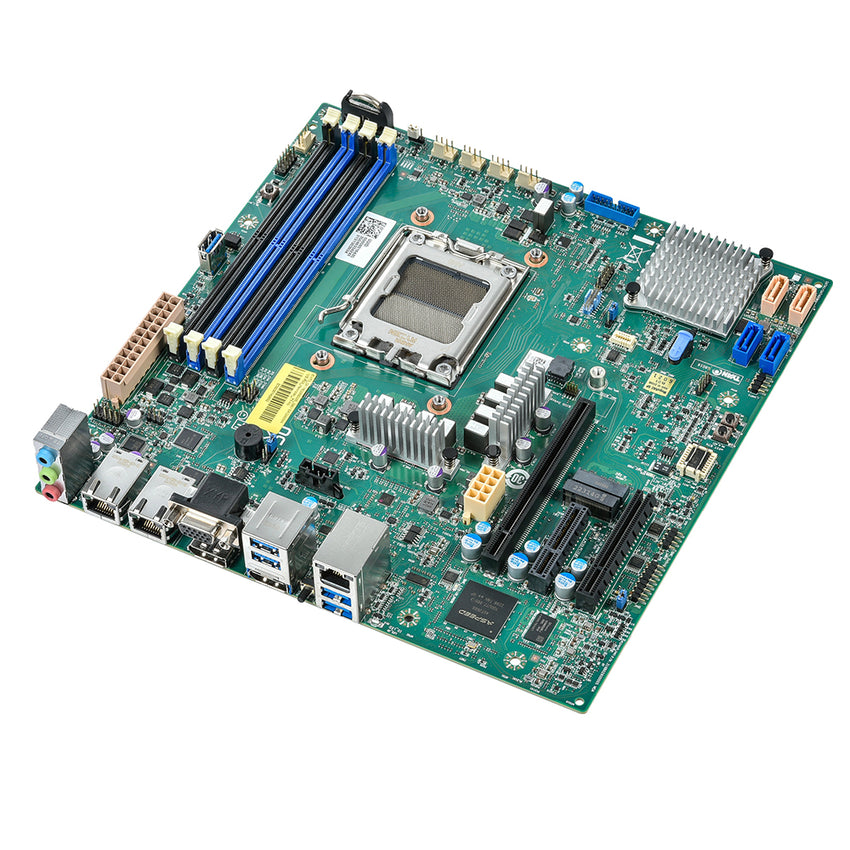

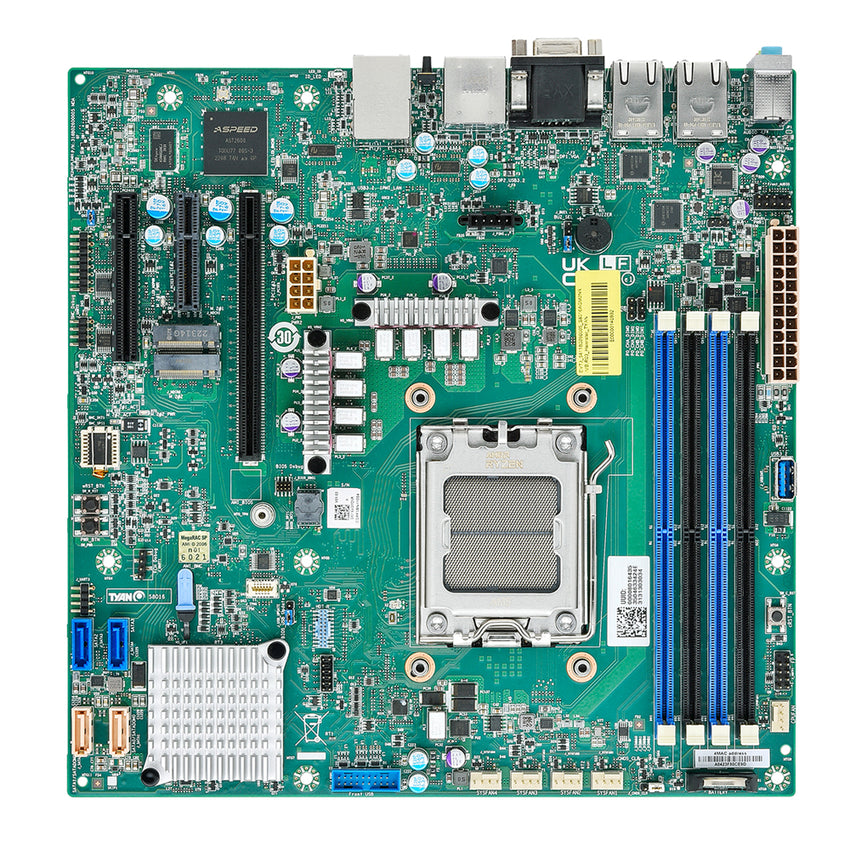

Manufacturer | Tyan |
Part Number | S8016AGM2NR |
Model Name | S8016 |
CPU |
Supports AMD Ryzen 7000 Processor Supports AMD EPYC 4004 Processor Socket AM5 Max up to 170W (TDP) |
Chipset | AMD B650 FCH |
Memory |
4 x DDR5 DIMM slot ECC/Non-ECC UDIMM 4800 MHz Maximum 192GB Capacity 2 Channels |
Video |
ASPEED AST2600 DisplayPort Max Resolution: 4096x2304@60Hz |
Storage Technology |
4 x SATA Connectors Supports AMD RAID 0/1/10 2 x M.2 2280 slots (PCI-E 4.0 x2) |
Connectivity |
2 x Intel I210 GbE LAN 1 x Realtek RTL8211F GbE Dedicated IPMI |
Expansion Slots |
1 x PCI-E 5.0 x16 slot 1 x PCI-E 4.0 x8 slot 1 x PCI-E 4.0 x4 slot |
Power |
1 x 24-Pin ATX Power Connector 1 x 8-Pin 12V Power Connector |

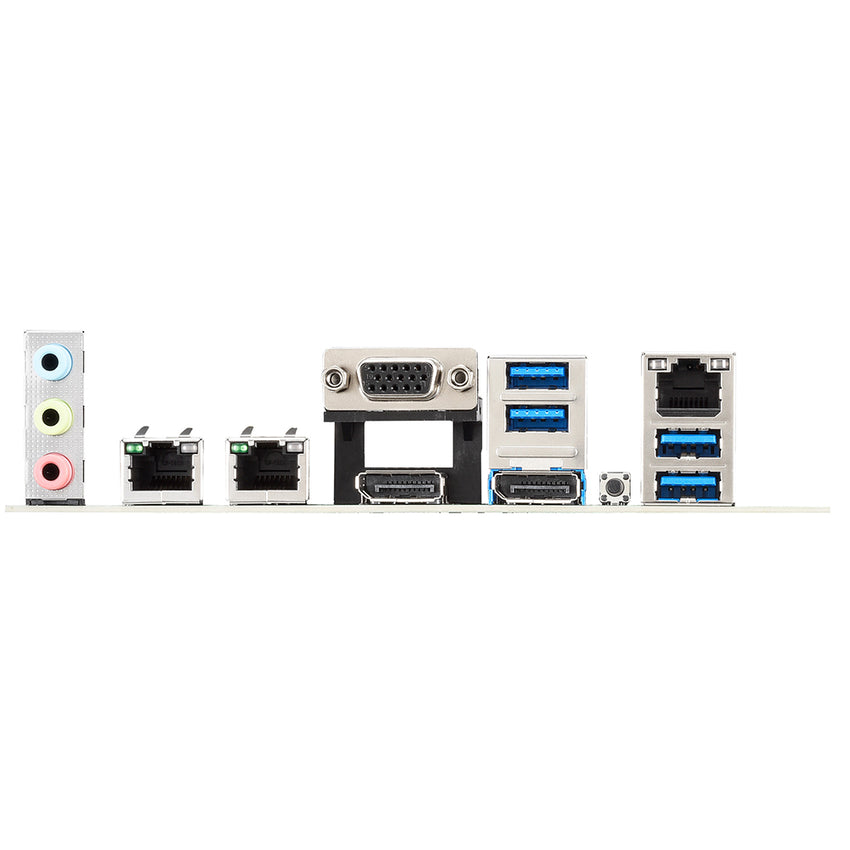

Rear I/O |
3 x Audio I/O 2 x RJ45 GbE LAN 1 x VGA 2 x DisplayPort 4 x USB 3.2 (Gen1) 1 x ID Button 1 x RJ45 GbE Dedicated IPMI |
Onboard I/O Headers |
1 x USB 3.2 (Gen1) Type-A 1 x USB 3.2 (Gen1) header 1 x PSMI connector 1 x TPM connector 1 x Chassis Intrusion header 1 x Front Audio header |
Form Factor |
Micro ATX 9.6" x 9.6" (in inches) 243.8 x 243.8mm |
Environmental |
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 90% at 35°C (non condensing) Storage Humidity: 90% at 35°C (non condensing) |
Compliance |
FCC (SDoC) Class A CE (DoC) Class A RoHS 6/6 Compliant |
Warranty | 1-Year Manufacturer's Limited Warranty |
