| Manufacturer |
Dynatron |
| Model Number |
S6-4710 |
| CPU Support |
Intel Socket FCLGA 4710 Intel Granite Rapids-SP / Xeon 6 Processors Supports up to 510W TDP (@ 38°C ambient) |
| Application |
3U Server and Up, Workstations |
| Material |

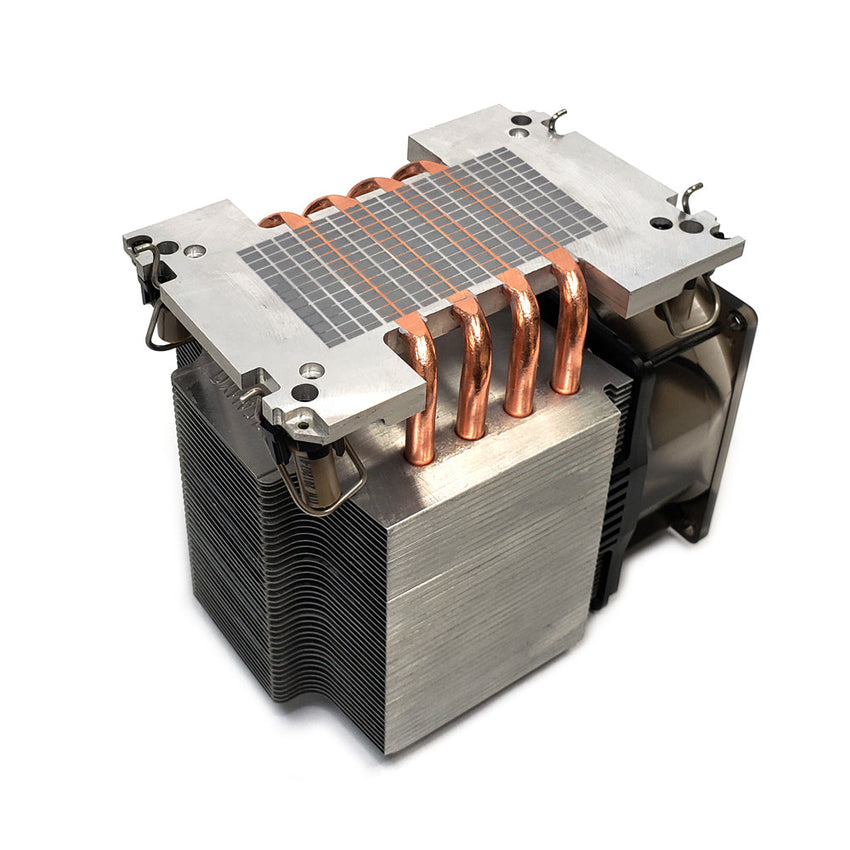

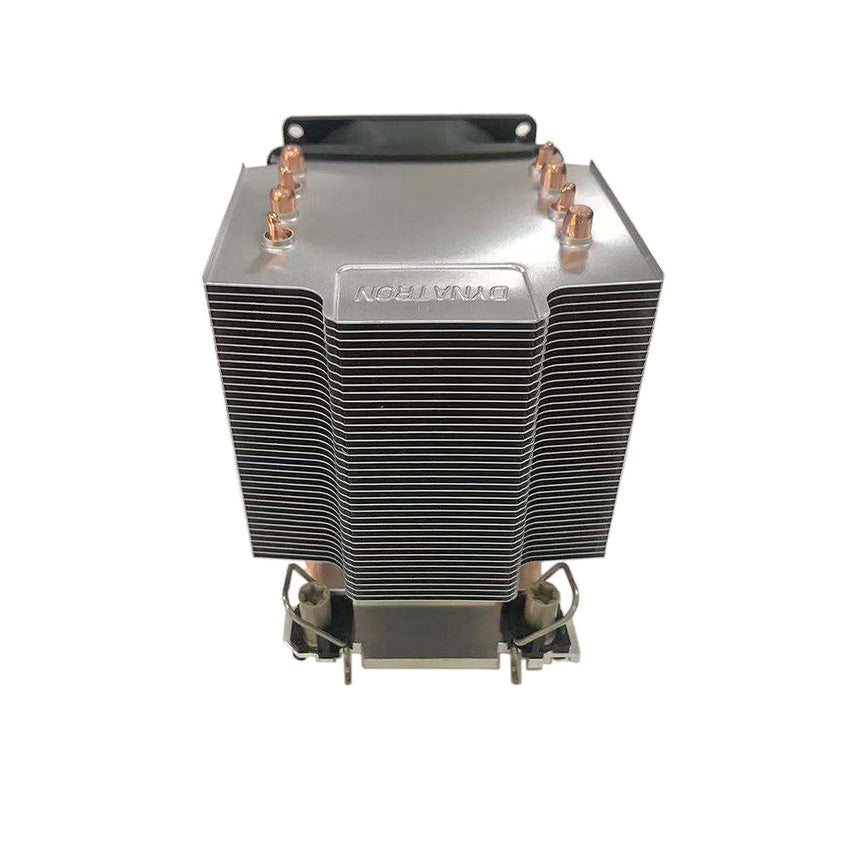

Aluminum Stacked Fins with Heat Pipes Directly Contacting CPU |

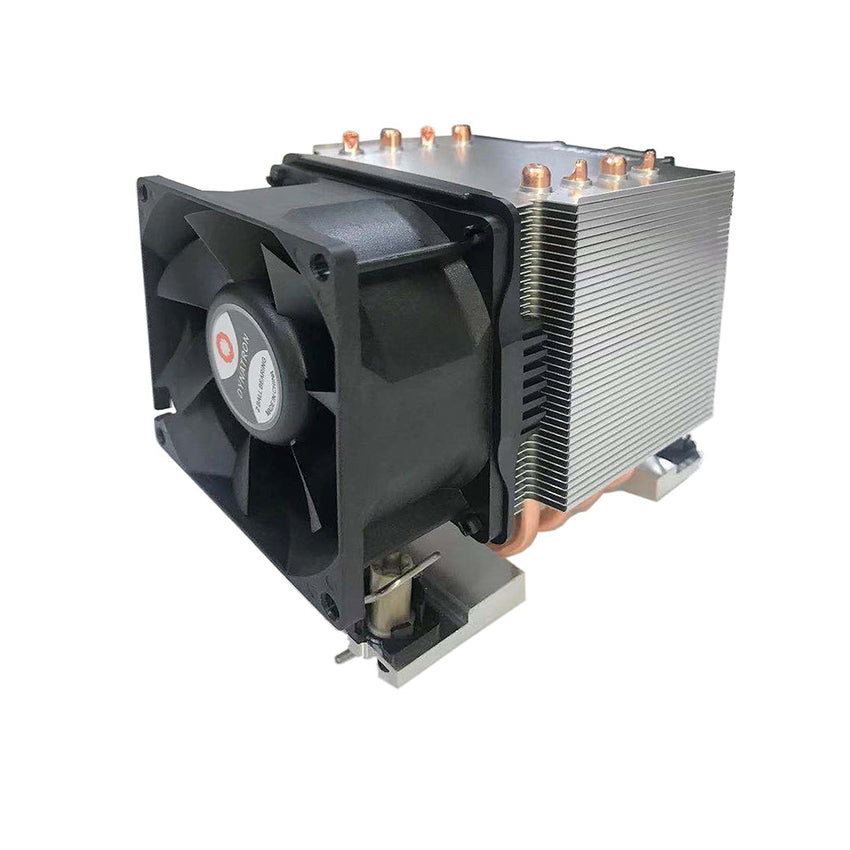

| Fan Dimensions |
80 x 80 x 38mm 3.15" x 3.15" x 1.5" (in inches) |
| Connection |
4 Pin (PWM) |
| Voltage |
12V |
| Bearing |
Double Ball |
| Speed |
At Duty Cycle 20%: 1300 RPM At Duty Cycle 50%: 2450 RPM At Duty Cycle 100%: 4500 RPM |
| Performance |
At Duty Cycle 20%: 22.23 CFM At Duty Cycle 50%: 41.90 CFM At Duty Cycle 100%: 76.95 CFM |
| Volume |
At Duty Cycle 20%: 23.95 dBA At Duty Cycle 50%: 37.71 dBA At Duty Cycle 100%: 50.91 dBA |
| Fan Power |
At Duty Cycle 20%: 1.20 W At Duty Cycle 50%: 2.64 W At Duty Cycle 100%: 9.00 W |
| Fan Life |
70,000 Hours (continuous operation at 40°C / 104°F) |

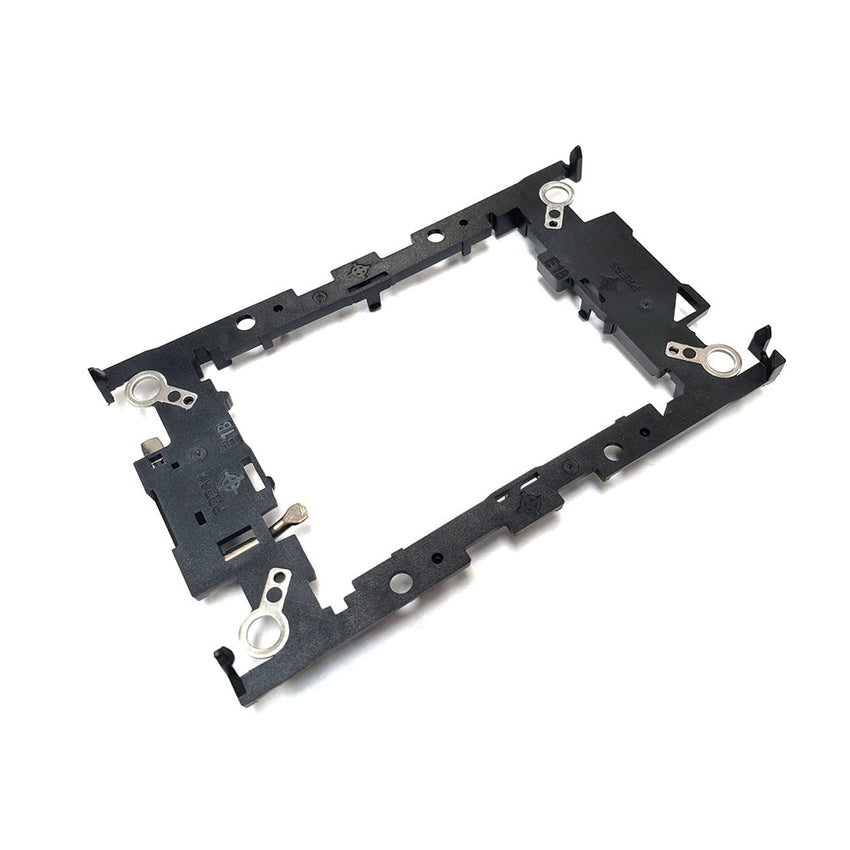

| Mounting |
Screw Type: #8-32 Installation Torque: 8 in-lb |
| Dimensions |
128 x 91 x 110mm 5.04" x 3.58" x 4.33" (in inches) |
| Weight |
659.3g |
| Thermal Grease |
Shin-Etsu X23-8079-2 |
