Manufacturer	Mitac
Part Number	S5652AGM3NRE-2T
CPU	Supports Intel 5th/4th Gen Xeon Scalable Processors, Emerald Rapids Socket LGA 4677 Maximum 350W TDP
Chipset	Intel C741
Memory	8 x DDR5 DIMM slots 5600/4800/4400 MT/s Maximum 1024GB RDIMM Maximum 2048GB 3DS RDIMM 8 Channel
Video	ASPEED AST2600
Audio	Realtek ALC888S 2.1 Channel
Storage Technology	2 x SATA Connectors 1 x MiniSAS HD Connector (Supports 4 x SATA) Supports RAID 0/1/10/5 (Intel RSTe) 1 x MCIO x8 Connector 1 x M.2 2280 slot (PCI-E 4.0 x4)
Connectivity	2 x Intel X550 10G LAN 1 x Intel I210 GbE LAN 1 x Realtek RTL8211F GbE Dedicated Management LAN
Expansion Slots	4 x PCI-E 5.0 x16 slots 1 x PCI-E 5.0 x8 slot
Power	1 x 24-Pin ATX Power Connector 2 x 8-Pin ATX Power Connector 1 x 4-Pin ATX Power Connector

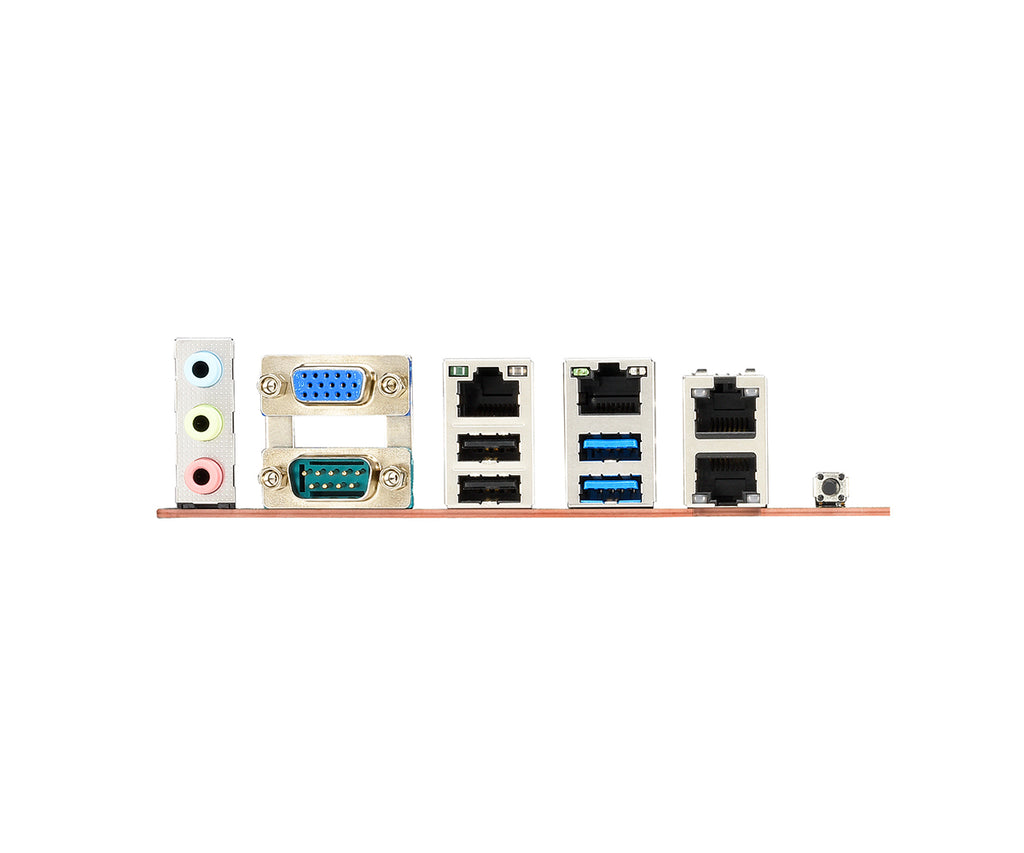

Rear I/O	3 x Audio I/O 1 x VGA 1 x COM 1 x RJ45 GbE Dedicated IPMI 2 x USB 2.0 1 x RJ45 GbE LAN 2 x USB 3.2 (Gen1) 2 x RJ45 10G LAN 1 x UID Button
Onboard I/O Headers	1 x USB 2.0 Type-A Vertical Port 1 x USB 3.2 (Gen1) header 1 x COM header 1 x 2x12-Pin SSI Front Panel header (mini type) 1 x 2x5-pin header 1 x TPM SPI header 6 x 4-pin Fan headers
OS Support	Windows 10, Windows 11 (TPM Required) Windows Server 2022, Windows Server 2025 RHEL 9.5, RHEL 9.1 Ubuntu 22.04.1, Ubuntu 20.04.5 CentOS 7.9 x86, CentOS Stream 8, CentOS Stream 9
Form Factor	SSI CEB 12" x 10.5" 305 x 267mm
Environmental	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 90% (non condensing) Storage Humidity: 90% (non condensing)
Compliance	FCC (SDoC) Class B, CE (DoC) Class B, RCM Class B, VCCI Class B
Warranty	1-Year Manufacturer's Limited Warranty
